Home >> Mercury >> 1989 >> Merkur Scorpio V6-179 2.9L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

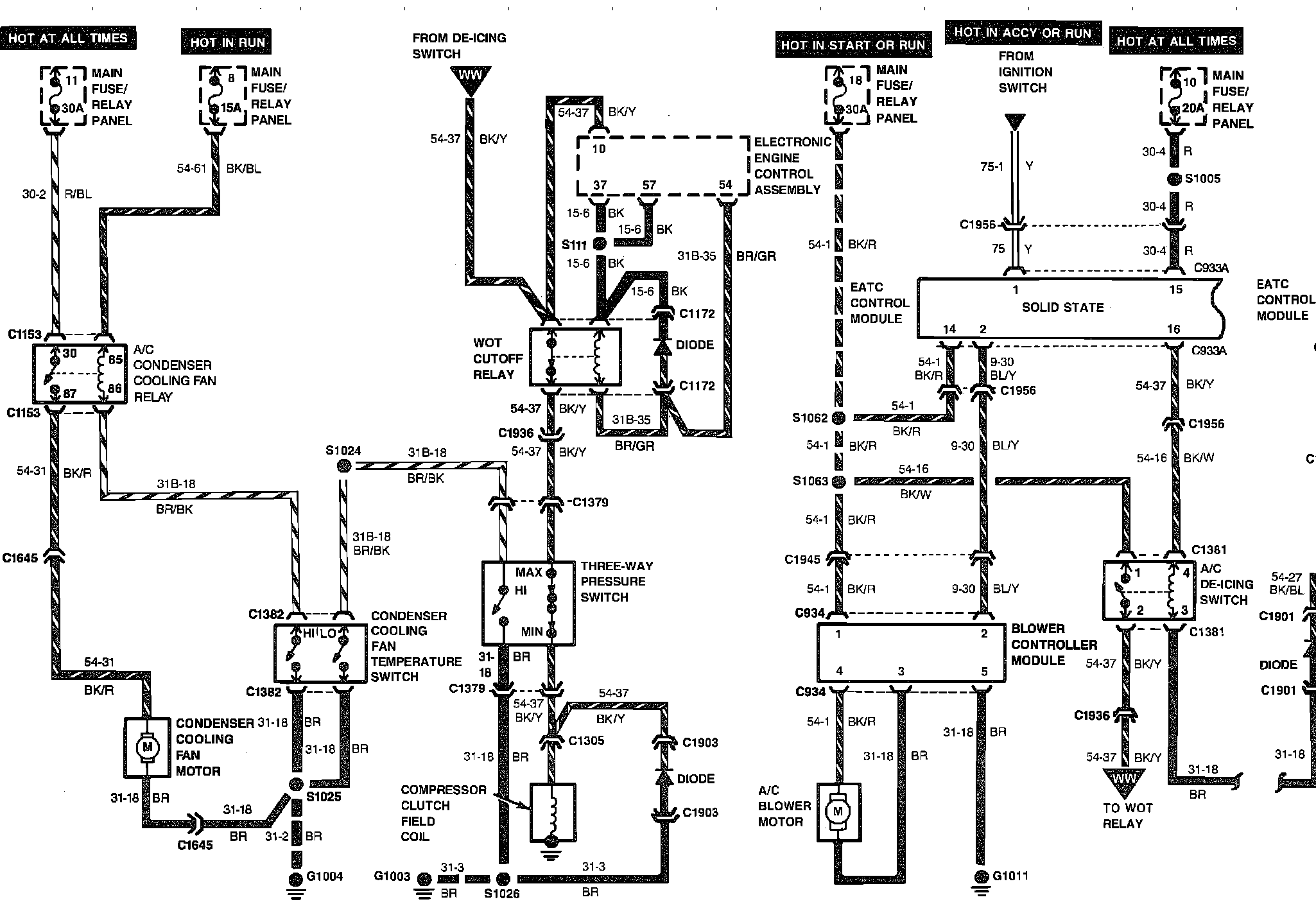

�F(Air Conditioning, Cooling & Heater Wiring Circuit:
