ABS Main Relay: Locations

Relay Location

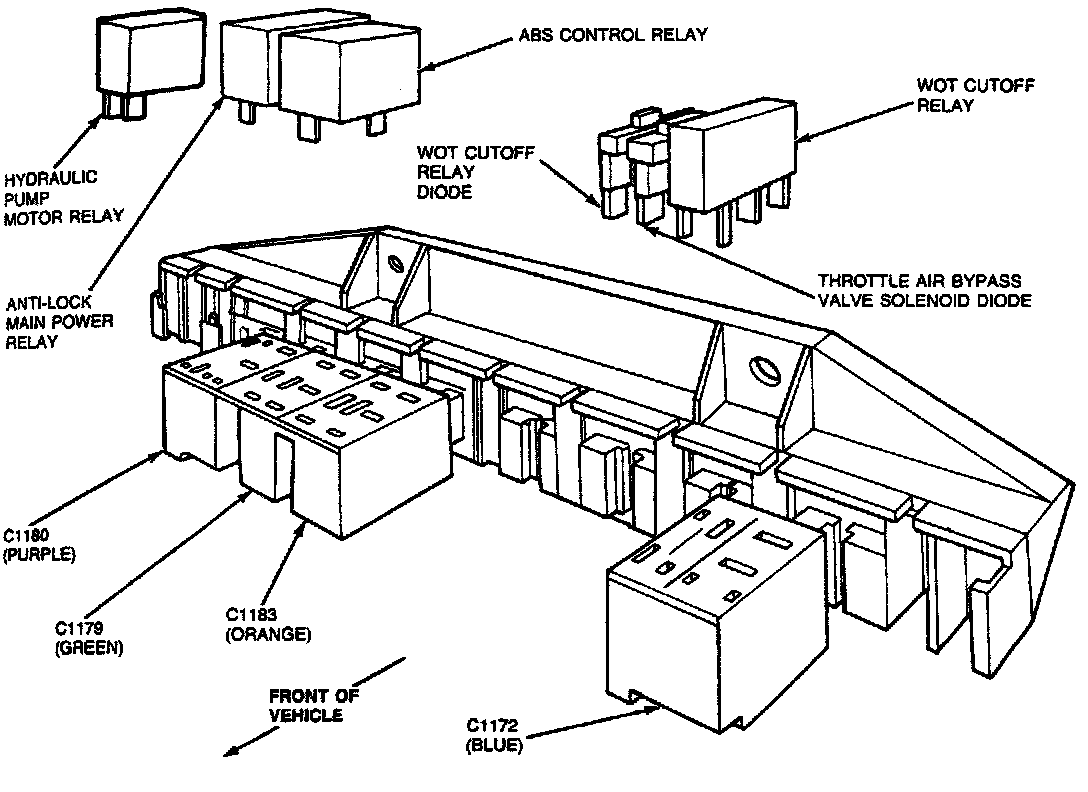

All the ABS relays are located under the dash panel in the auxiliary relay panel.

There are three in-line diodes in the ABS circuitry including:

^ C19O0-Located behind the instrument cluster.

^ C1911-Bottom of LH front strut tower.

^ C1914-Under instrument panel to the left of the auxiliary warning module.

Both the main power relay and pump motor relay circuits are protected by two fuses located in the glove compartment. A 20-amp fuse protects the module main relay circuit and a 30-amp fuse protects the motor circuit.
