A/T - A4LD Kickdown Solenoid Adjustment Procedure

90ford45
^ SHOP MANUAL - 1988 - PAGE 17-02-1 AND 17-01-2 - A4LD TRANSMISSION KICKDOWN SOLENOID ADJUSTMENT PROCEDURE REVISED

^ SHOP MANUAL - 1989 - PAGE 17-02-1 AND 17-01-2 - A4LD TRANSMISSION KICKDOWN SOLENOID ADJUSTMENT PROCEDURE REVISED
Article No. 90-25B-24









MERKUR: 1988-89 SCORPIO

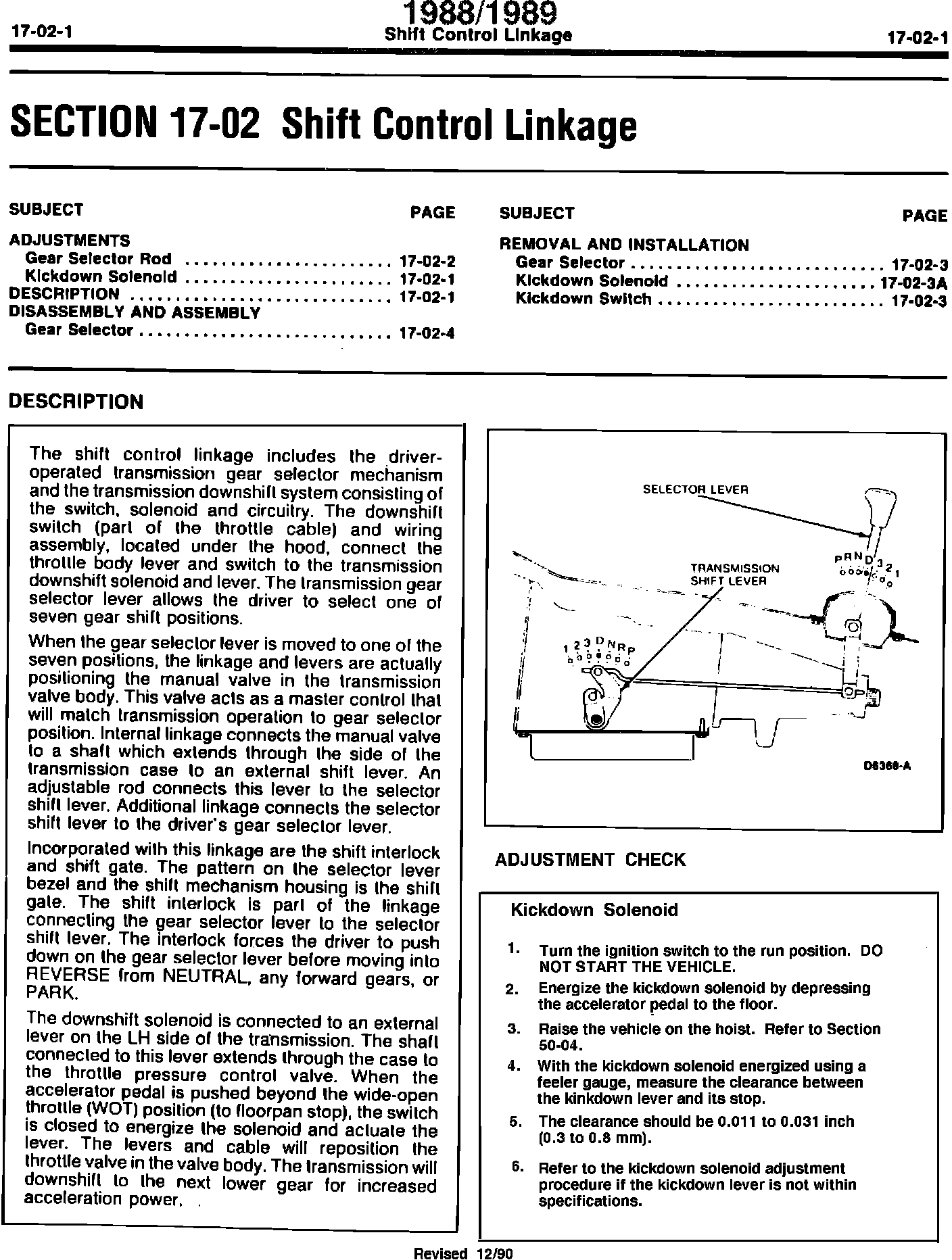

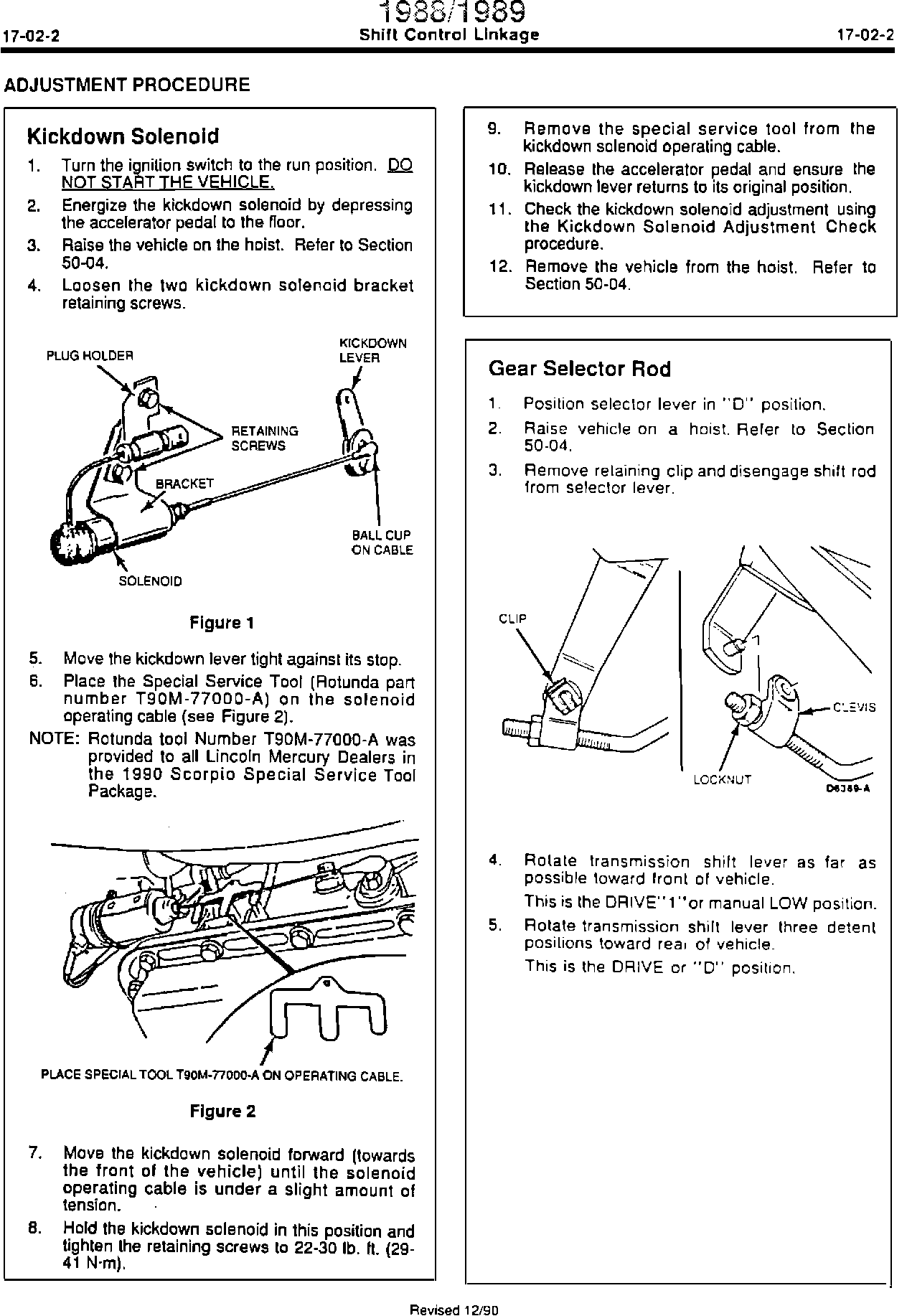

ISSUE: The A4LD Transmission Kickdown Solenoid Adjustment Procedure on Pages 17-02-01 and 17-02-2 of the 1988 and 1989 Scorpio Shop Manuals has been revised to include a special Rotunda tool used for accurate adjustment.

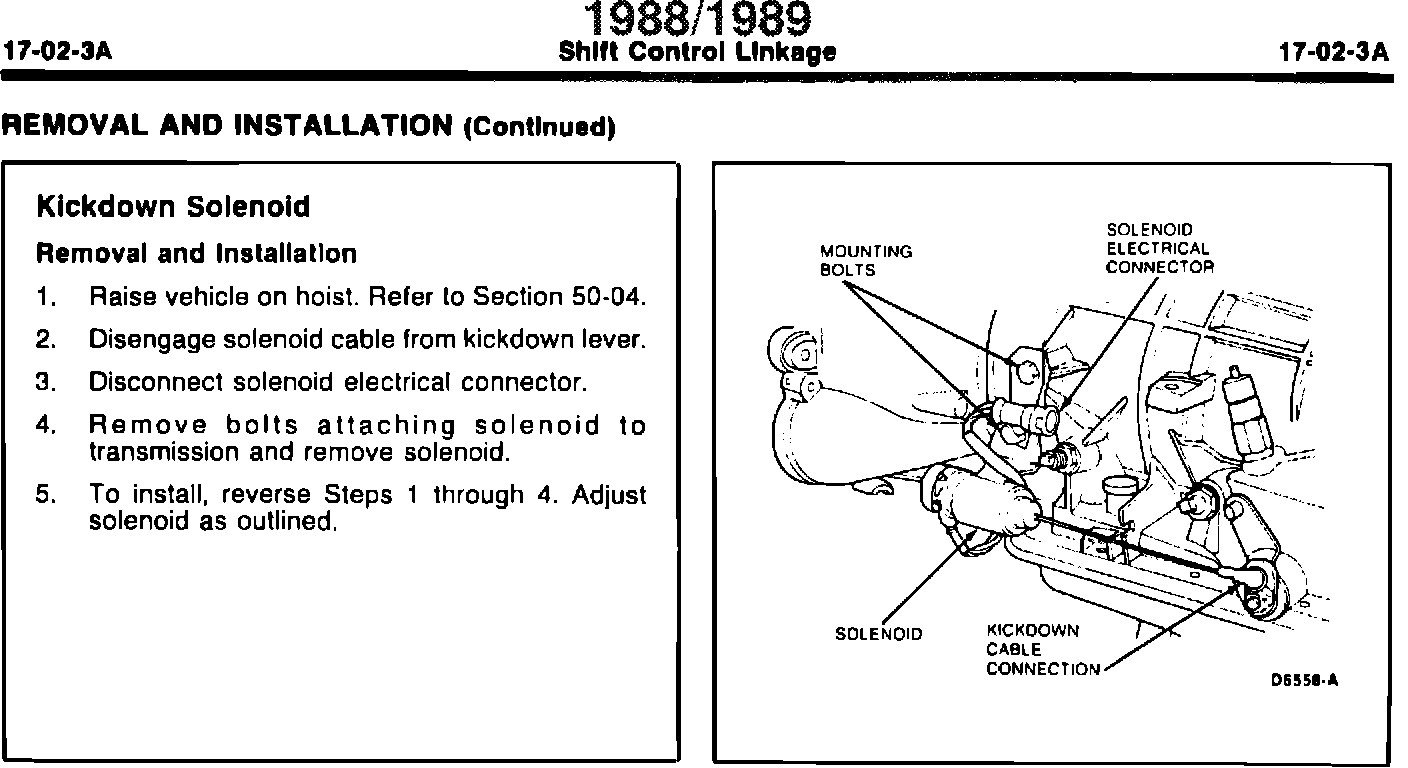

ACTION: Refer to the pages following this TSB article for the revised procedure.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMAIION ONLY
OASIS CODES: 590000
