Reading Diagnostic Trouble Codes
>>
Quick Tests
>>
3.0C - Passenger Car Service Code Chart (KOEO)
3.0C - Passenger Car Service Code Chart (KOEO)

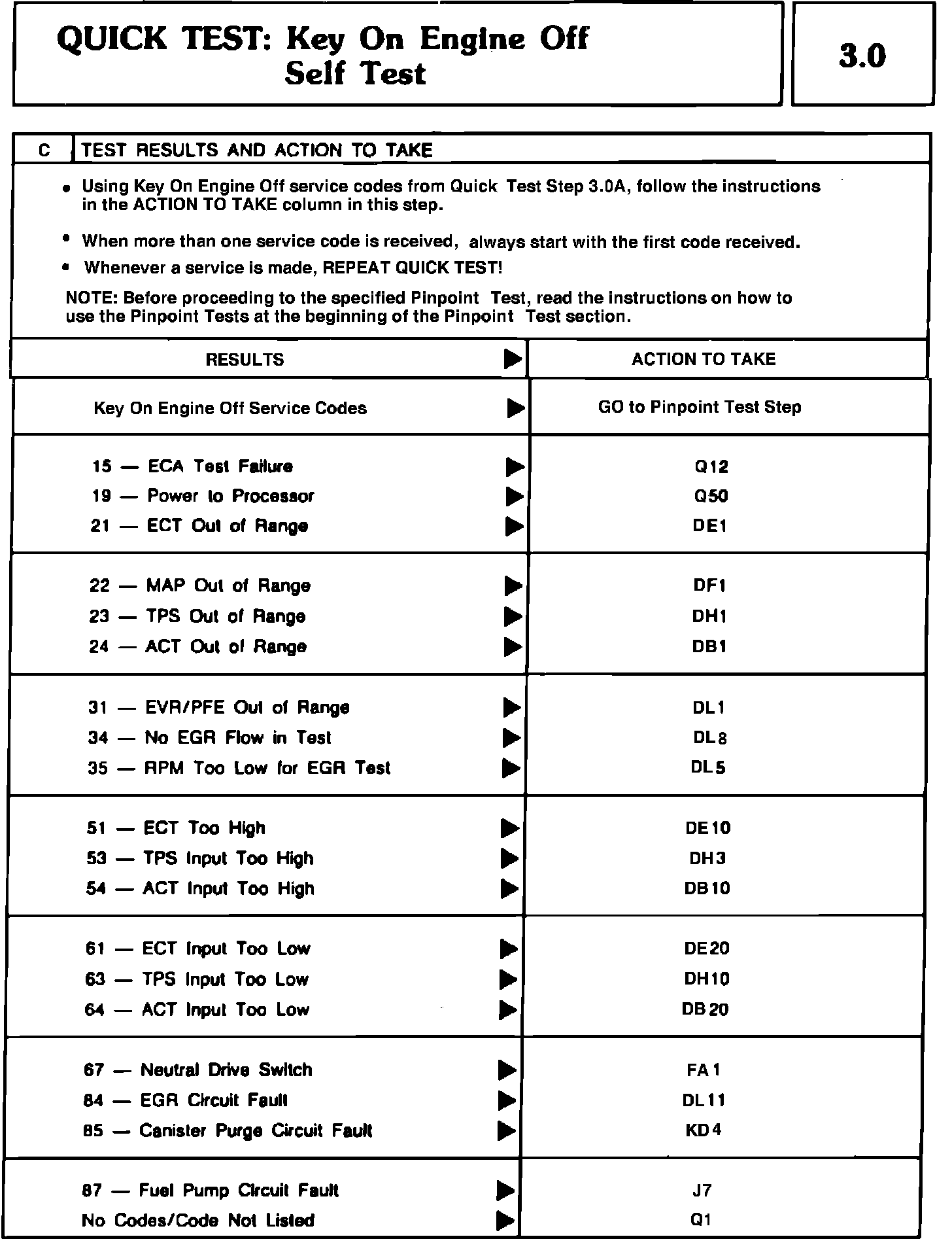

Fig. 31b Quick test. Key On, Engine Off Self-Test (Part 2 of 2), Scorpio:
