Vehicle Speed Sensor: Service and Repair

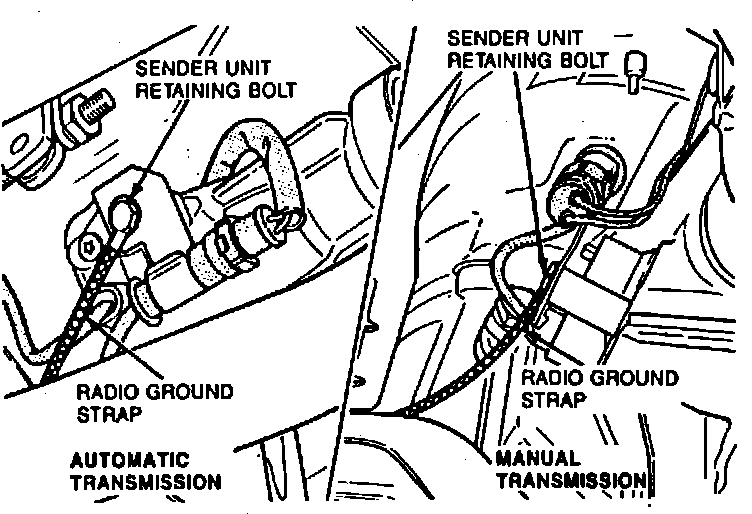

Fig. 70 Speed Sender Removal:

1. Place drain pan under transmission at sender unit, then disconnect sender unit electrical connector.
2. Remove sender unit retaining bolt, then the sending unit, Fig. 70.
3. Reverse procedure to install.
4. Check transmission fluid level and add as necessary.
