Lamp Control Module: Locations

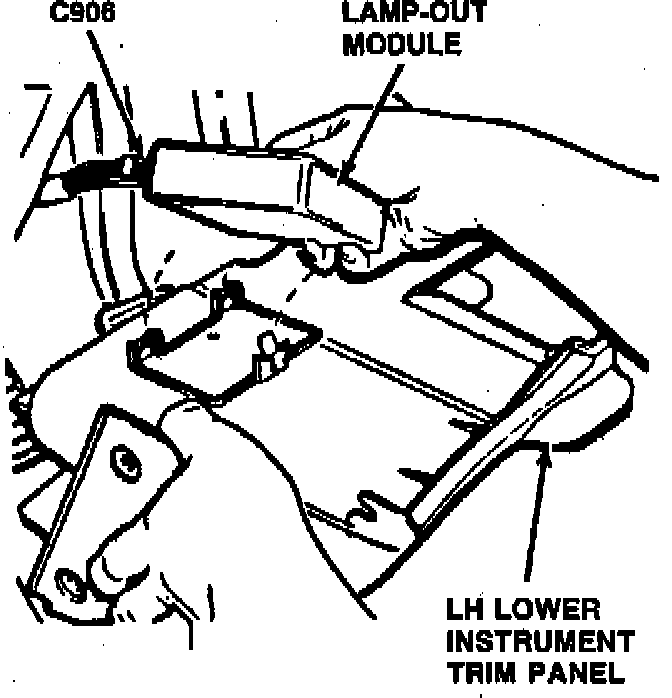

Lower LH Side Instrument Trim Panel.:




Behind Lower LH Instrument Trim Panel

Applicable to: Scorpio
