Home >> Mercury >> 1989 >> Merkur Scorpio V6-179 2.9L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Relays and Modules - Instrument Panel >> Fuel Distance/Mileage Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

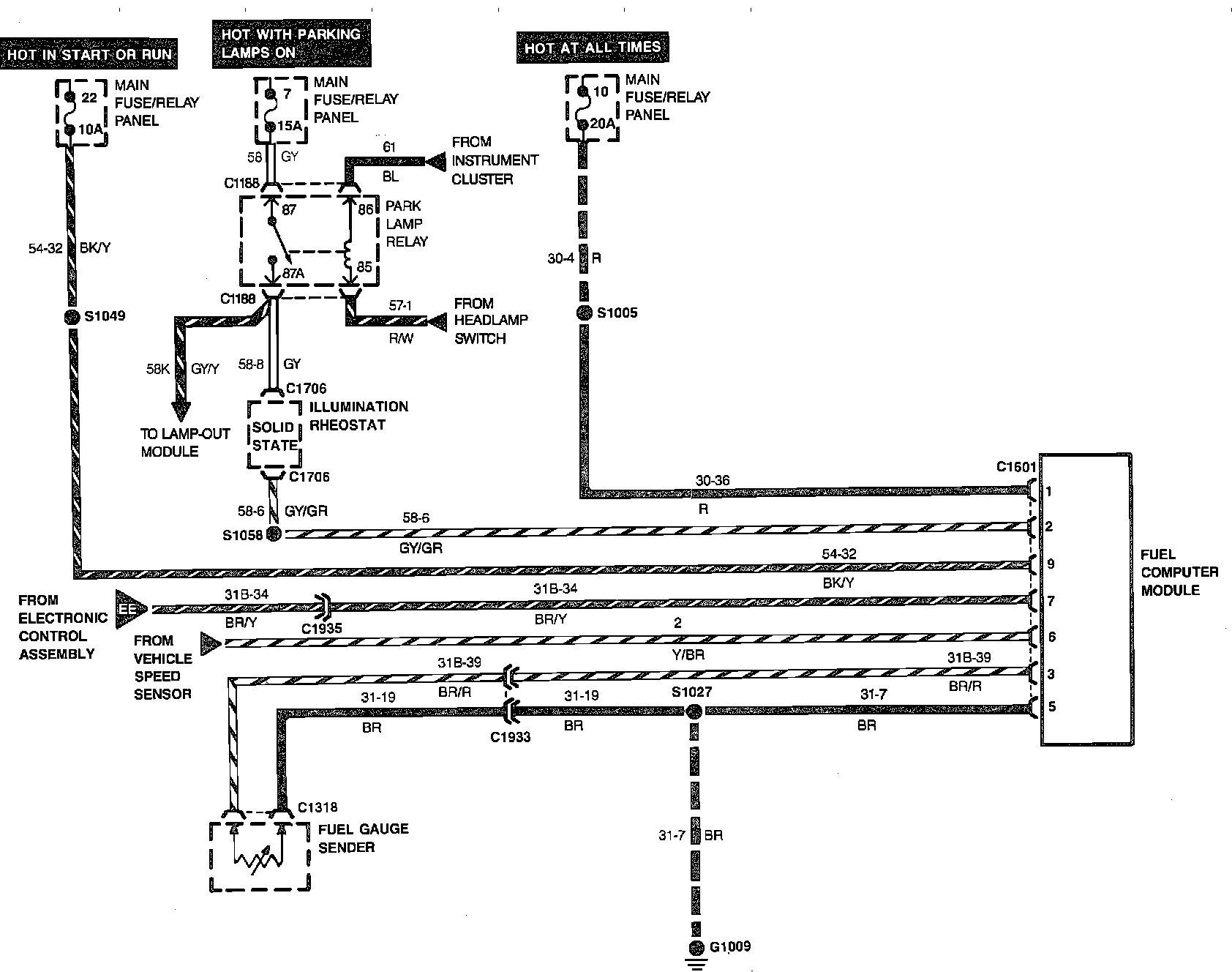

Fuel Computer Wiring Circuit:
