Merkur Scorpio V6-179 2.9L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
B: Cruise Disengages Slowly
>>
Tests B5 - B6
Tests B5 - B6

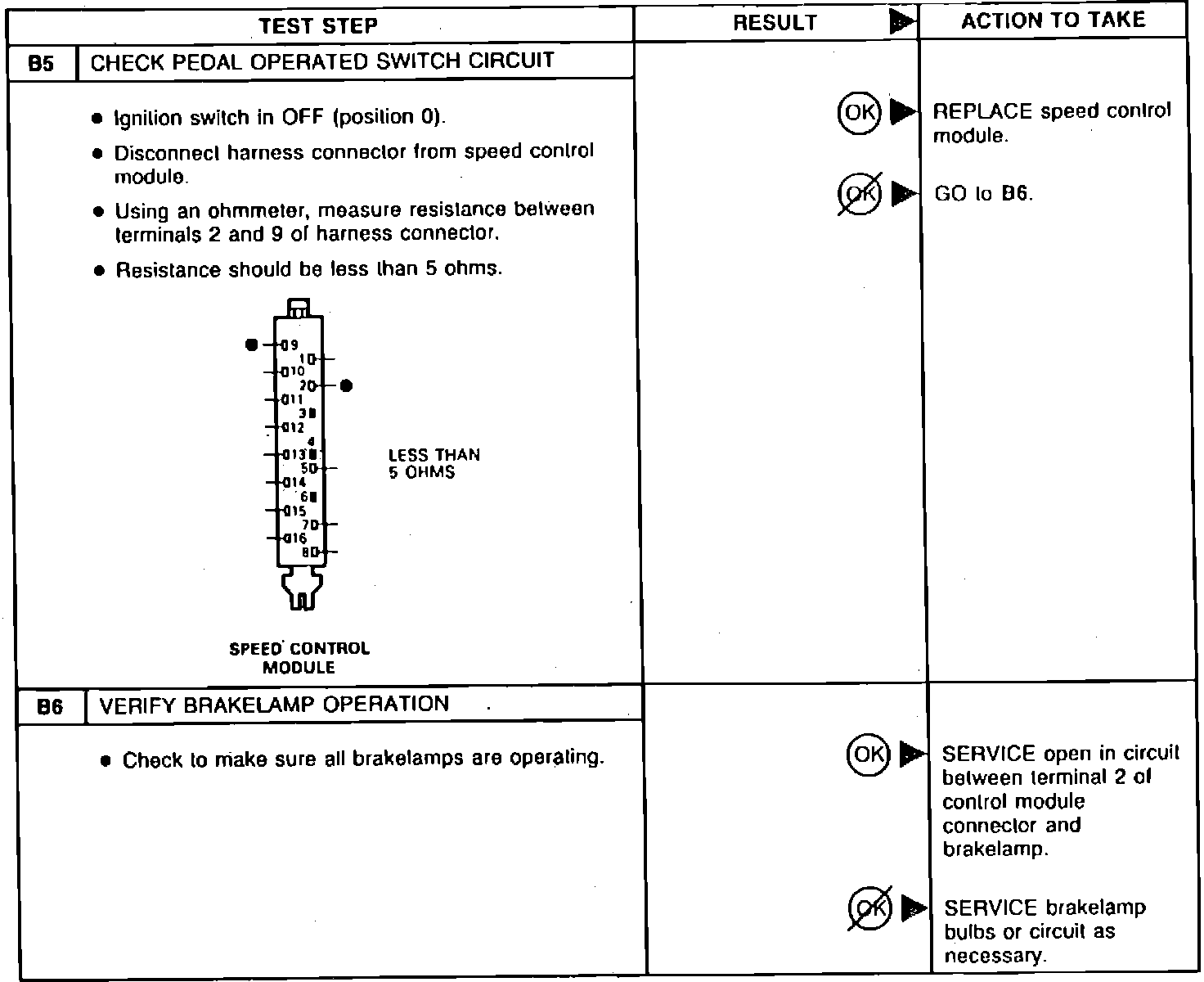

Fig. 55 Pinpoint Test B, Speed Control Disengages Slowly When Clutch Or Brake Is Applied (Part 2 Of 2):
