Home >> Mercury >> 1989 >> Merkur Scorpio V6-179 2.9L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> A: Speed Control Inoperative >> A1-A3

A1-A3

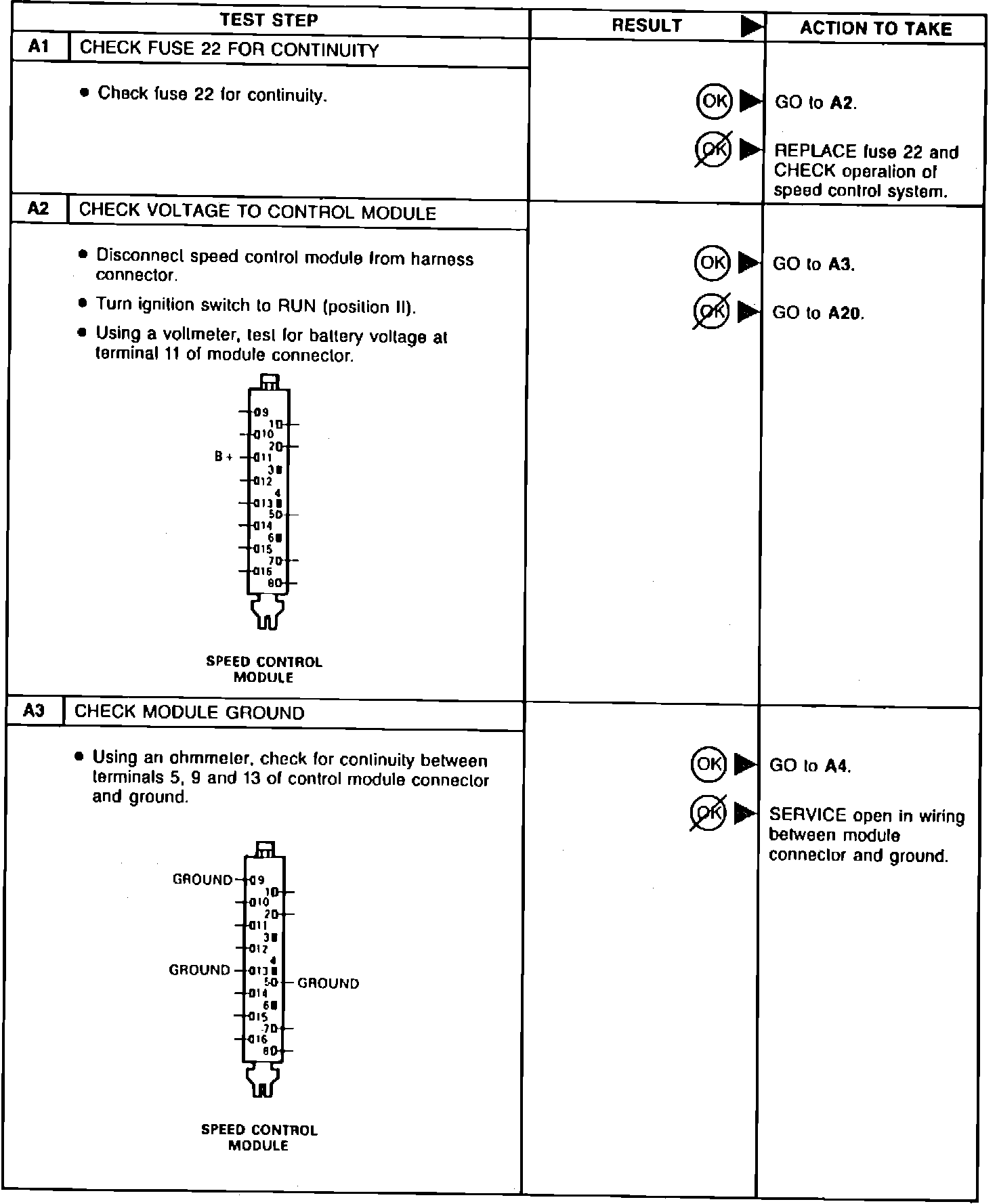

Fig. 54 Pinpoint Test A, Speed Control Inoperative (Part 1 Of 13):
