A Warning Indicator ON/Brake Warning OFF)
>>

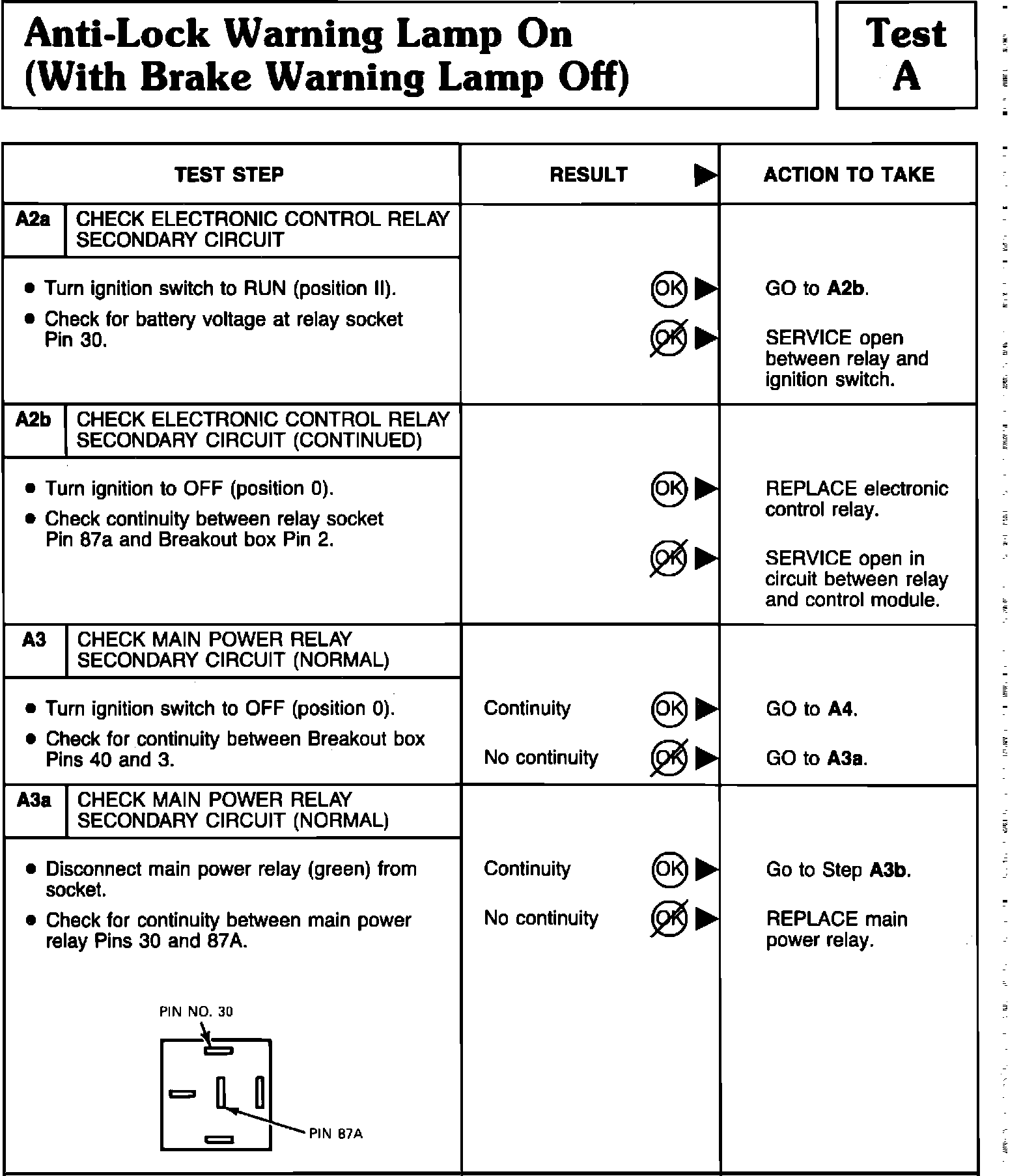

A2B Check Electronic Control Relay Secondary Circuit (Cont.)
A2B Check Electronic Control Relay Secondary Circuit (Cont.)
