Home >> Mercury >> 1989 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Main Lamp Switch

Main Lamp Switch

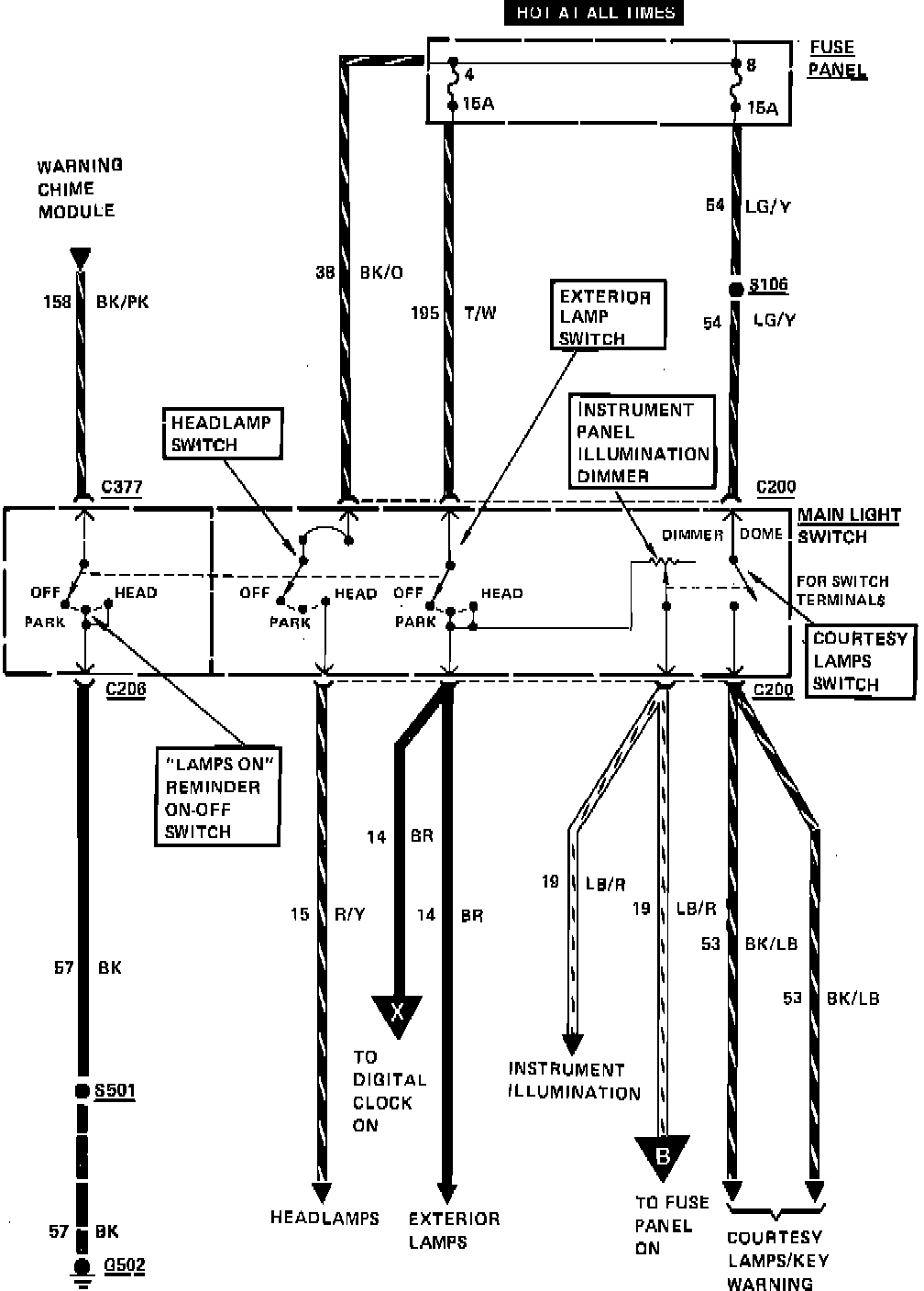

Charge & Power Distribution. Less Automatic Lamps:

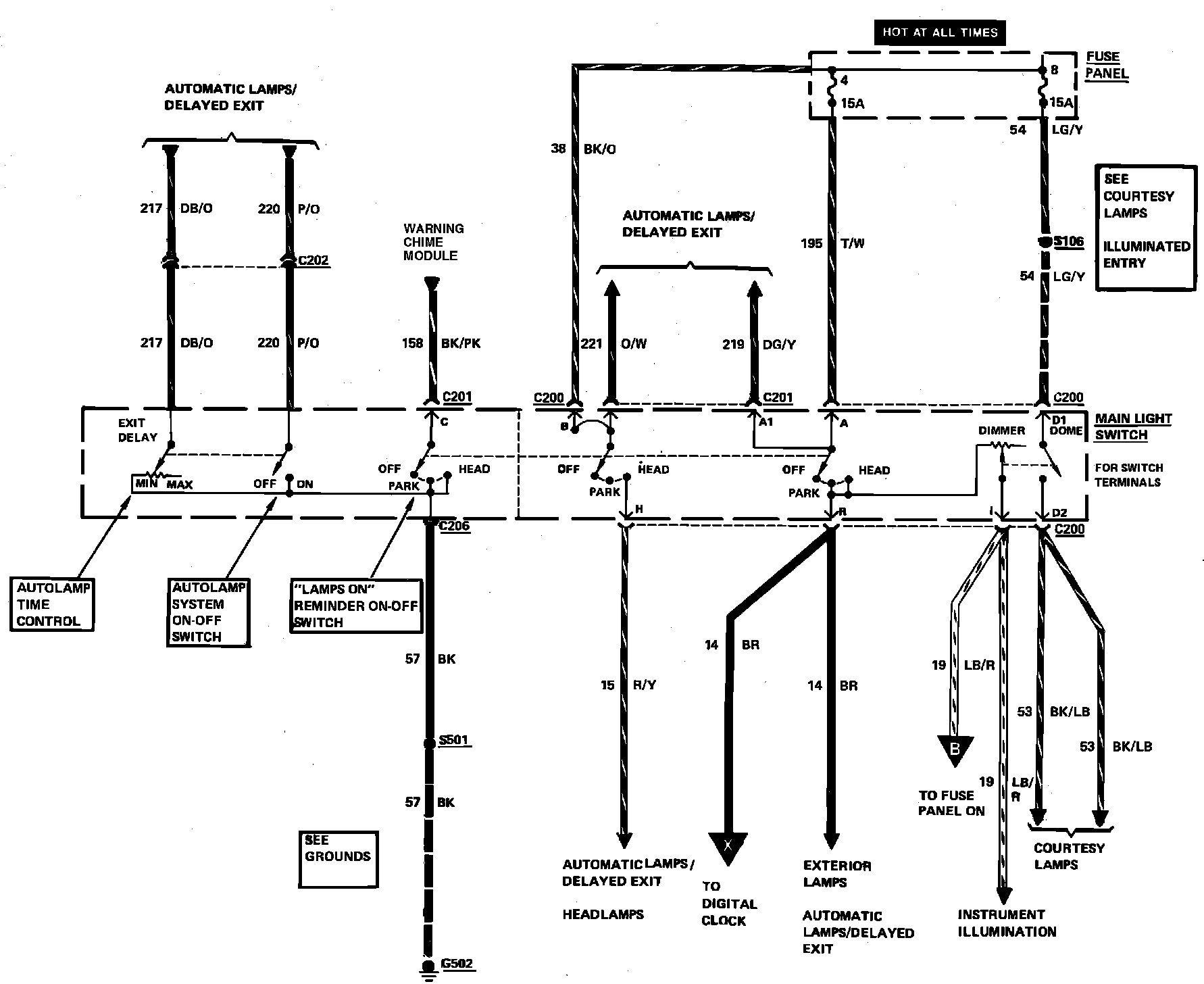

Charge & Power Distribution. With Automatic Lamps:
