Fuse Panel With 100 Amp Alternator
>>
With 100 Amp Police Option
With 100 Amp Police Option

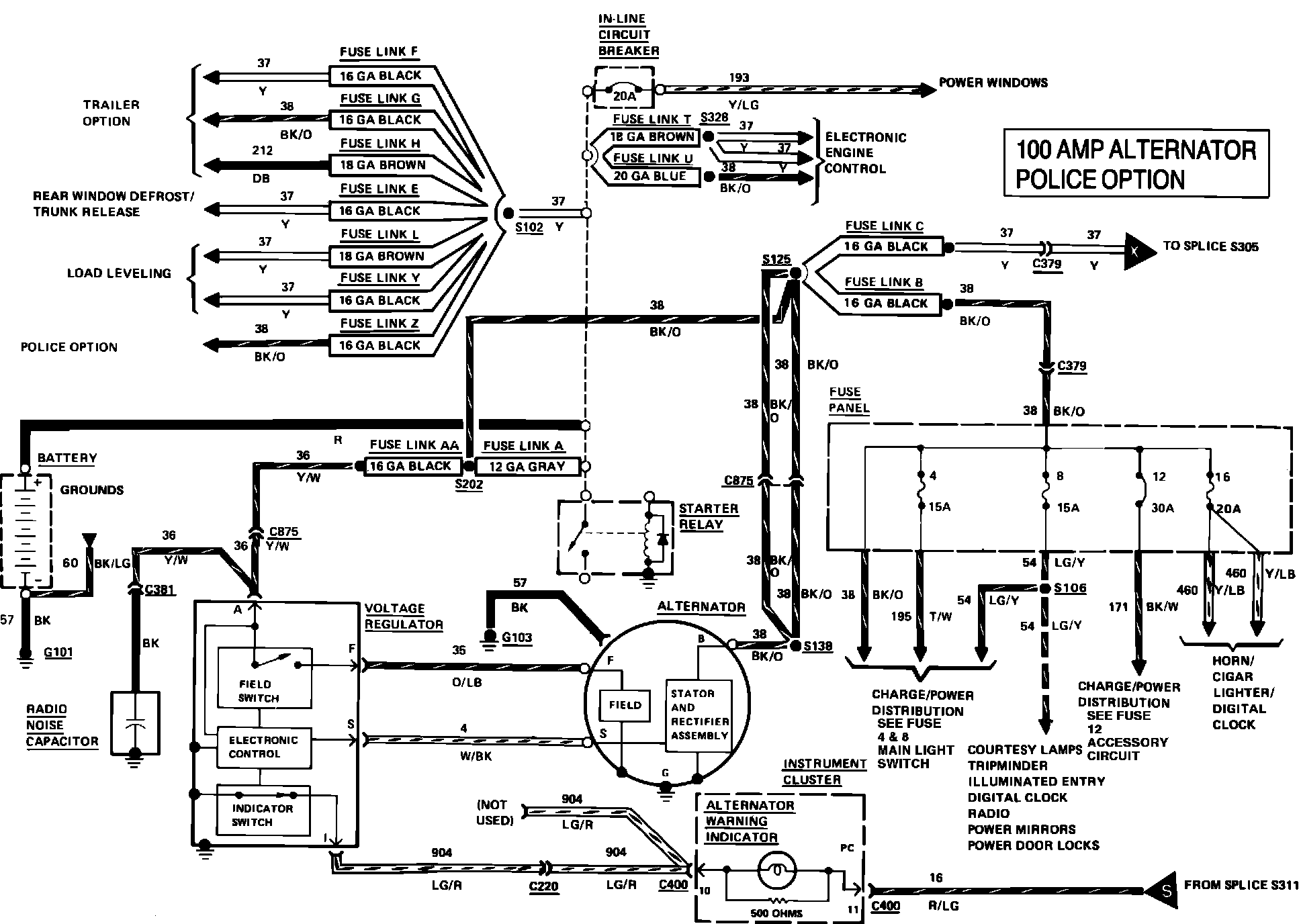

Charge Power Distribution. 100 AMP Police Option:
Charge & Power Distribution. All Alternators:
