With 100 Amp & Heated Windshield

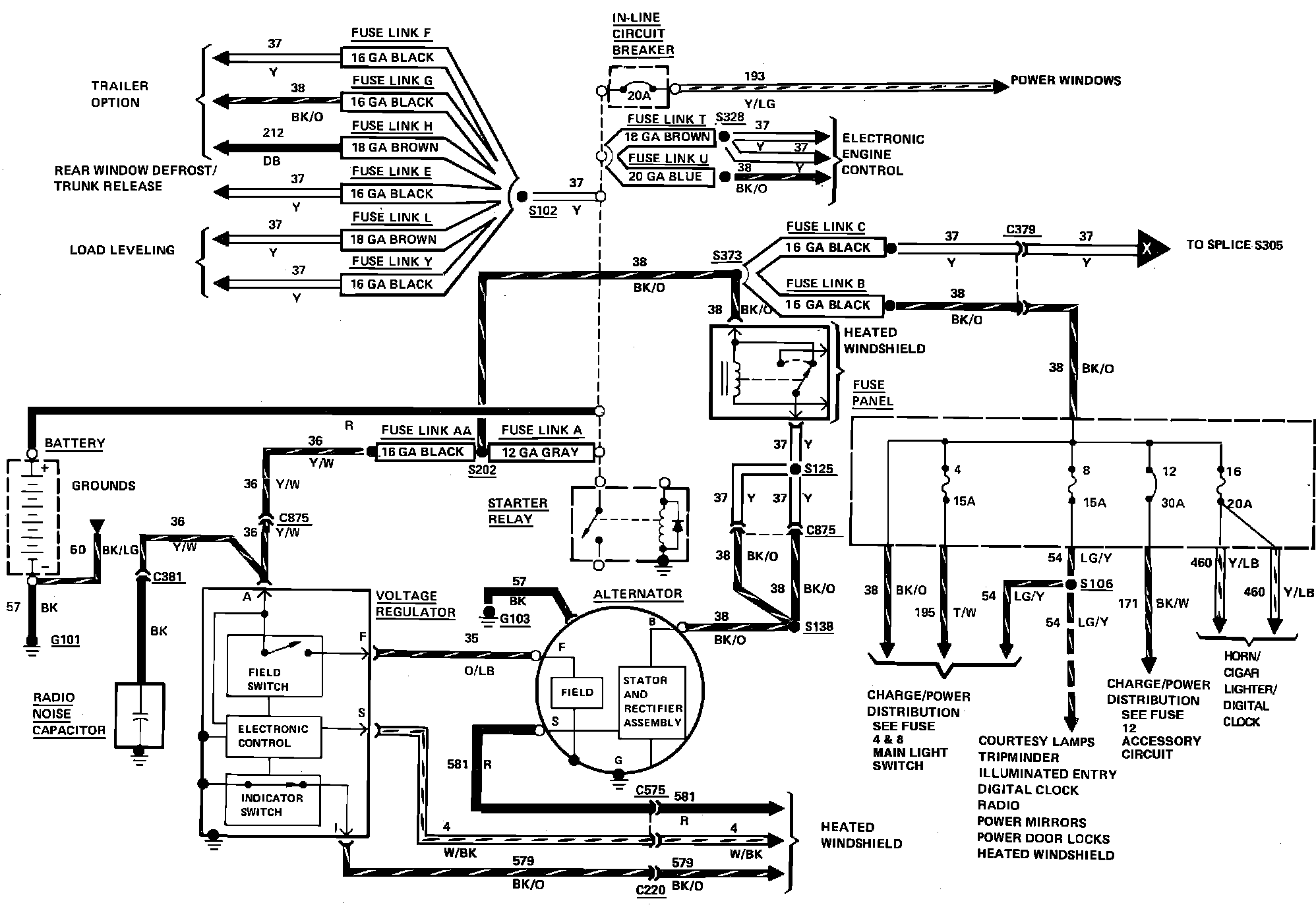

Charge & Power Distribution. With 100 Amp & Heated Windshield:



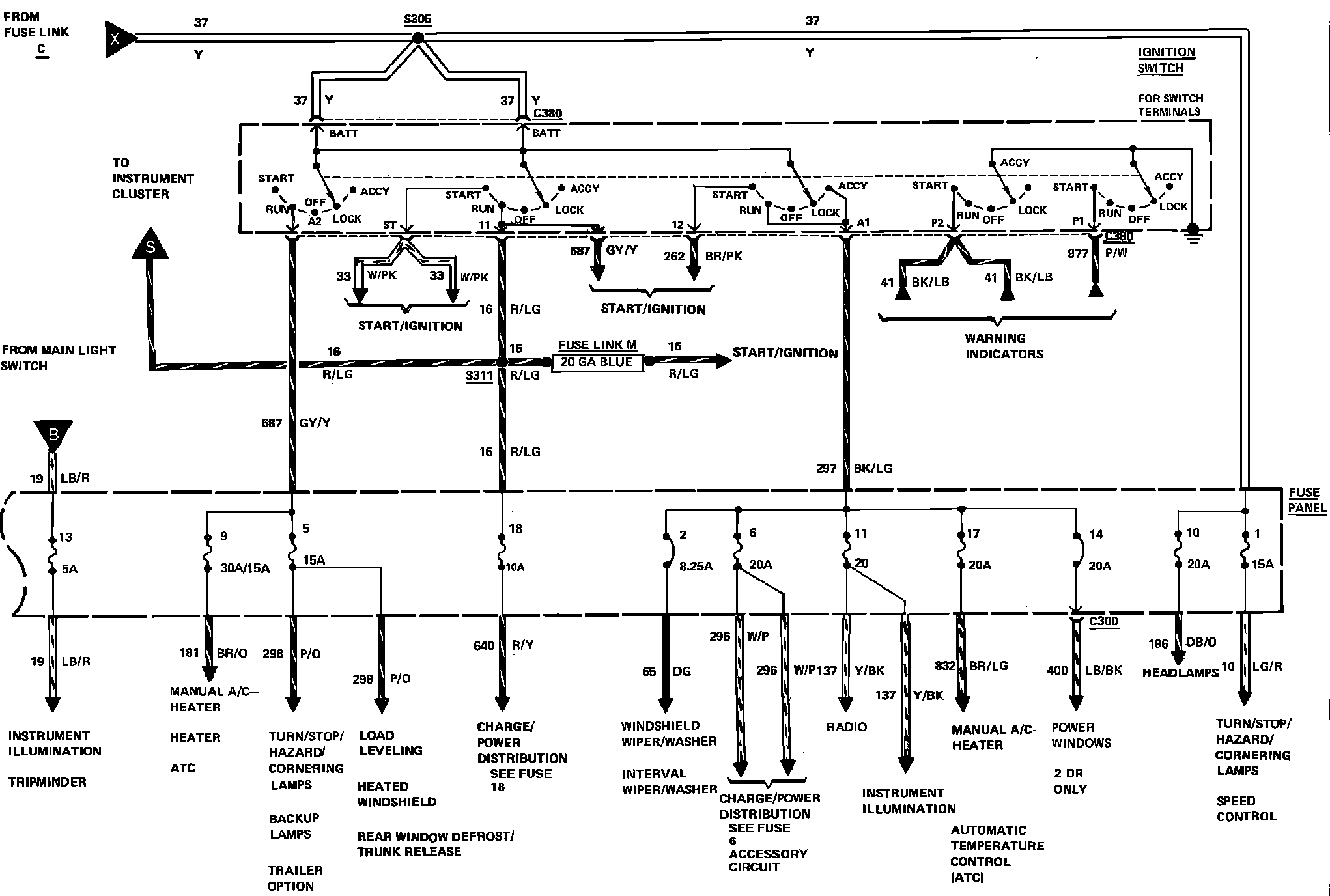

Charge & Power Distribution. All Alternators:
