Home >> Mercury >> 1989 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G502

G502

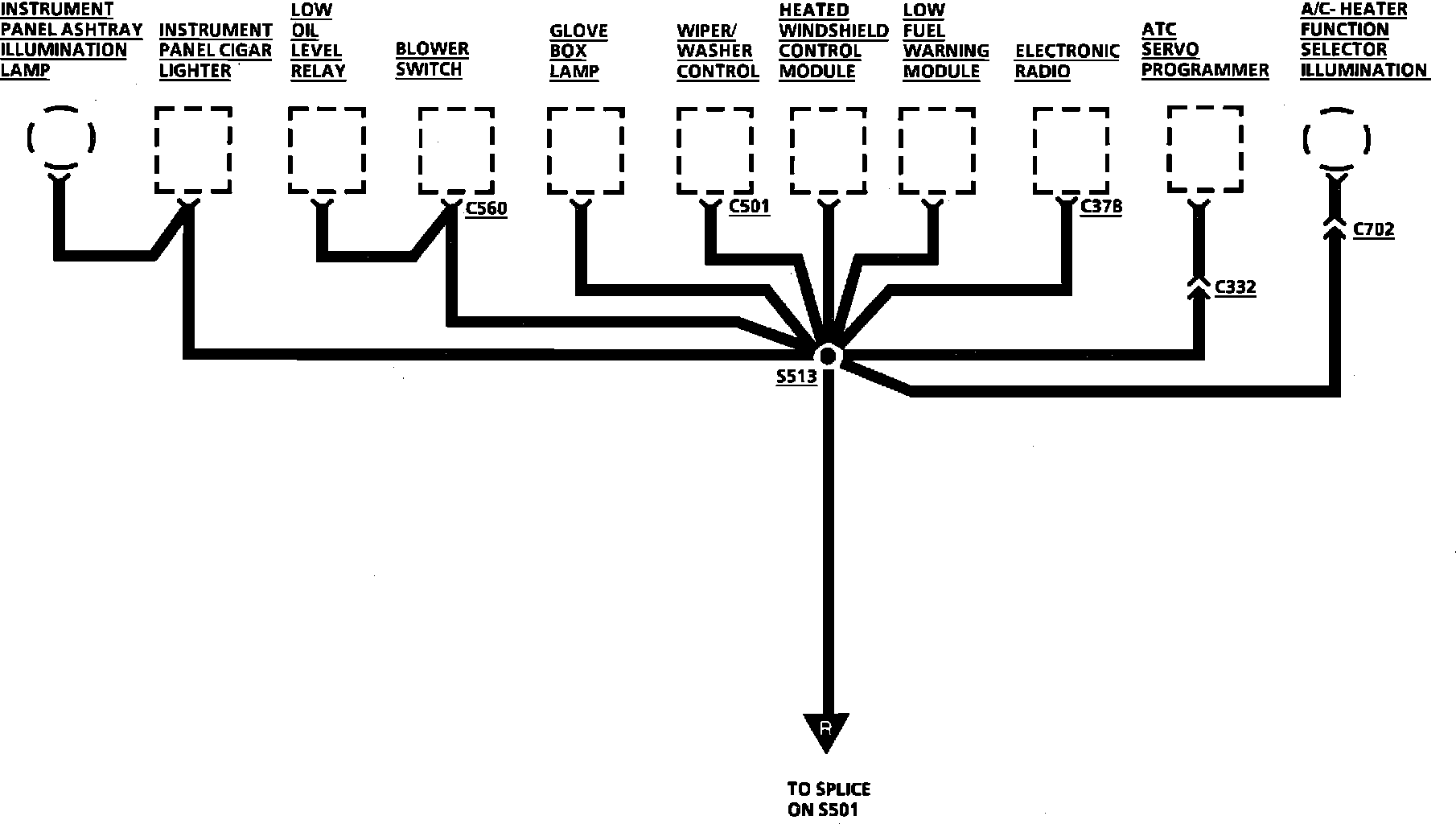

Ground Distribution. G502:

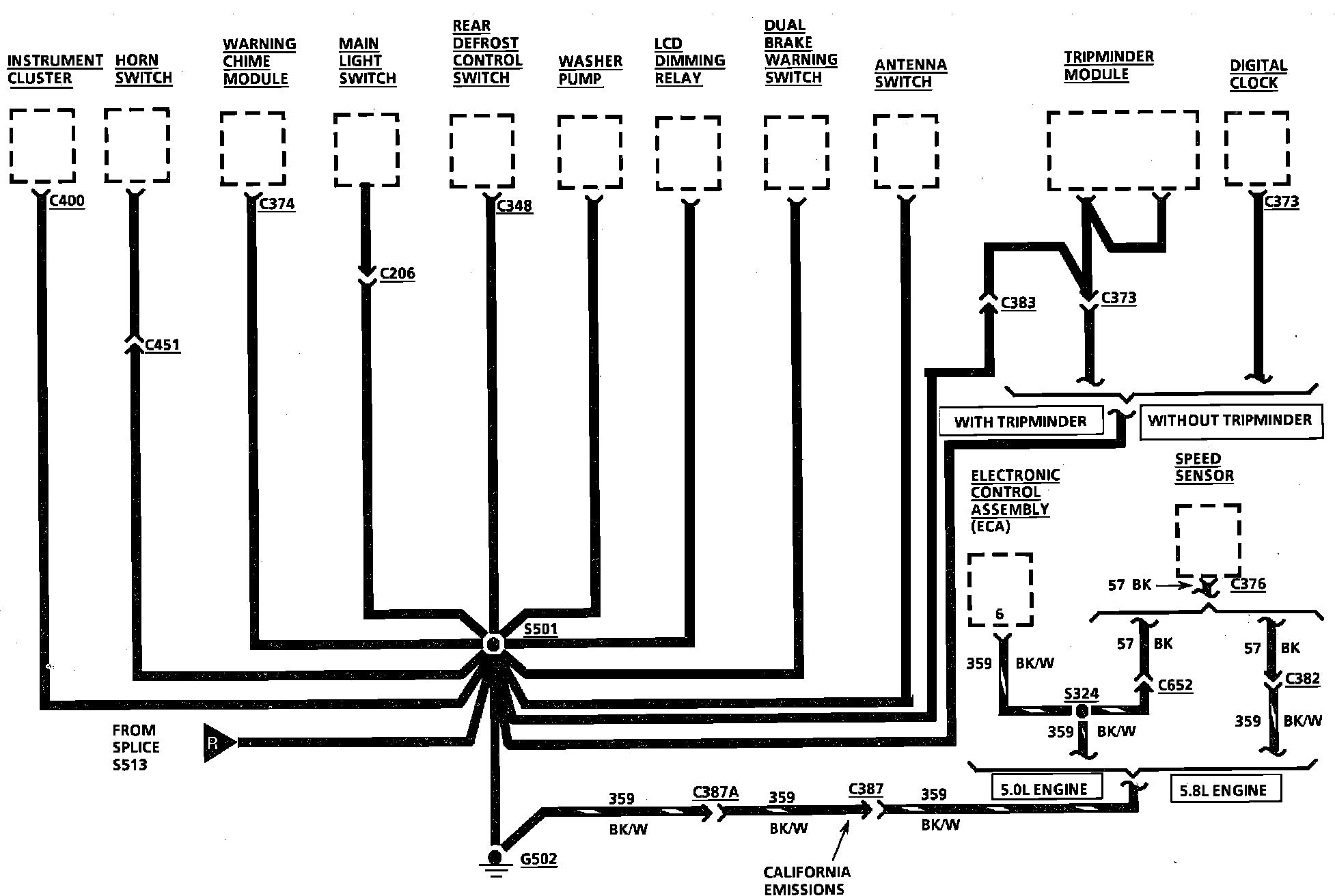

Ground Distribution. G502:
