Cabin Temperature Sensor / Switch: Service and Repair

TEMPERATURE SENSOR

Removal

Instrument Panel Pad Removal And Installation:

1. Remove the instrument panel pad.

Automatic Temperature Control Sensor Removal:

2. Remove the two mounting screws from the sensor assembly.
3. Remove the control cable housing-to-sensor attaching screw.
4. Disconnect the cable end loop from the lever arm and remove the cable from the sensor assembly.

NOTE: Secure the control cable with tape or service wire to prevent it from falling from sight behind the instrument panel.

5. Disconnect the sensor vacuum harness from the servo vacuum harness.
6. Remove the ambient air hose from the end of the sensor assembly by rotating the sensor assembly in a clockwise direction.
7. Remove the sensor assembly from the vehicle.

Installation
1. Connect the ambient air hose to the sensor by turning it in a counterclockwise direction.
2. Route and connect the vacuum harness connector to the jumper line connector and ensure the locking tab is snapped onto jumper line connector.
3. Position the sensor assembly to the screw mounting bosses and install the two mounting screws.

NOTE: Use a mirror to help align the sensor screw holes to the mounting bosses. If necessary, position a trouble lamp on the windshield for additional light. A small amount of body caulk in the end of the rachet socket will help prevent the screws from falling from the socket.

4. Remove the tape or service wire securing the cable and connect the control cable to the lever arm and loosely install the attaching screw.
5. Set the cable calibration.
6. Do not block the sensor aspirator exhaust port with the excess vacuum harness.
7. Check the ATC system for proper operation.

TEMPERATURE SENSOR SEAL

Removal
1. Remove instrument panel pad.

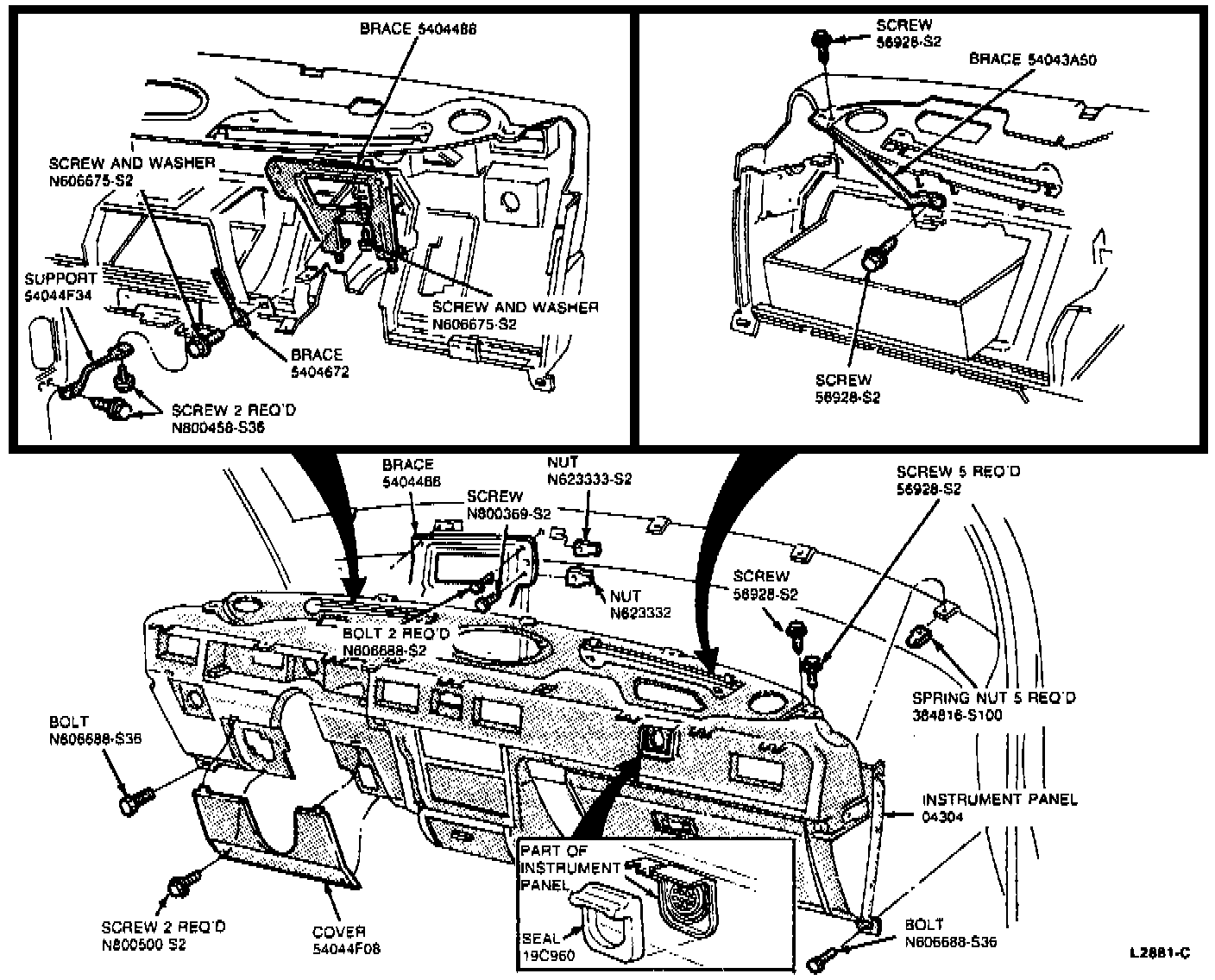

Instrument Panel With Sensor Seal:

2. Loosen the RH trim panel attaching screws and slide the moulded seal off of the brow of the instrument panel.

Installation
1. Install the moulded seal on the brow of the instrument panel. Make certain the seal is properly positioned between the ribs on the instrument panel.
2. Tighten the trim panel screws and install the instrument panel pad.
3. Check the ATC system for proper operation.
