Heating System Without A/C

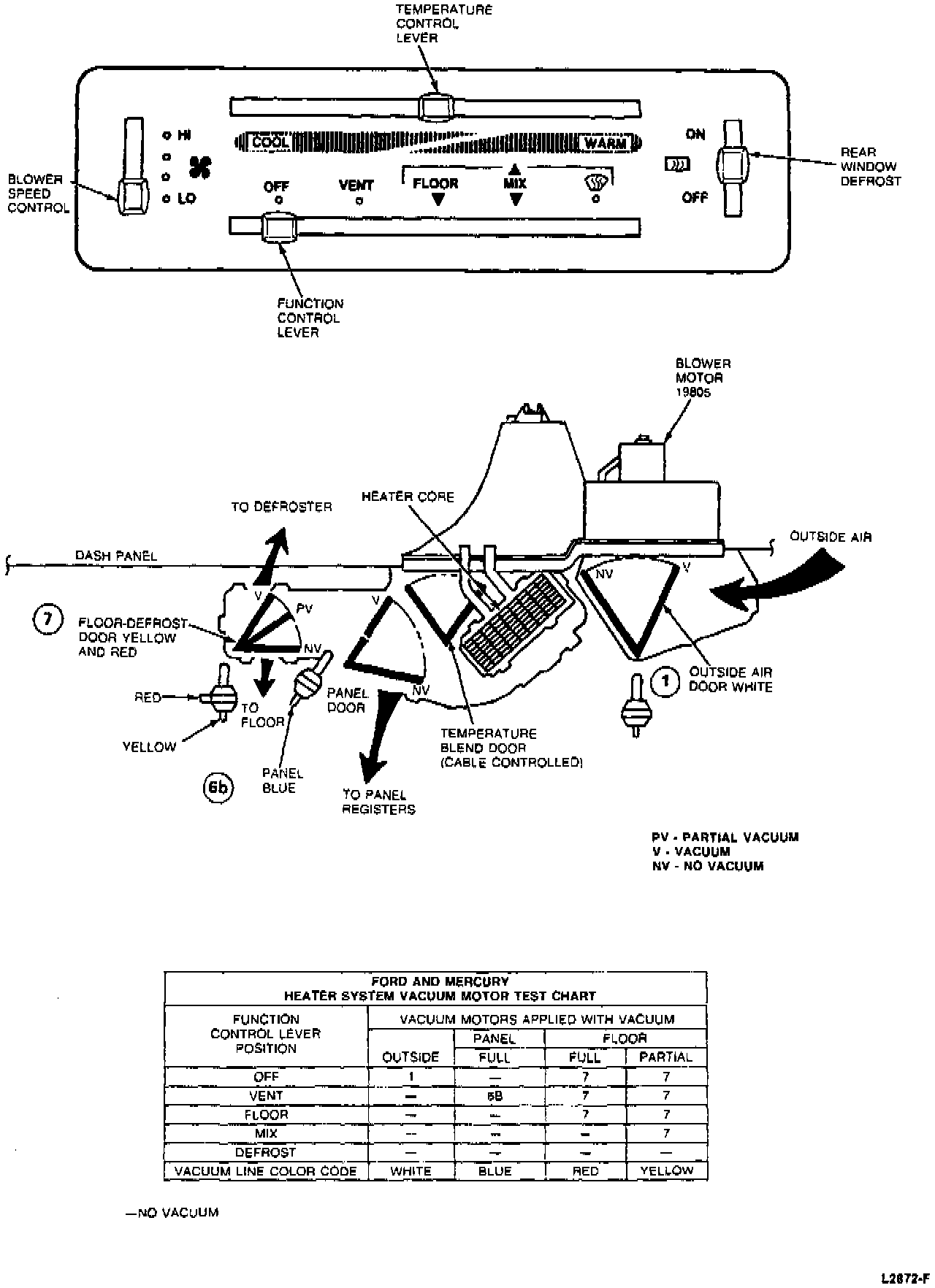

Heater System Vacuum Diagram And Selector Test:

Refer to Heater System Vacuum Diagram and Selector Test illustration to assist in performing vacuum system and function selector valve tests. Also refer to Heater System Vacuum Leak Diagnosis chart. Manual A/C-Heater Vacuum Leak Diagnosis Chart
