Without A/C

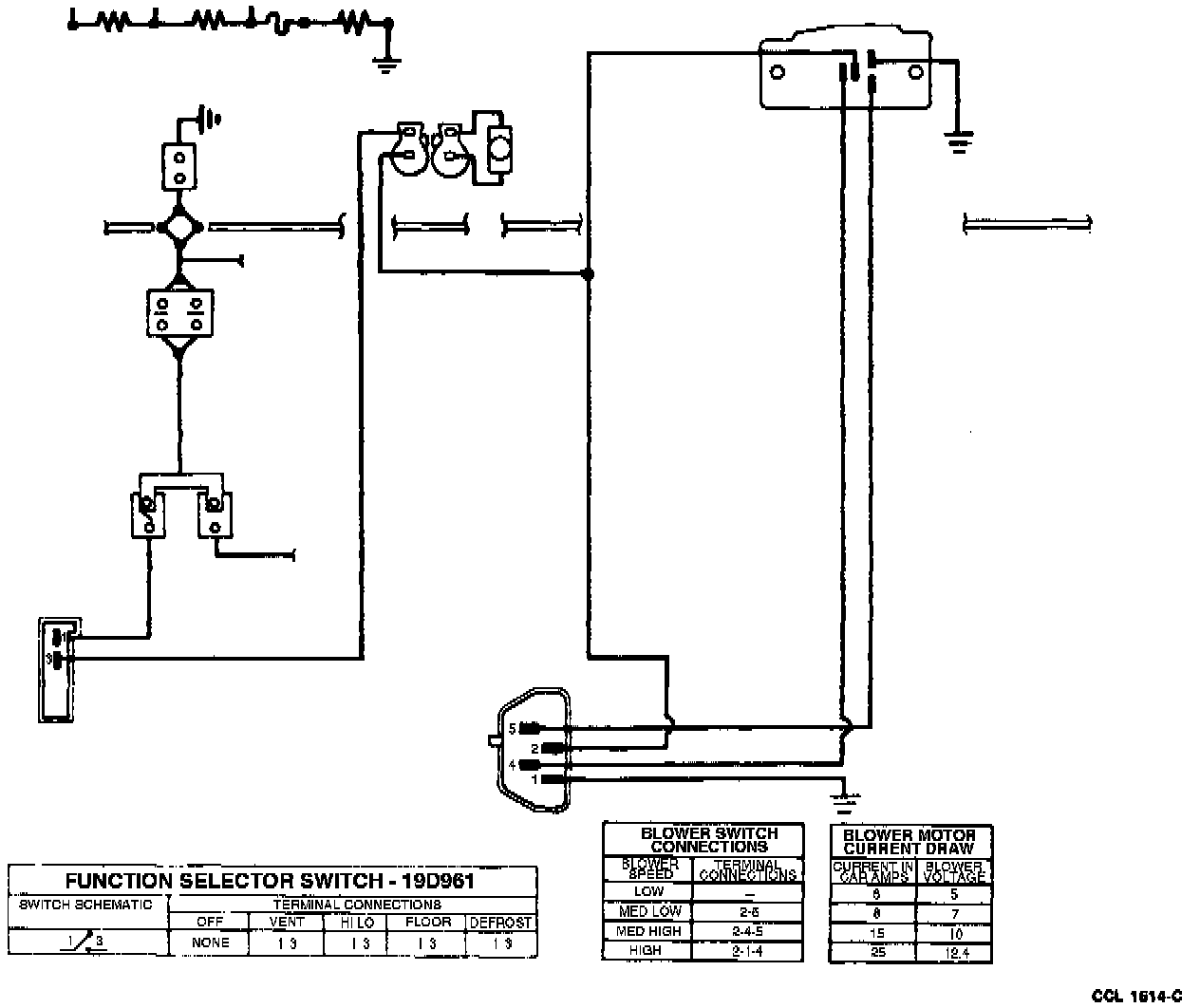

Heater System Electrical Wiring Diagram And Continuity Test:

Refer to the Heater System Electrical Wiring Diagram and Continuity Test image to assist in performing component and system electrical wiring and continuity tests. The blower switch chart also provides blower motor voltage and current information for each blower switch position.

Heater Electrical Wiring Circuit:

Blower Switch Chart/Terminal Location And Testing Procedure:

Use the Electrical Wiring Circuit and the Blower Switch Chart/Terminal Location And Testing Procedure for complete circuit schematics and wire colors.
