Home >> Mercury >> 1989 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension >> System Diagram >> Part 1 of 2

Part 1 of 2

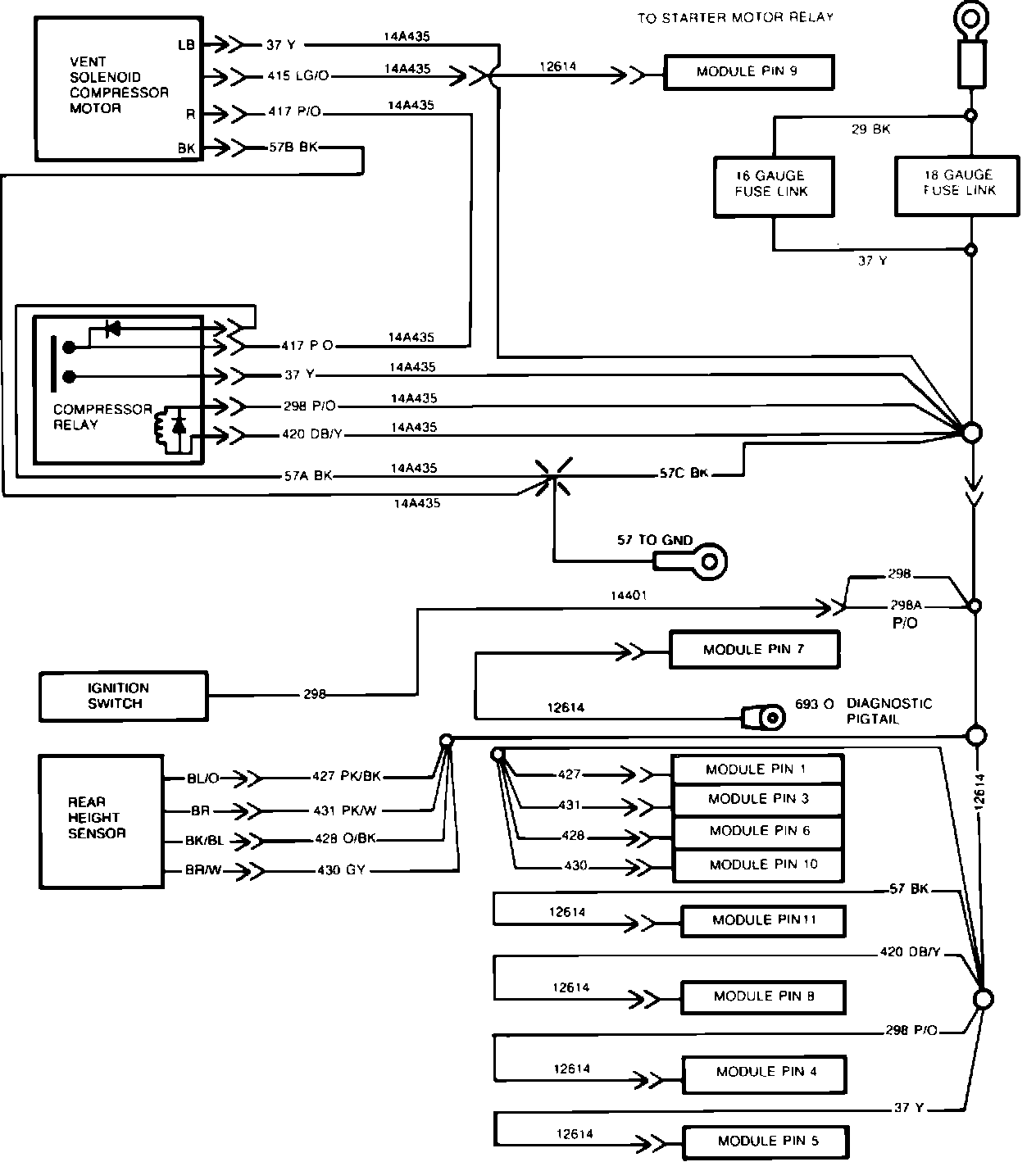

Fig. 2 Automatic Leveling System Wiring Diagram/Connectors (Part 1 Of 2):
