Dashboard / Instrument Panel: Service and Repair

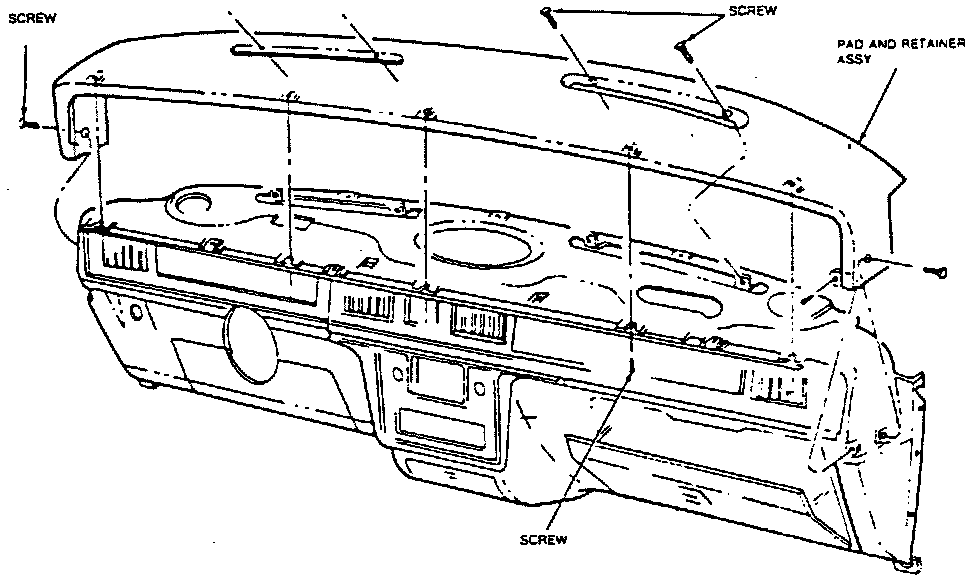

Fig. 23 Removing I/P Top Pad Crown Victoria, Grand Marquis & Town Car.:

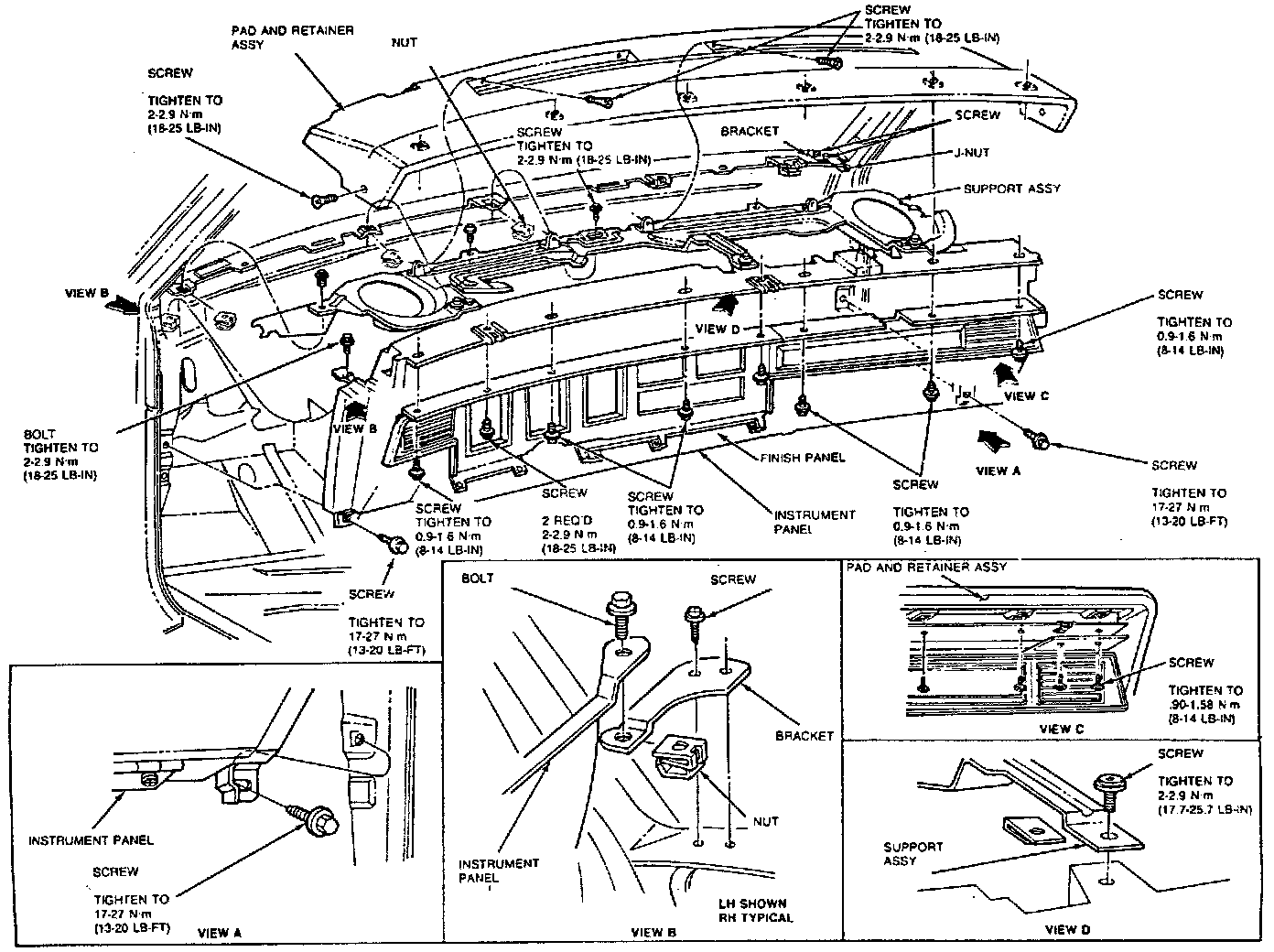

Fig. 24 Instrument Panel Removal, Crown Victoria, Grand Marquis & Town Car.:

For instrument panel removal on these models, refer to Figs. 23 and 24.
