Starter Motor - Service Manual Supplemental Information: Specifications





28-07-9 Starter Motor-Gear Reduced Permanent Magnet

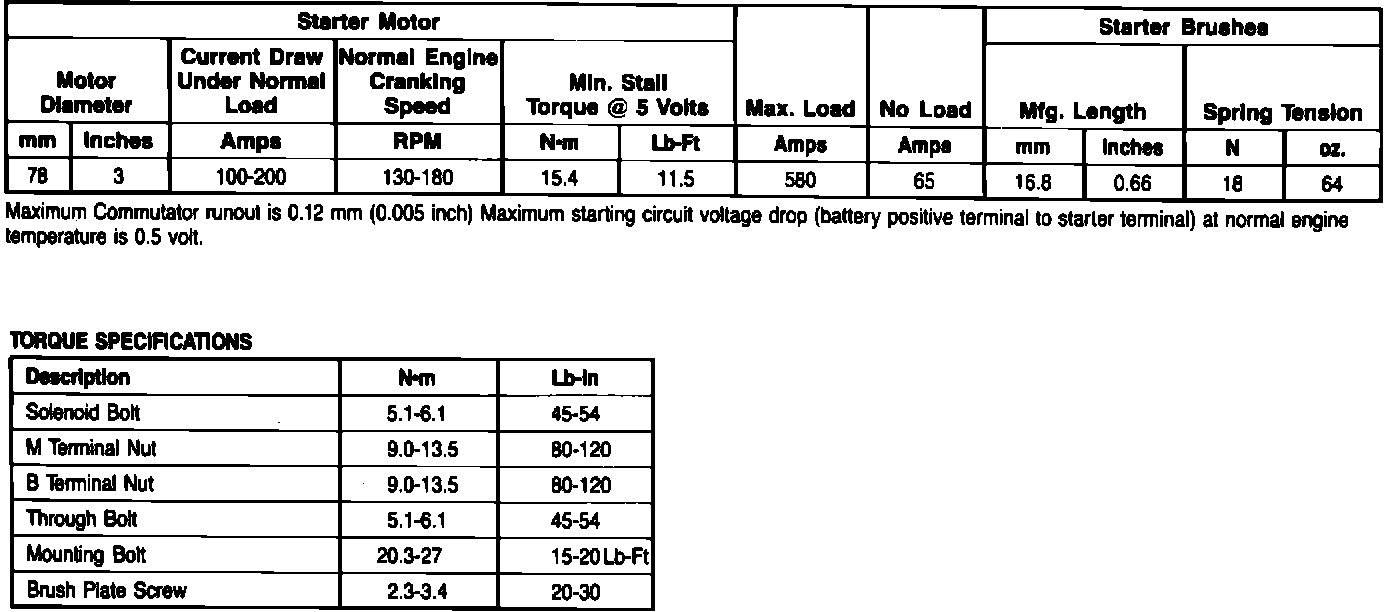

SPECIFICATIONS
