Home >> Mercury >> 1989 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Pinpoint Tests >> Test J: Passive Restraint Module Check

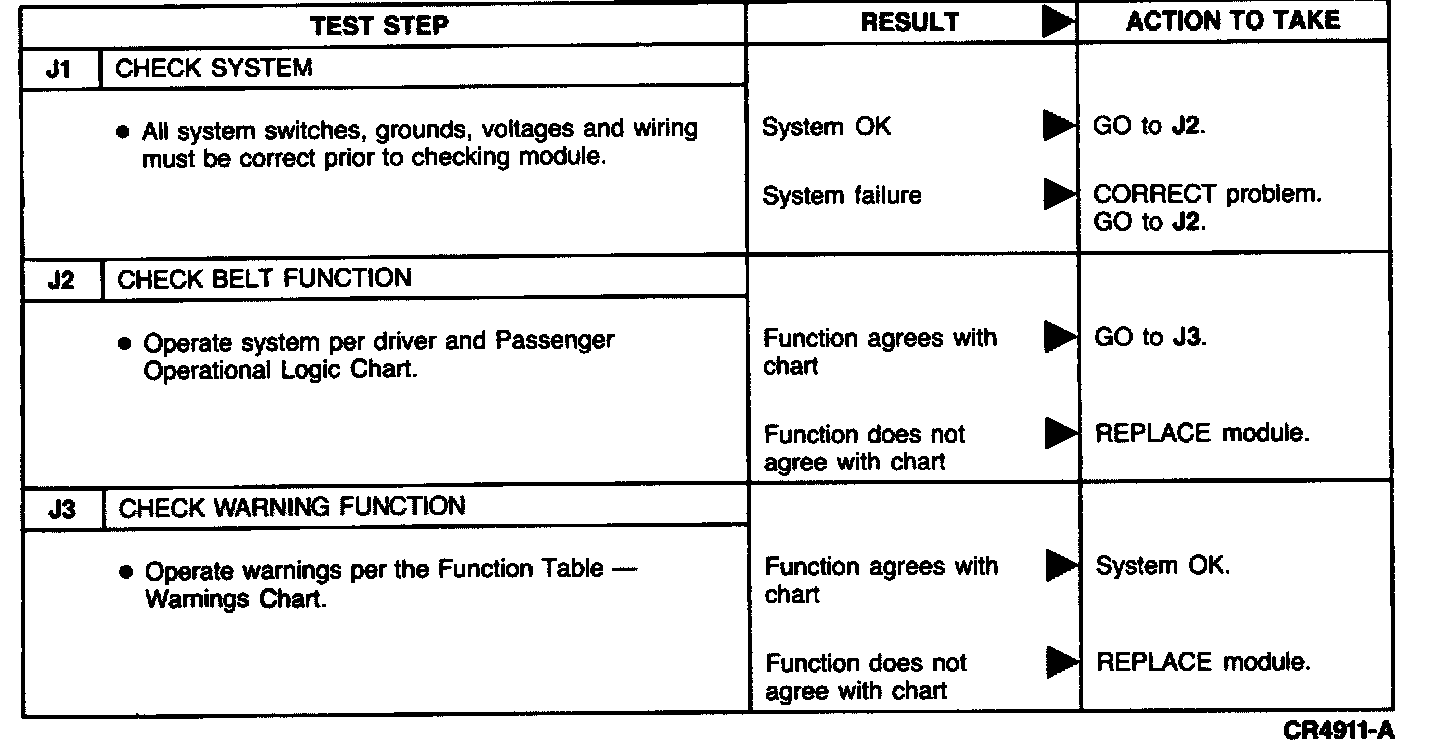

Test J: Passive Restraint Module Check

J1 - J3:
