Home >> Mercury >> 1989 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test 2 - DIS Module, Harness & Coil >> Steps 1 Through 7

Steps 1 Through 7

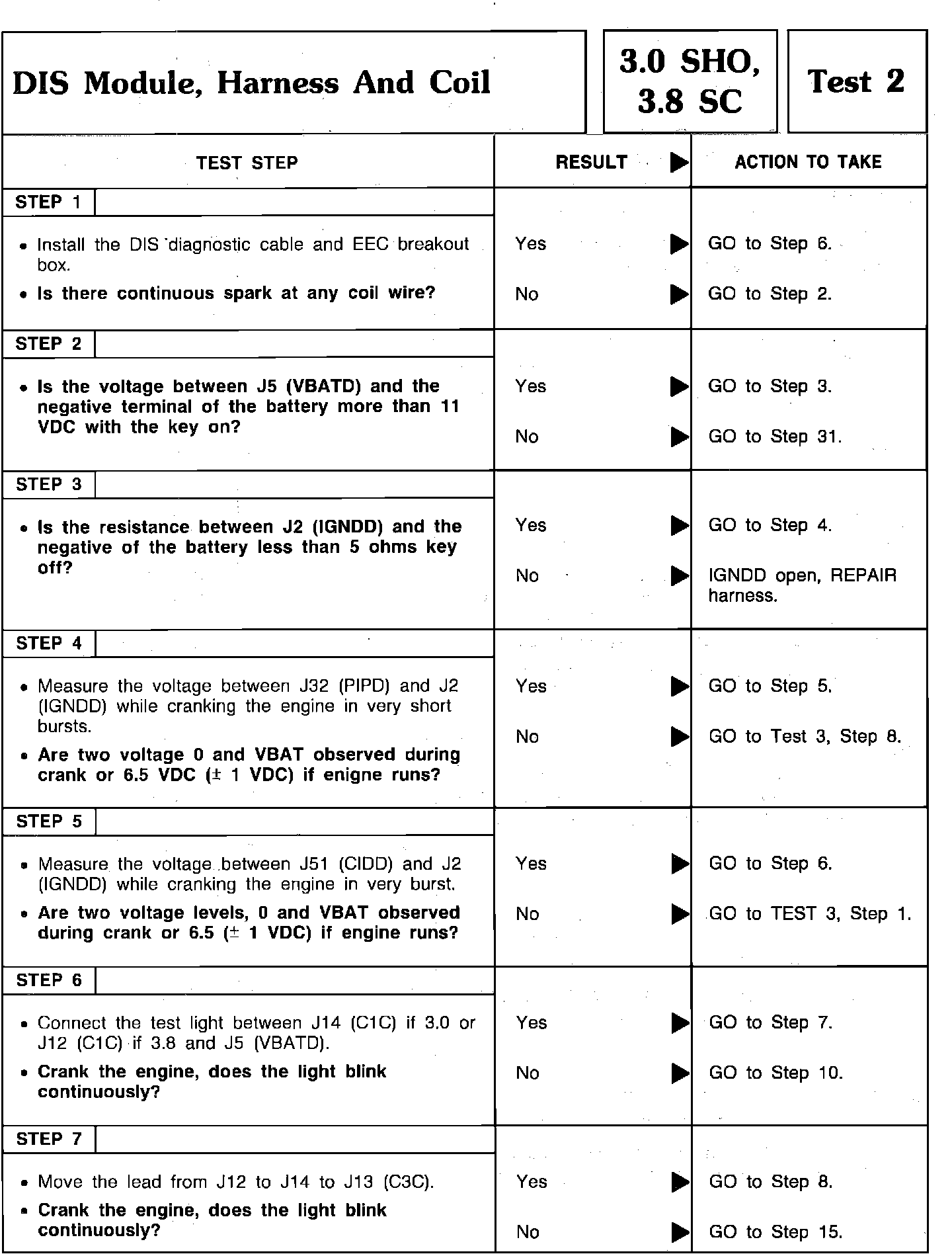

DIS Module, Harness & Coil Steps 1 thru 7:
