Home >> Mercury >> 1989 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test 1 - System Function >> Steps 1 Through 7

Steps 1 Through 7

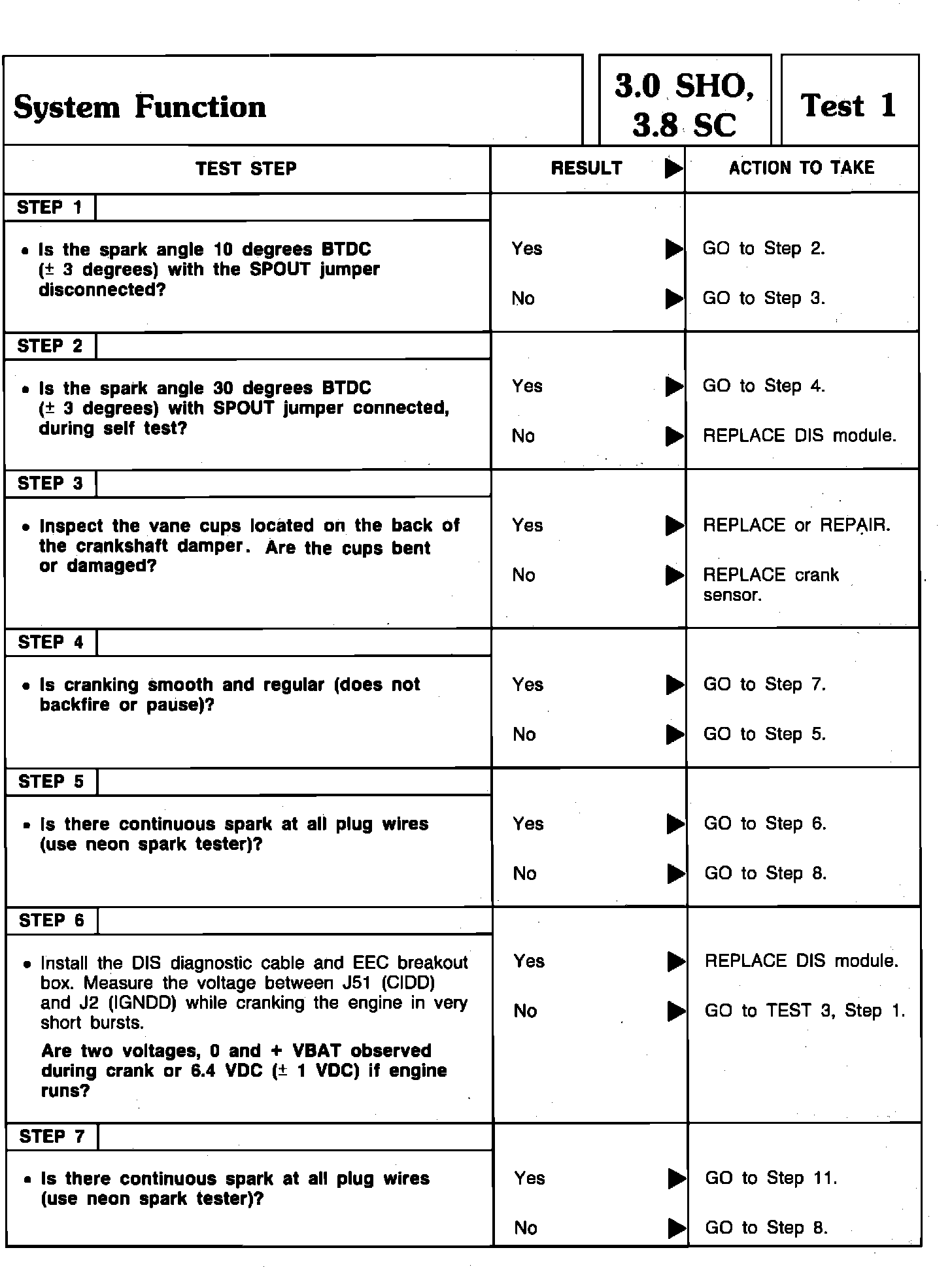

System Function Steps 1 thru 7:
