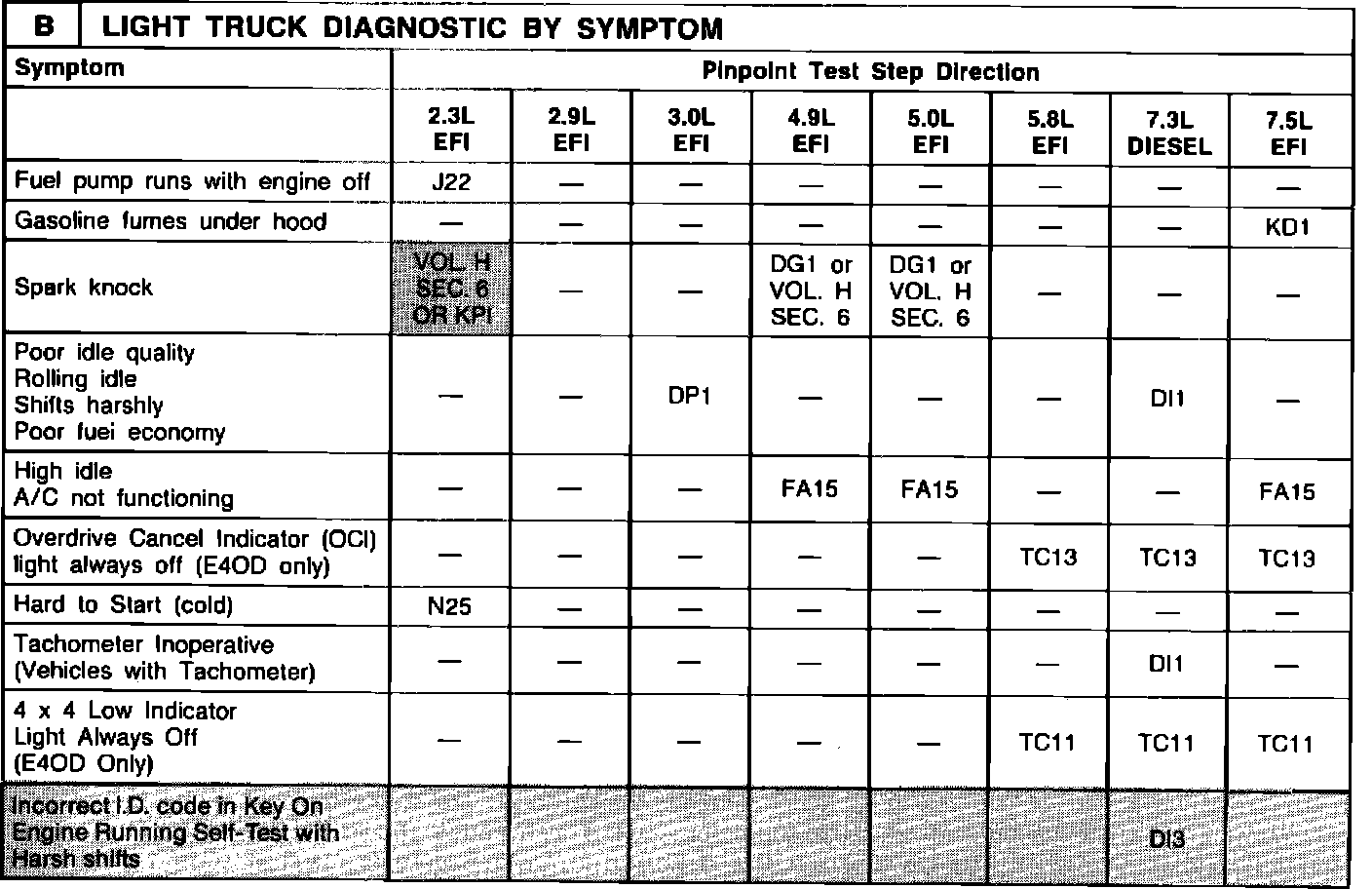

Quick Test:Diagnostic By Symptom





EEC-IV - Quick Test - All Engines
1989 14-23

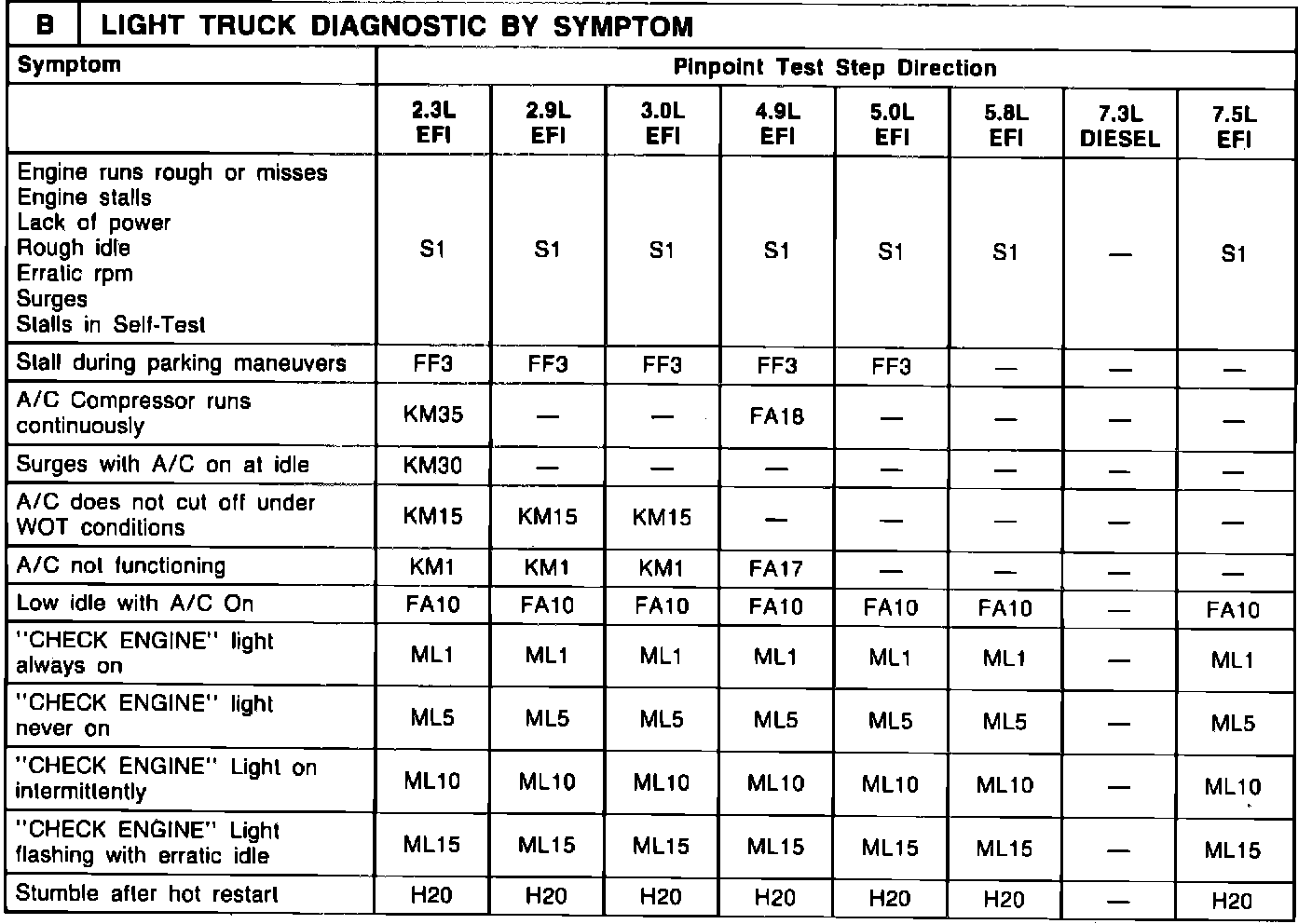

QUICK TEST: Diagnostic By Symptom 7.0




14-24 EEC-IV - Quick Test - All Engines
1989

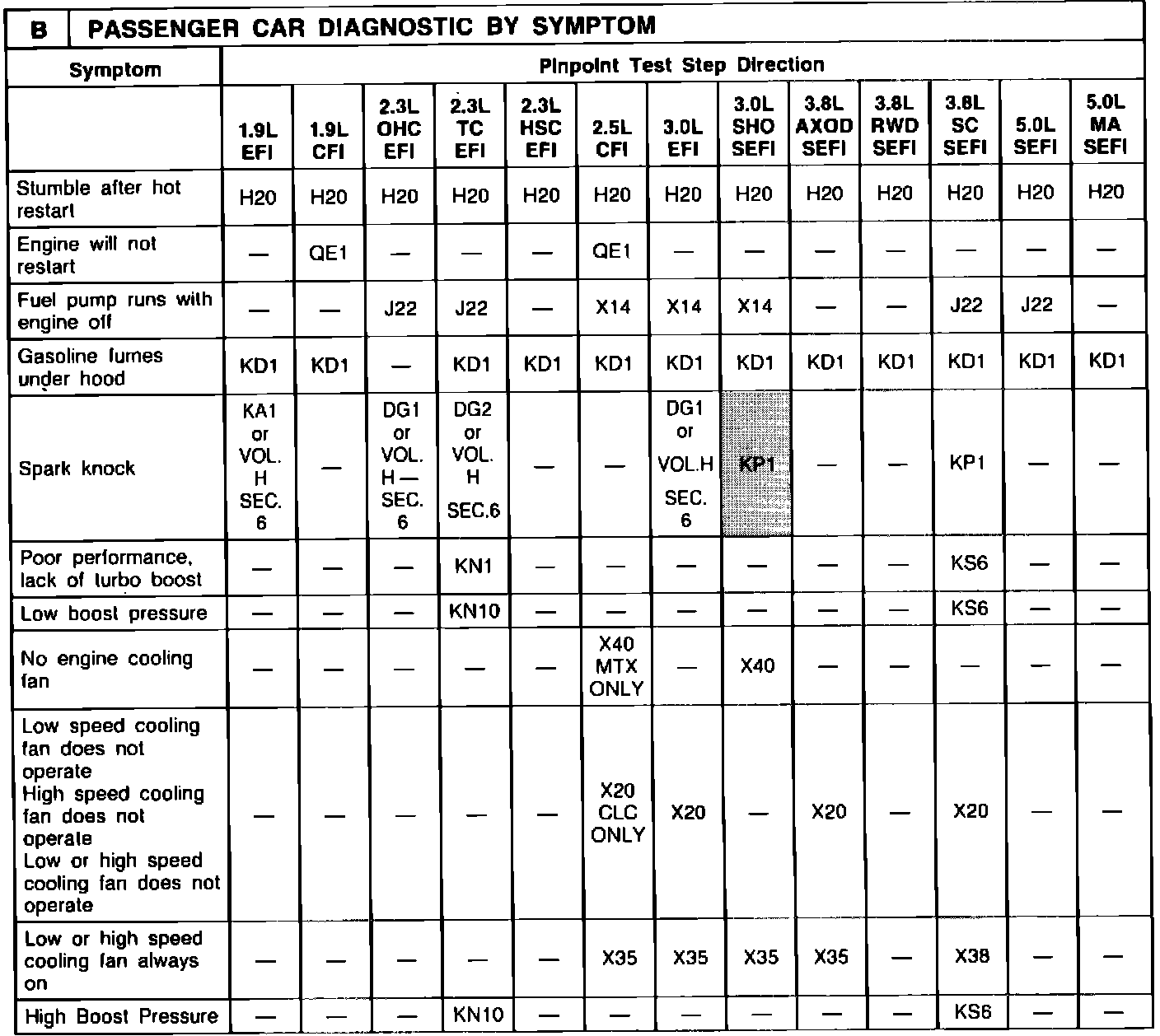

QUICK TEST: Diagnostic By Symptom 7.0




EEC-IV - Quick Test - All Engines 14-25
1989

QUICK TEST: Diagnostic By Symptom 7.0
