Engine Controls
Engine Controls

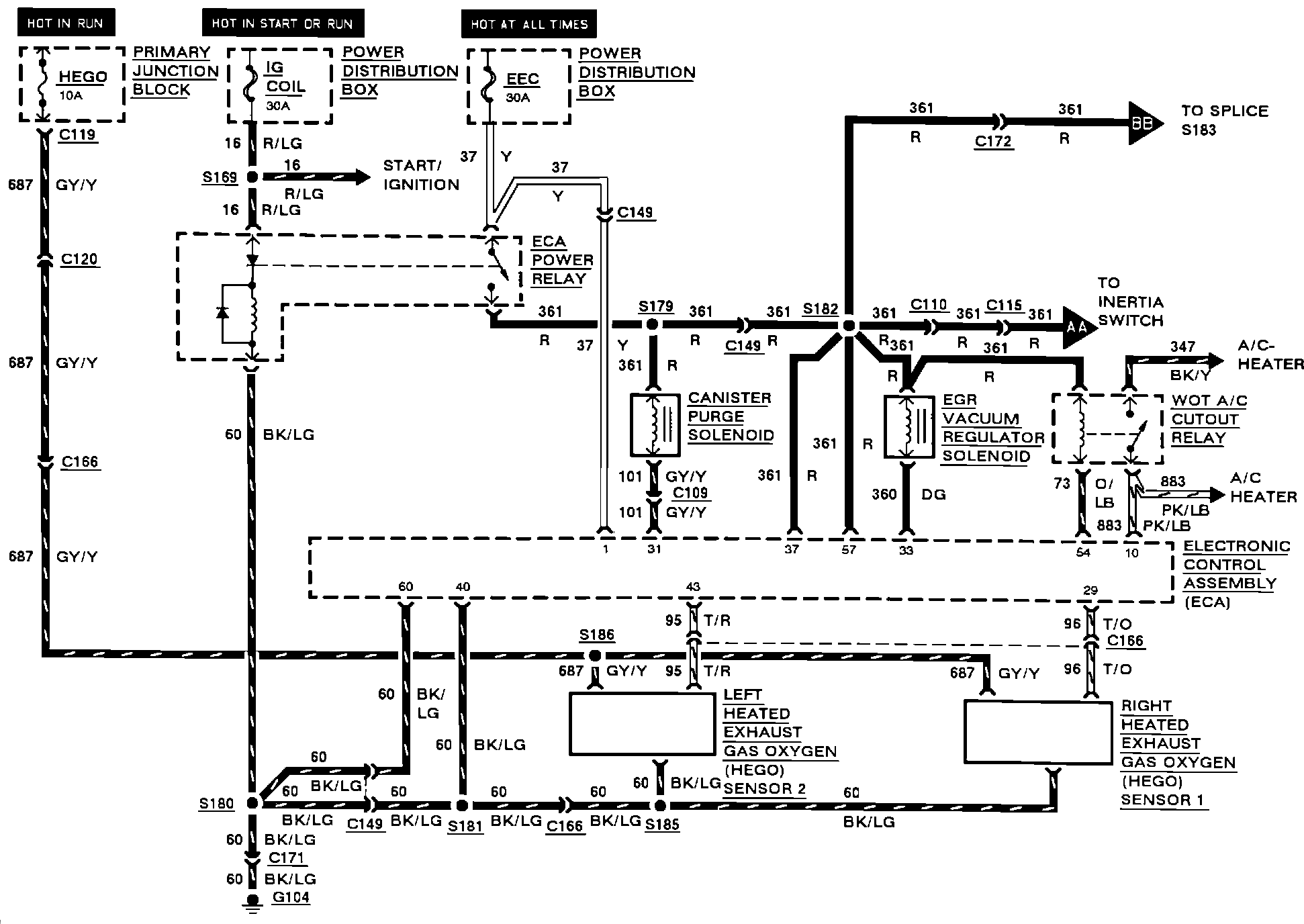

Electronic Engine Control (Part 1 Of 4):

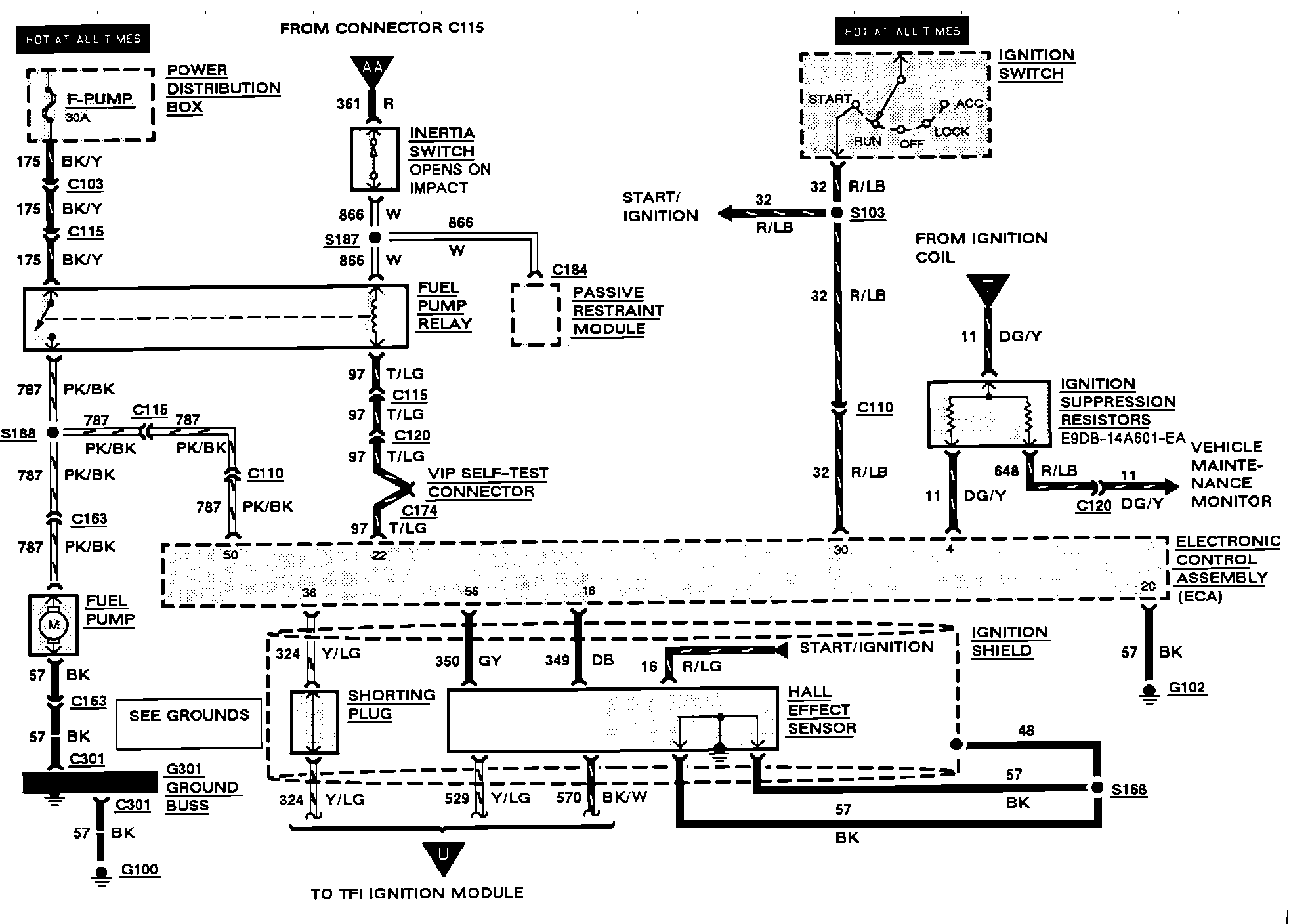

Electronic Engine Control (Part 2 Of 4):

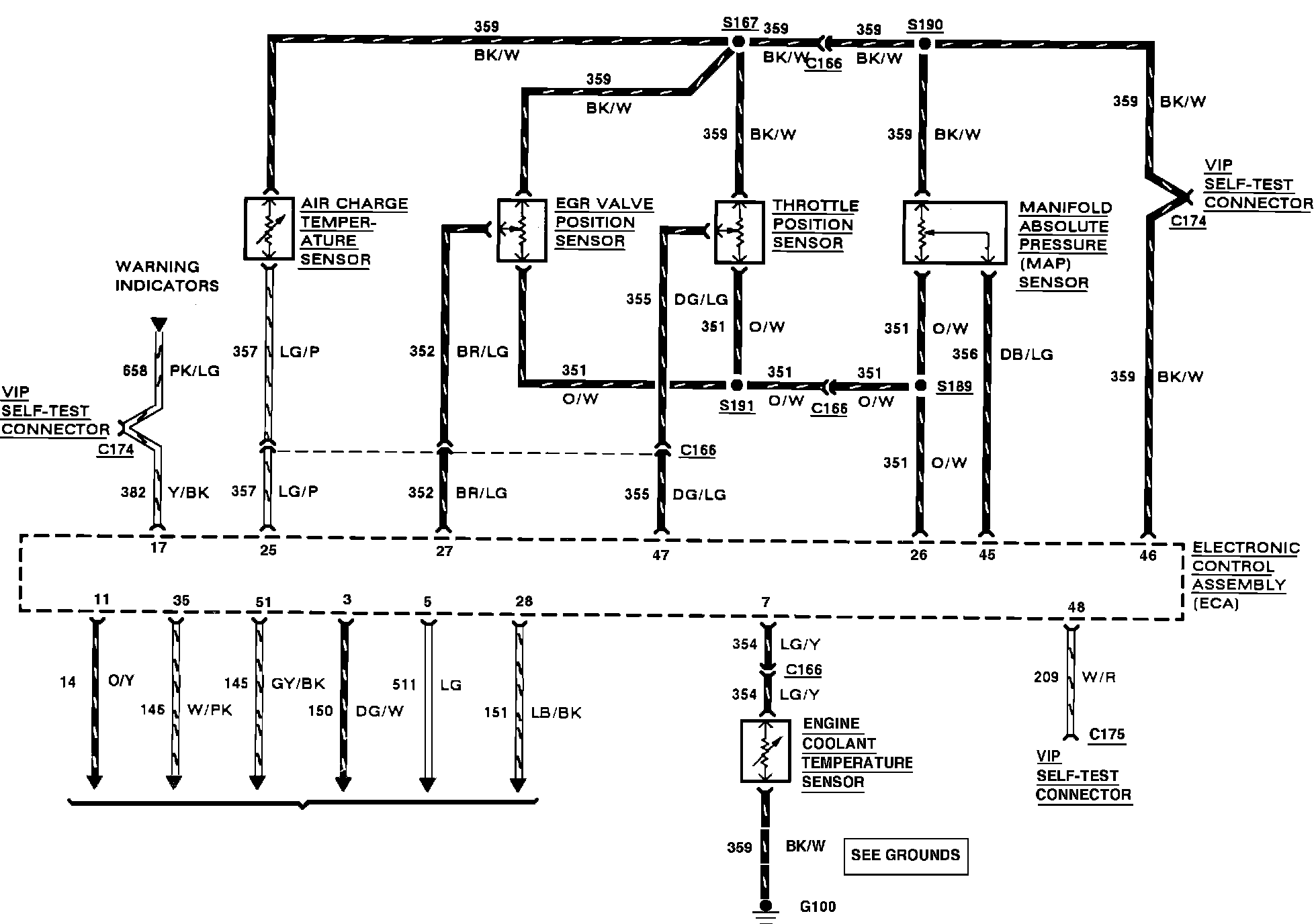

Electronic Engine Control (Part 3 Of 4):

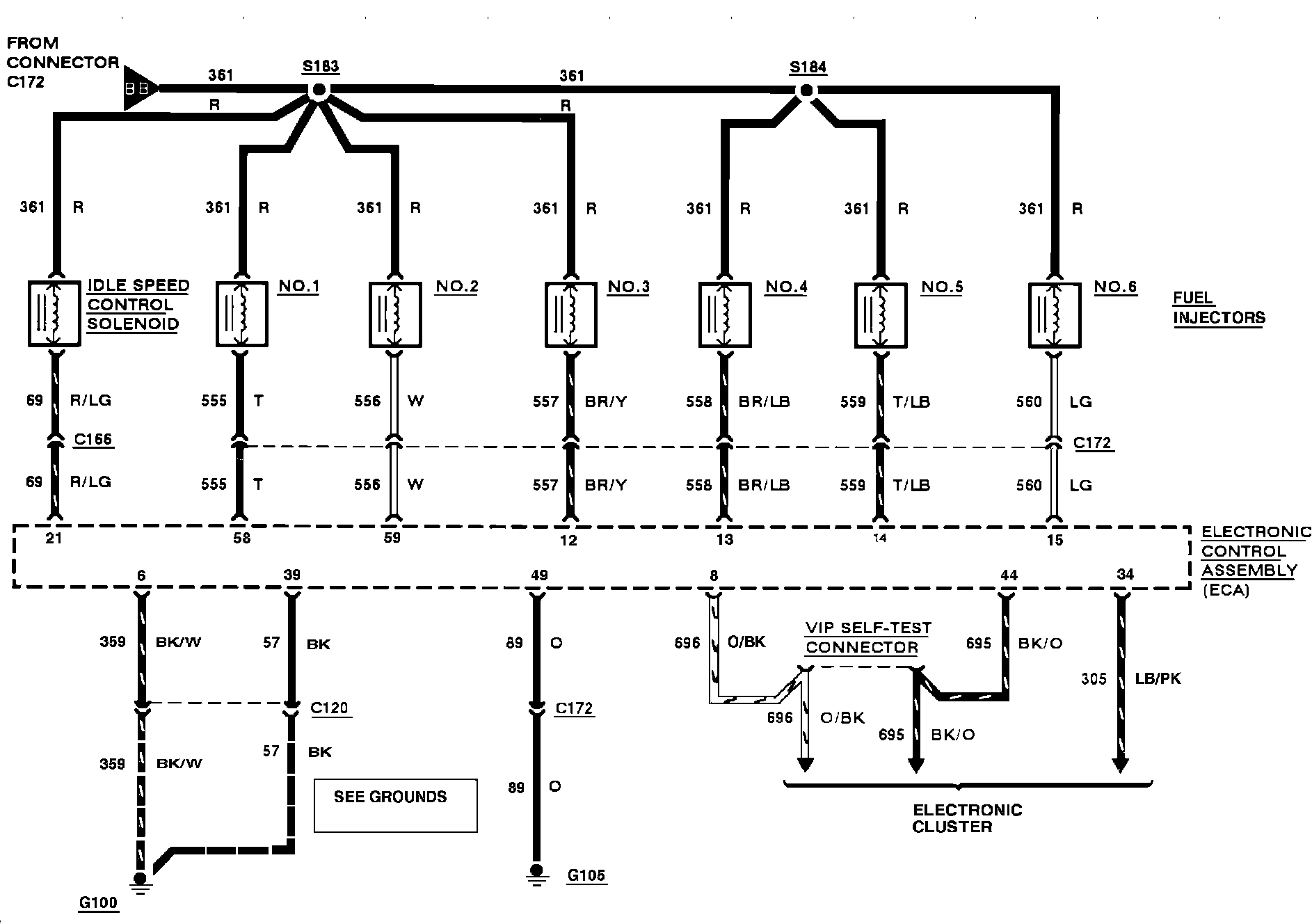

Electronic Engine Control (Part 4 Of 4):
