Headlamp Control Module
>>
With Automatic Lamps & Delayed Exit System Wiring Circuit
With Automatic Lamps & Delayed Exit System Wiring Circuit

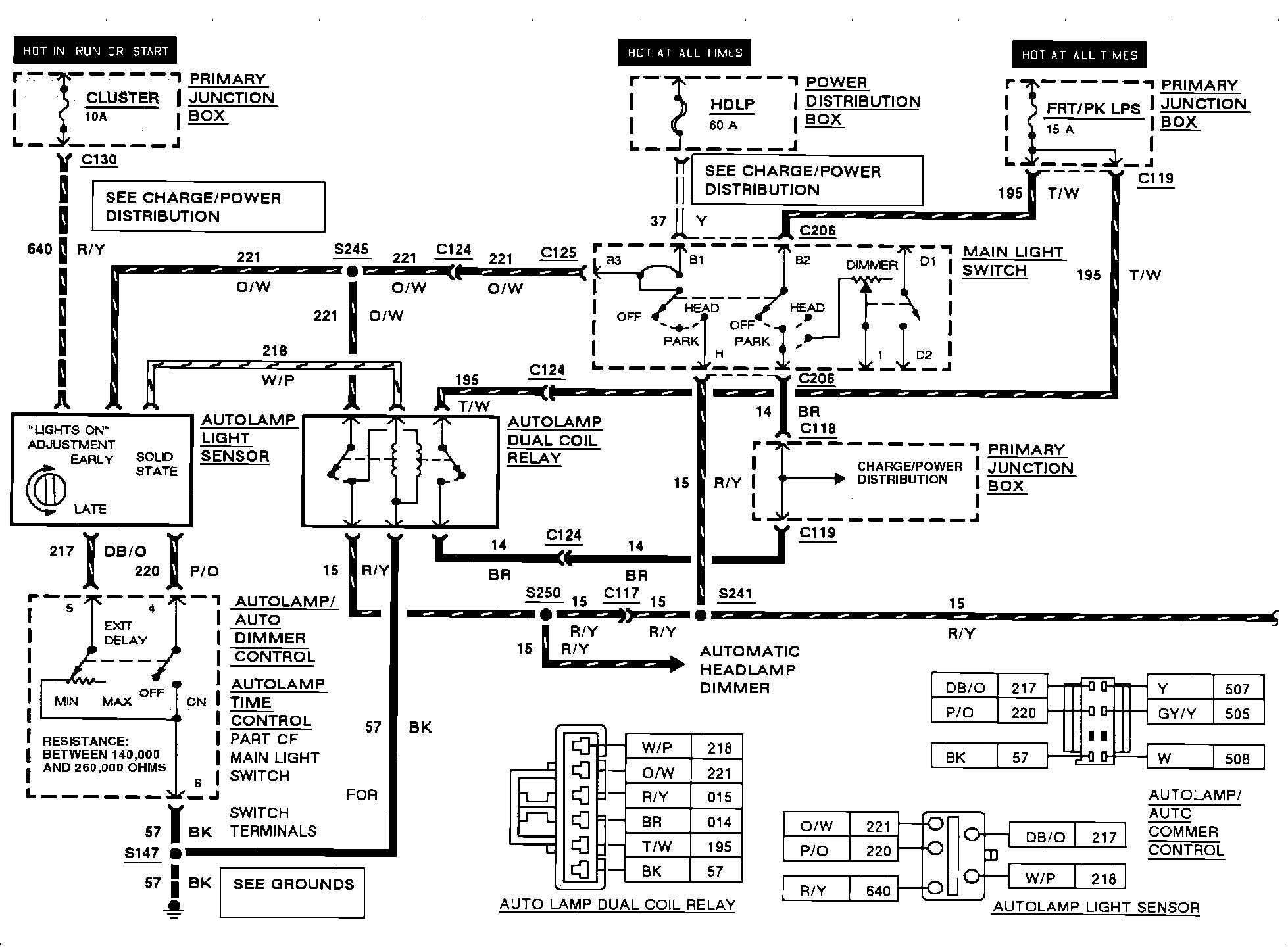

Automatic Lamps And Delayed Exit:
Automatic Lamps And Delayed Exit:
