Inspection

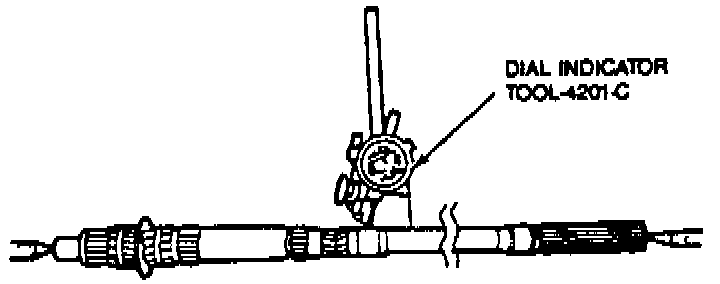

Measuring Output Shaft Runout:

1. Check output shaft for run-out by mounting the shaft between V blocks and applying a dial indicator to several places along shaft. If run-out exceeds 0.002 inch, replace mainshaft.
2. Replace input shaft if splines are damaged, needle bearing surface in bore of bearing is worn or rough or cone surface is damaged.
