Home >> Mercury >> 1989 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> C - Firm Ride Indicator Lamp Circuit >> C1 - C5

C1 - C5

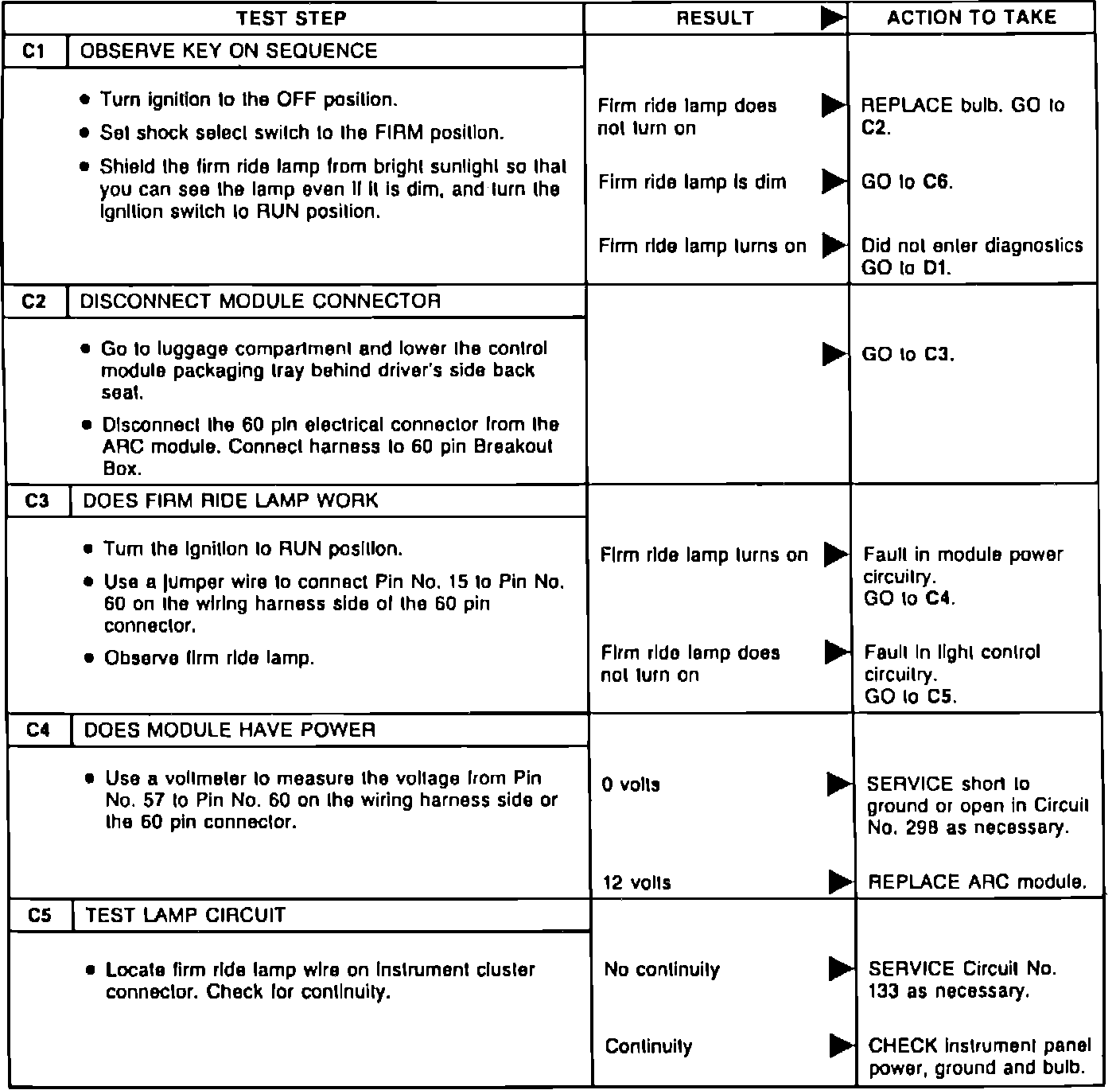

Fig. 6 Automatic Ride Control System Diagnosis, Firm Ride Indicator Lamp Circuit (Part 1 Of 2):
