Rear

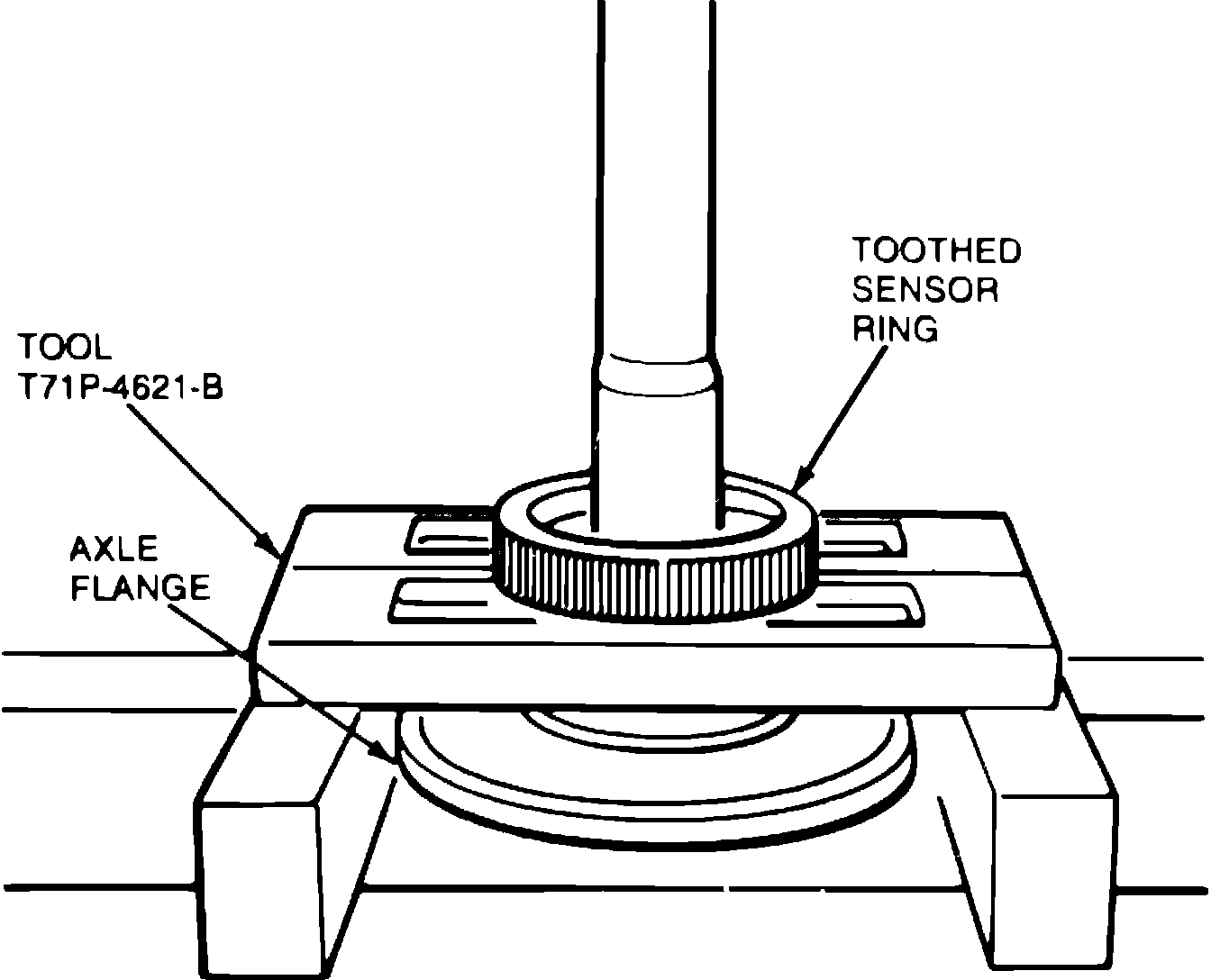

Fig. 18 Rear toothed sensor ring removal:

Removal
1. Remove rear axle shaft, refer to Rear Axle Replacement Procedures.
2. Install pinion bearing cone remover tool, Fig. 18, between axle shaft flange and sensor ring. Ensure recessed portion of inner surface of tool is toward axle flange.
3. Position axle in an arbor press and press axle out of sensor ring.

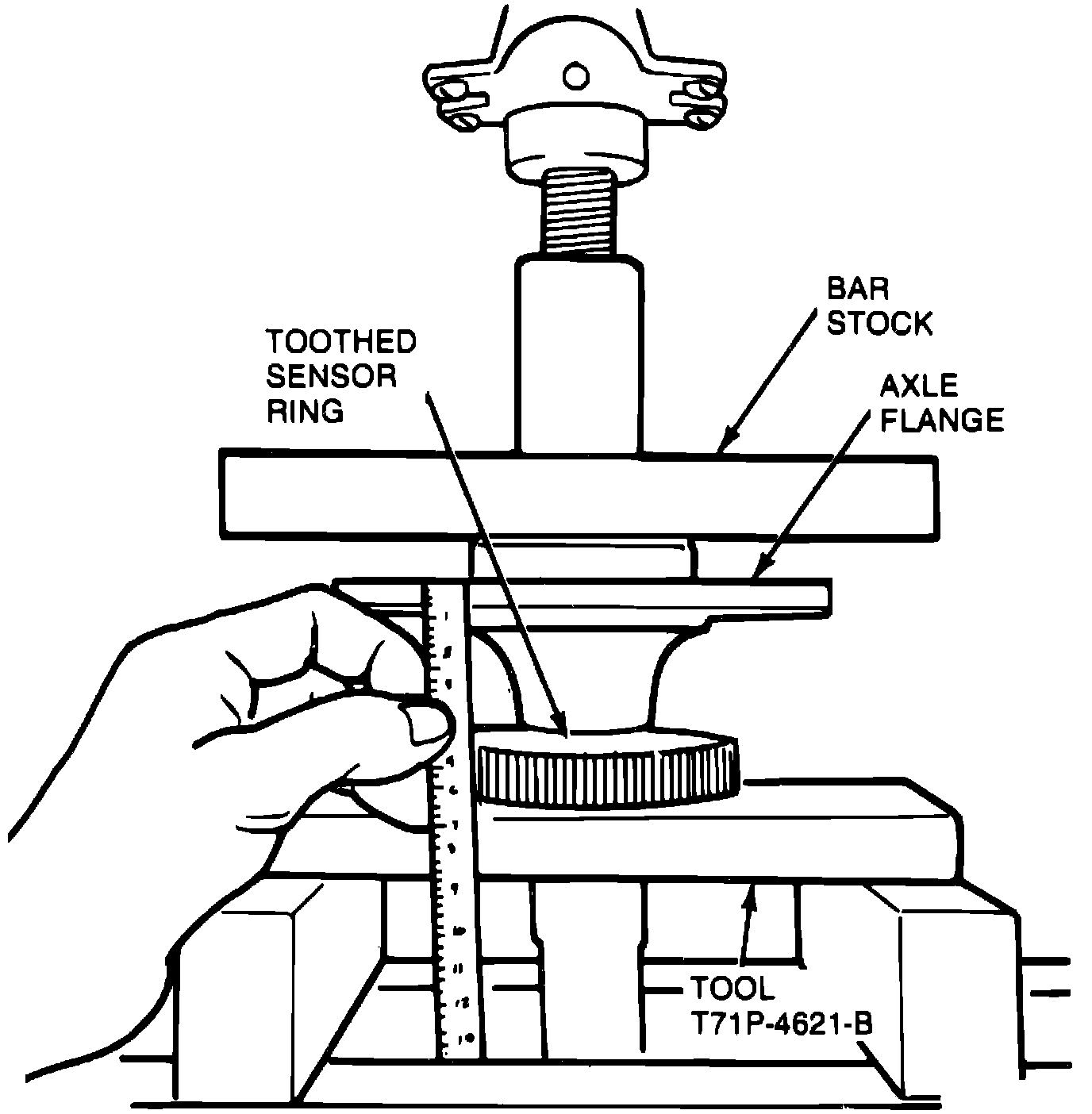

Fig. 19 Rear toothed sensor ring installation:

Installation
1. To install, position sensor on axle shaft with recessed side facing inboard.
2. Install pinion bearing cone remover tool, Fig. 19, on axle shaft.
3. Position a piece of bar stock on top of axle flange, then press sensor ring onto axle shaft until a 1.8 inch gap between face of sensor ring and flange is obtained.
4. Install axle shaft.
