Front

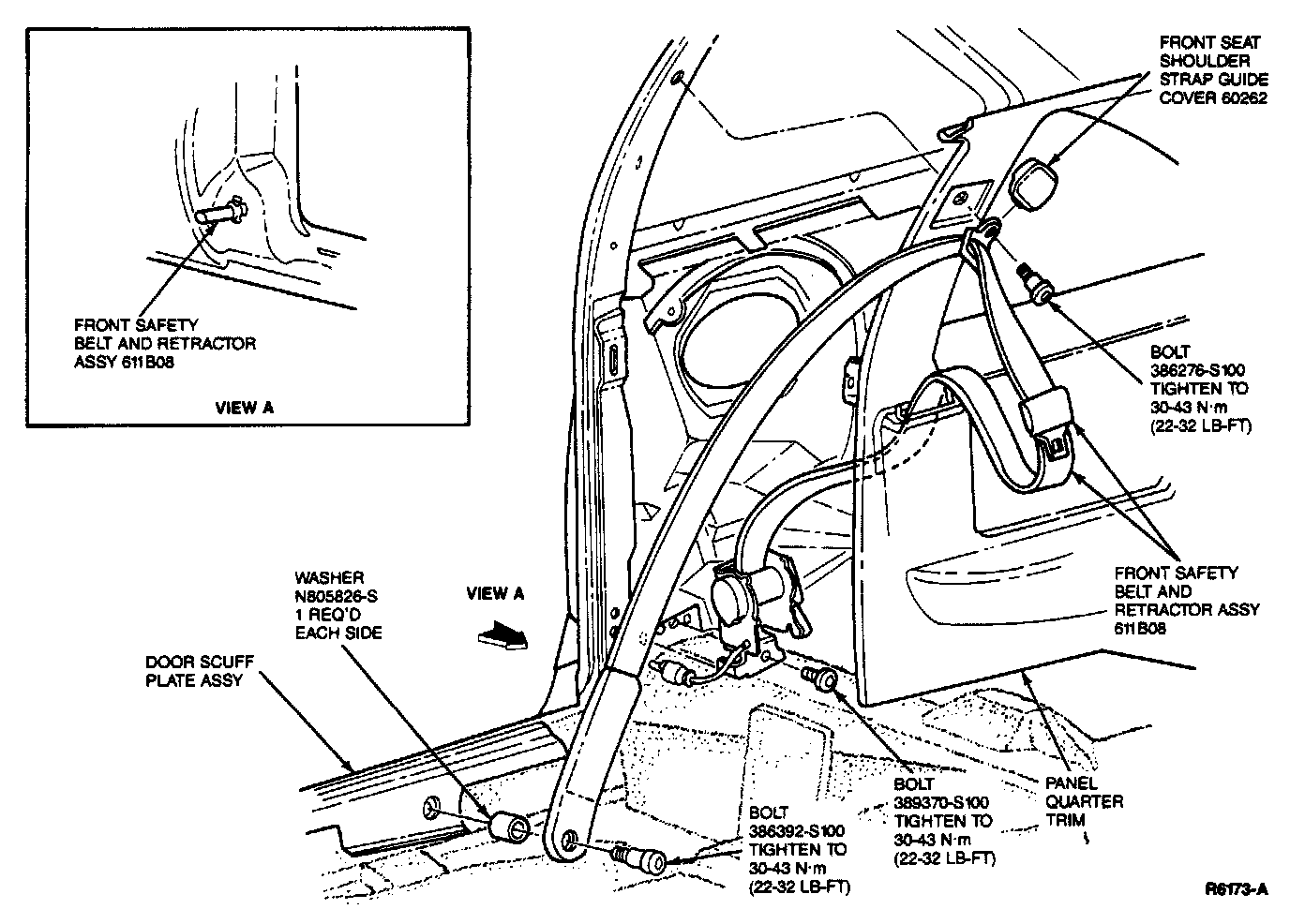

Outboard Attachments:

REMOVAL
1. Remove D-ring cover
2. Insert bolt bit and remove belt bolt.
3. Remove B-pillar upper trim panel.
4. Remove scuff plate/center pillar trim panel retaining screws and panel.
5. Remove safety belt through slot in upper center trim panel.
6. Remove safety belt anchor-to-sill bolt and rubber washer.
7. Remove safety belt retractor bolt.
8. Remove web guide attaching screw and slide guide rearward to remove from B-pillar.
9. Remove outboard safety belt assembly from vehicle.
10. Remove seat and track assembly.
11. Remove inboard belt and buckle assembly.
12. Remove safety bolt from slide bar.
13. Remove inboard knuckle assembly (on LH side of vehicle, disconnect buzzer wiring from floorpan wiring).


INSTALLATION
1. Reverse the removal procedure and position the safety belt components.
2. Tighten all attaching bolts to 30-43 Nm (22-32 lb-ft). Cycle the system several times to ensure proper operation of the retractor. Ensure webbing is not twisted.
