Connector Views
Connector Views

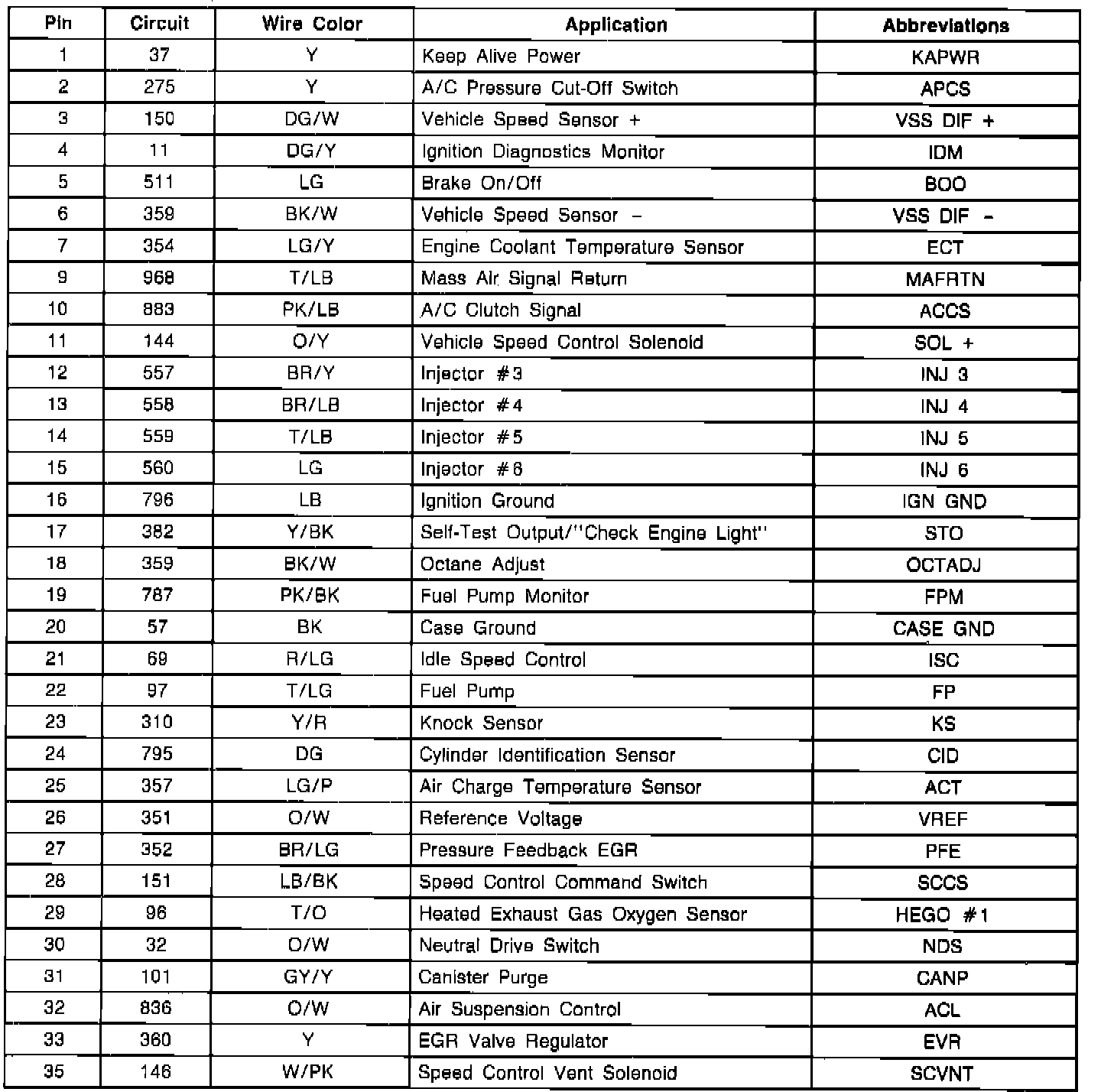

EEC-IV Module Connector Pin Usage:

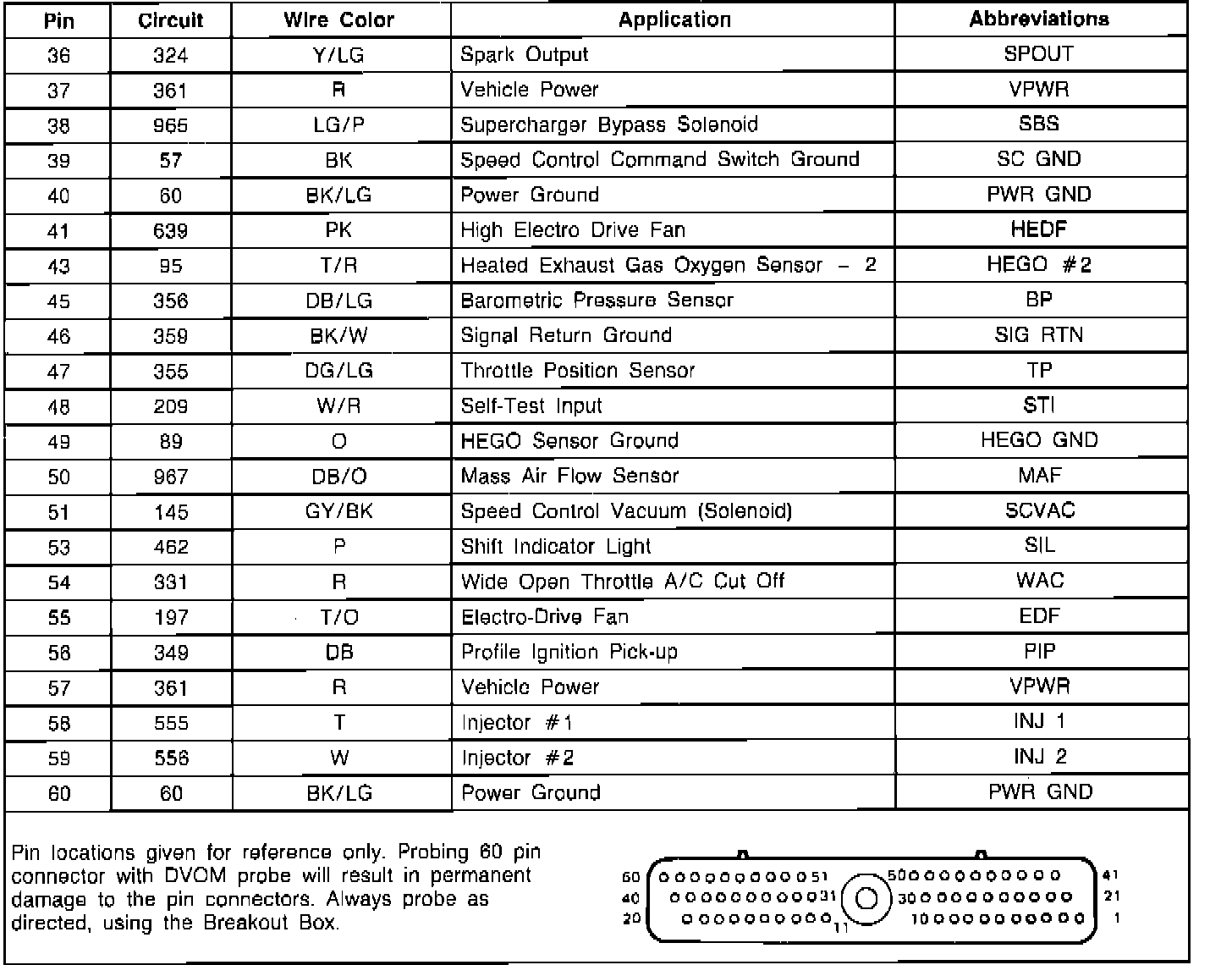

EEC-IV Module Connector Pin Usage:
Integrated Controller Pin Usage:
