Test Steps X95 - X96
Test Steps X95 - X96

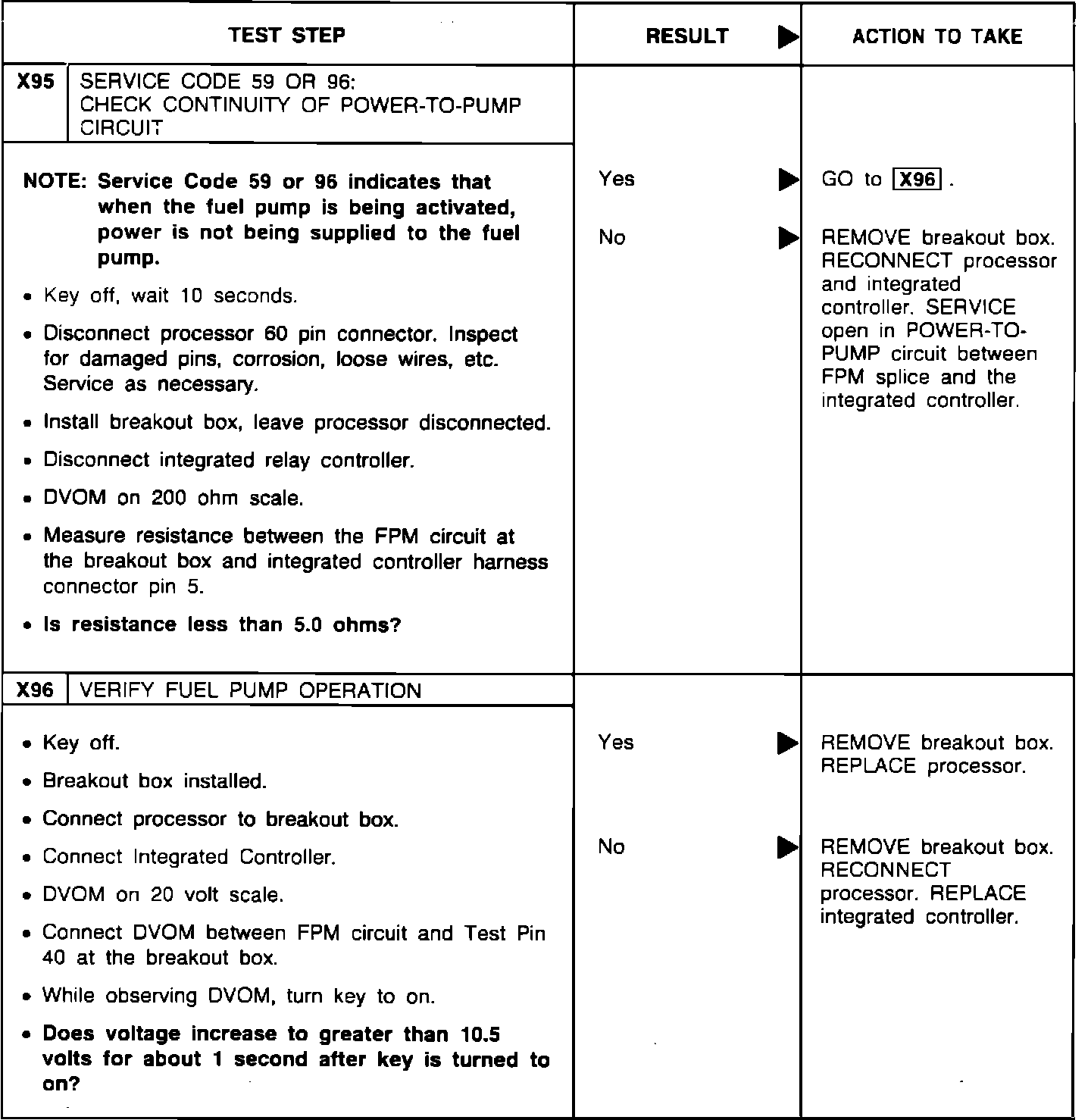

Fig. 23 Integrated Controller Pinpoint Tests X95 & X96 (Part 23 Of 26):
