Test Steps X84, X90 - X91

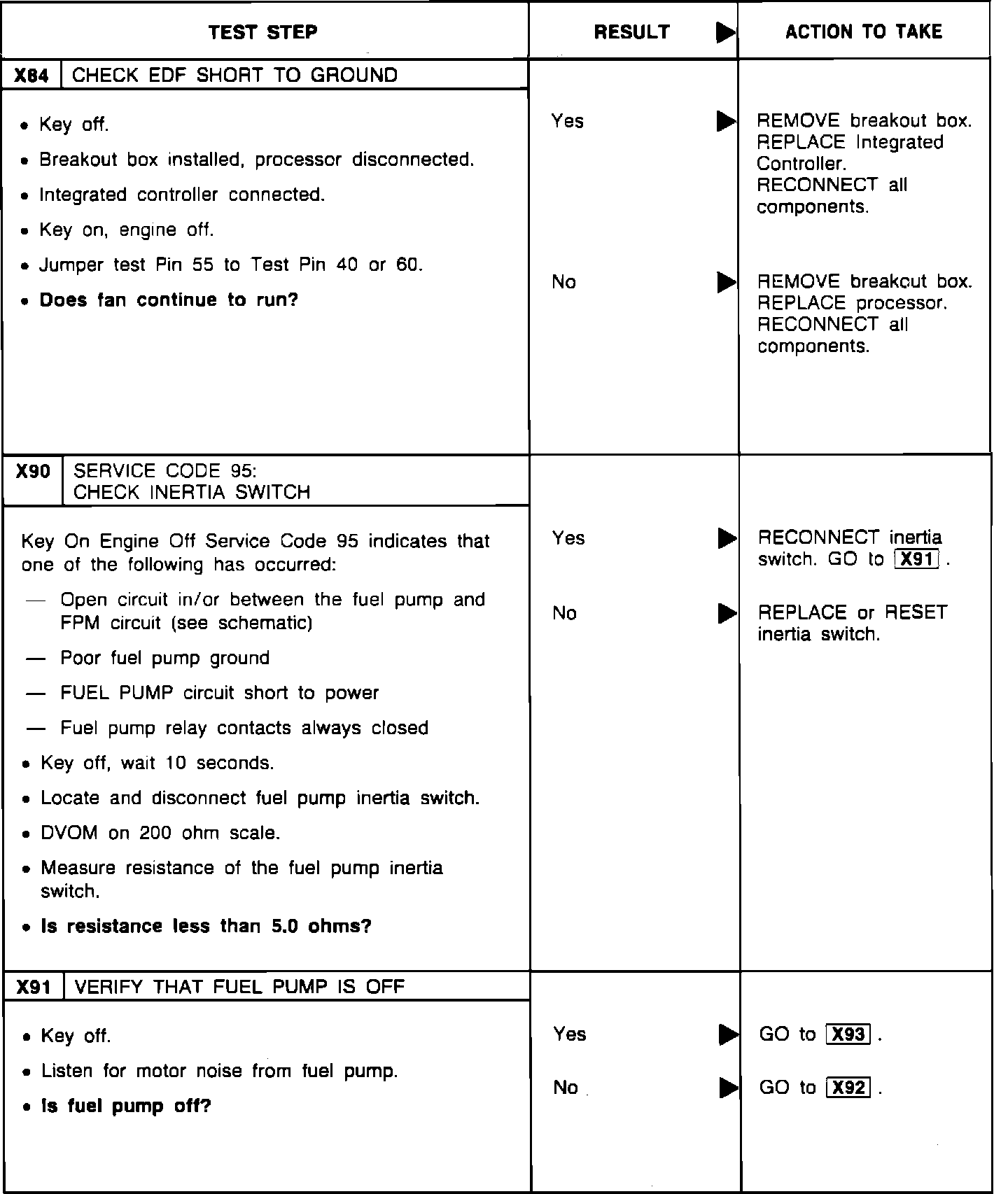

Fig. 23 Integrated Controller Pinpoint Tests X84, X90 & X91 (Part 21 Of 26):
