Test Steps X59- X60, X80
Test Steps X59- X60, X80

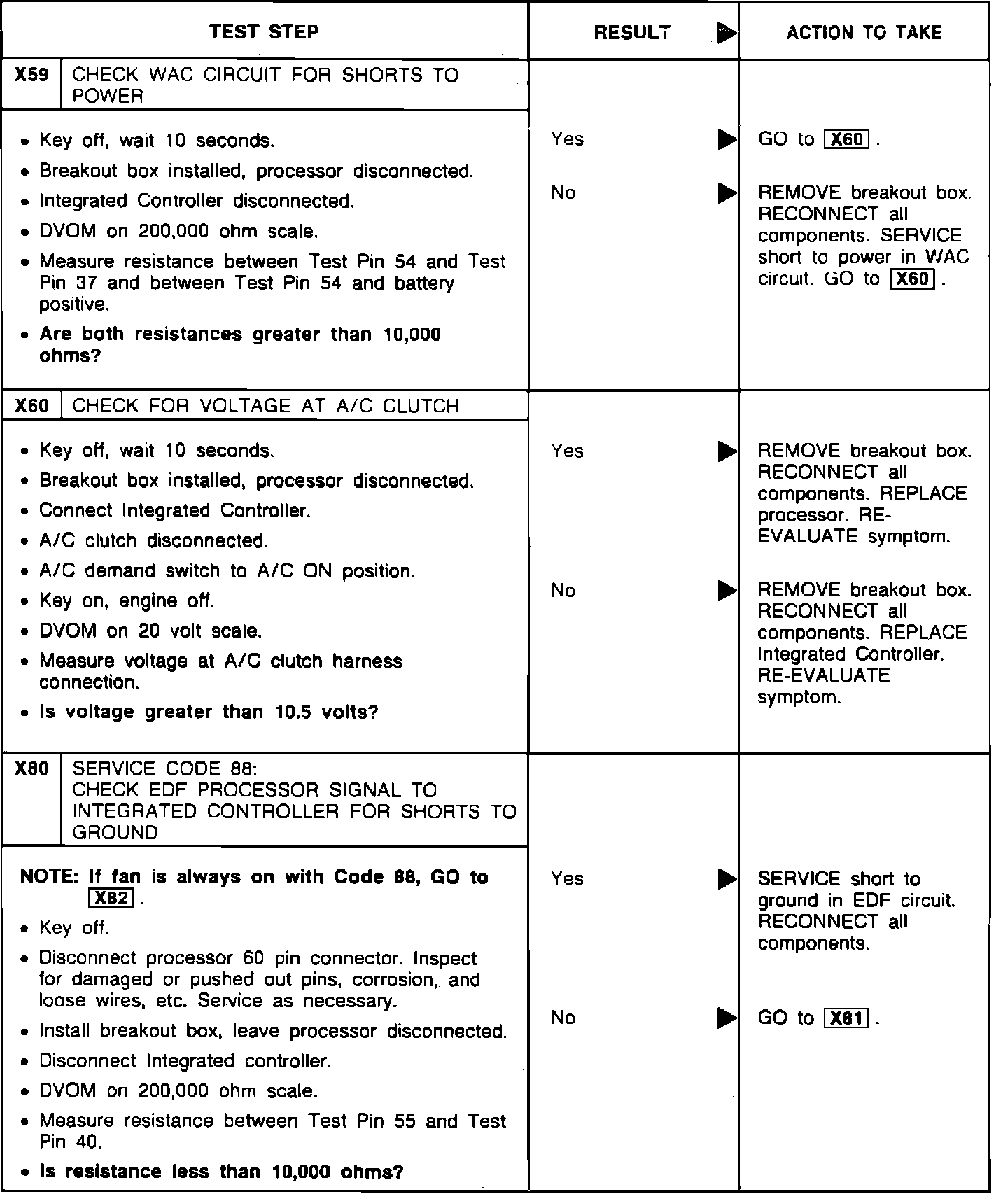

Fig. 23 Integrated Controller Pinpoint Tests X59, X60 & X80 (Part 19 Of 26):
