Home >> Mercury >> 1989 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Fuel Delivery and Air Induction >> Fuel Pump Relay >> Testing and Inspection >> Test Steps X56 - X58

Test Steps X56 - X58

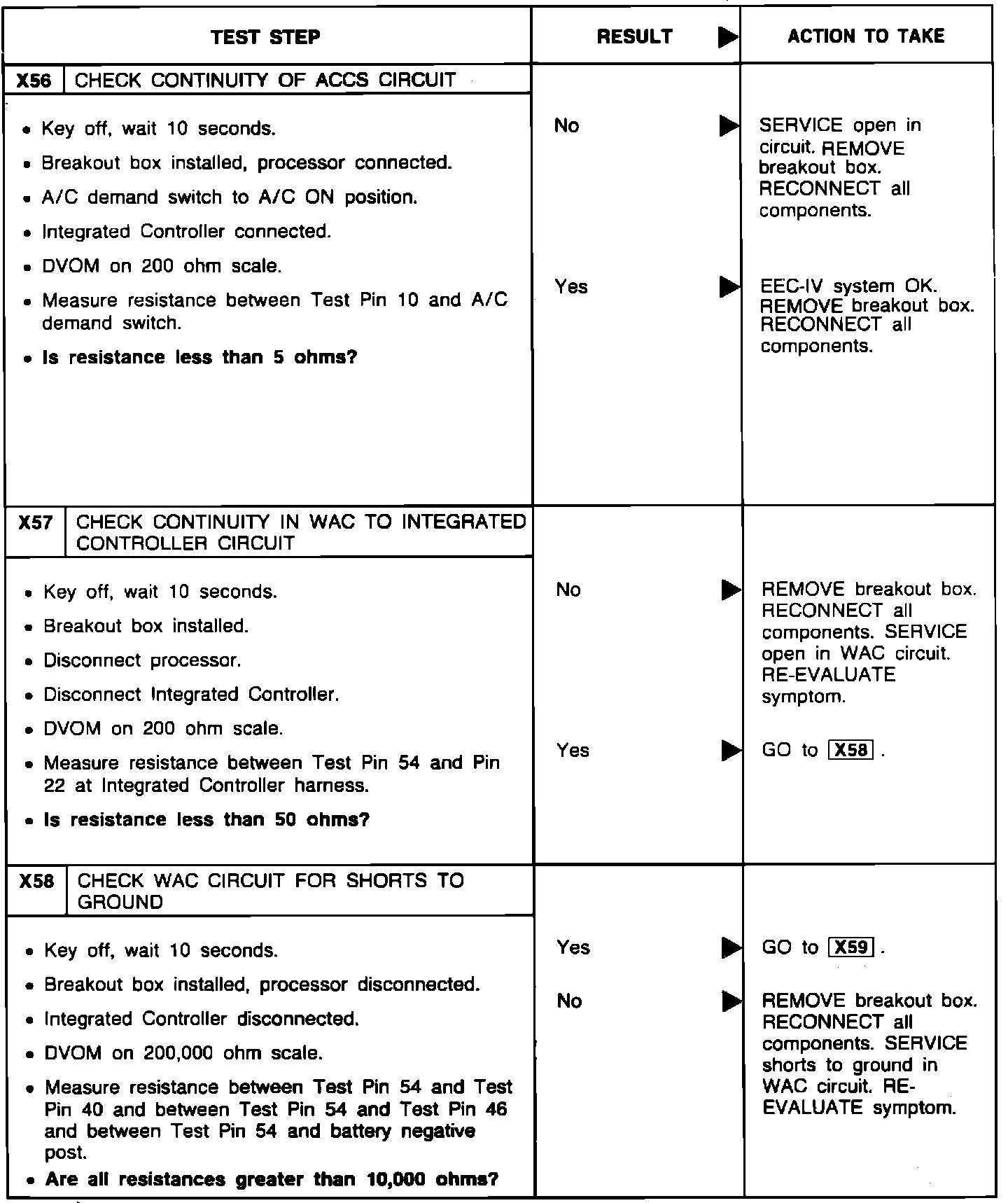

Fig. 23 Integrated Controller Pinpoint Tests X56, X57 & X58 (Part 18 Of 26):
