Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Fuel Delivery and Air Induction
>>
Fuel Pump Relay
>>
Testing and Inspection
>>
Test Steps X5 - X8
Test Steps X5 - X8

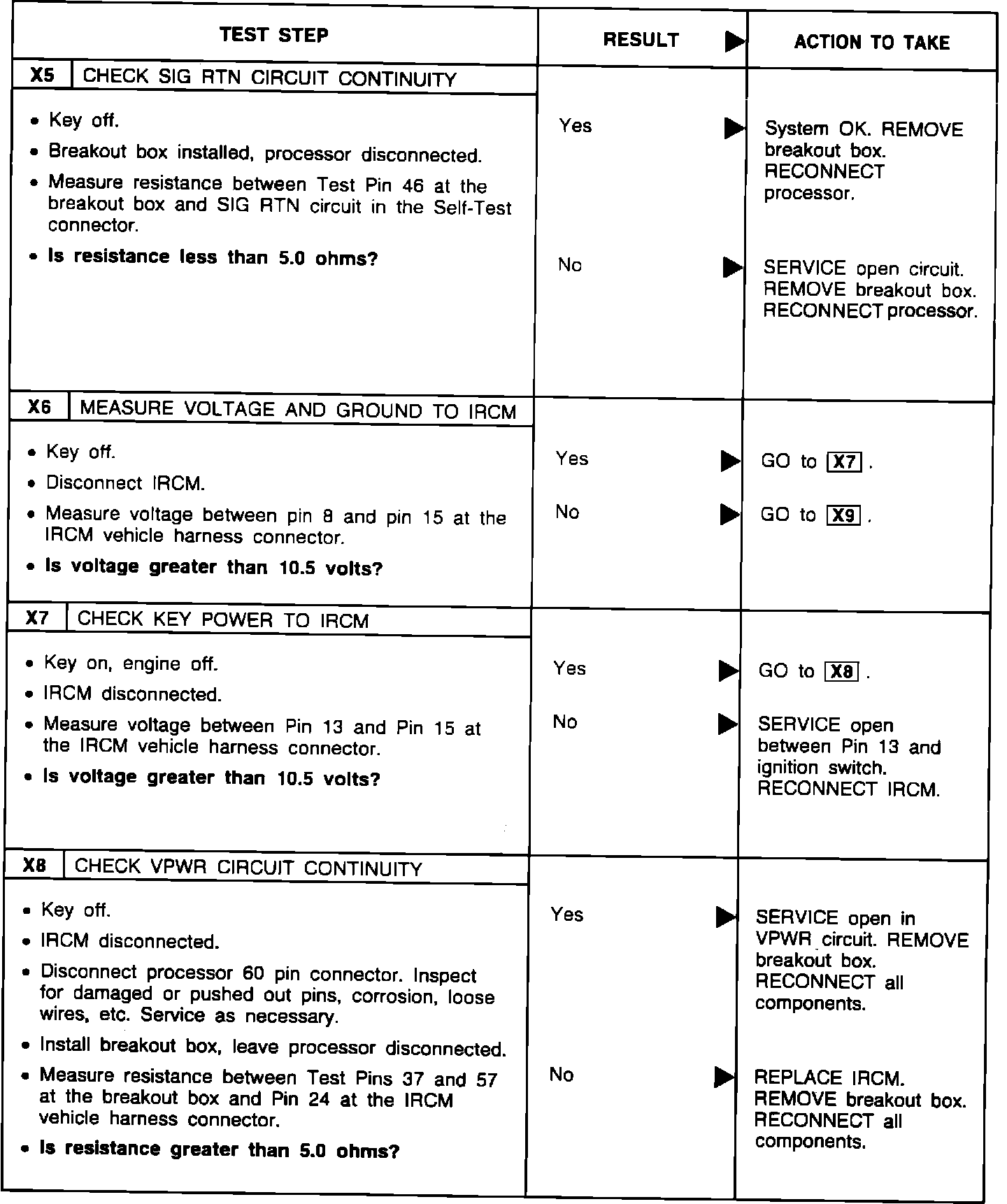

Fig. 23 Integrated Controller Pinpoint Tests X5, X6, X7 & X8 (Part 2 Of 26):
