Test Steps X33, X35
Test Steps X33, X35

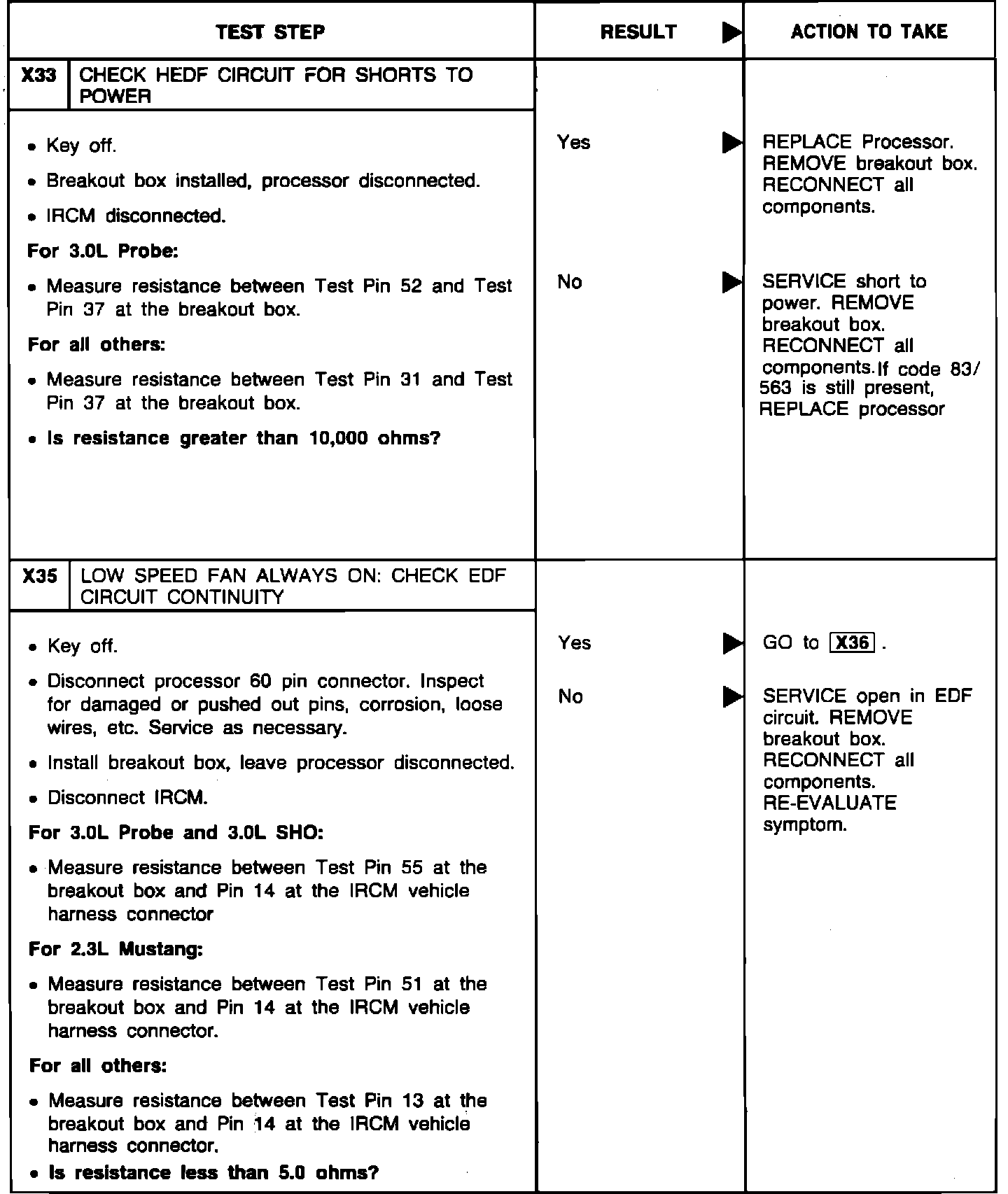

Fig. 23 Integrated Controller Pinpoint Tests X33 & X35 (Part 12 Of 26):
