Test Steps X26 - X27, X30
Test Steps X26 - X27, X30

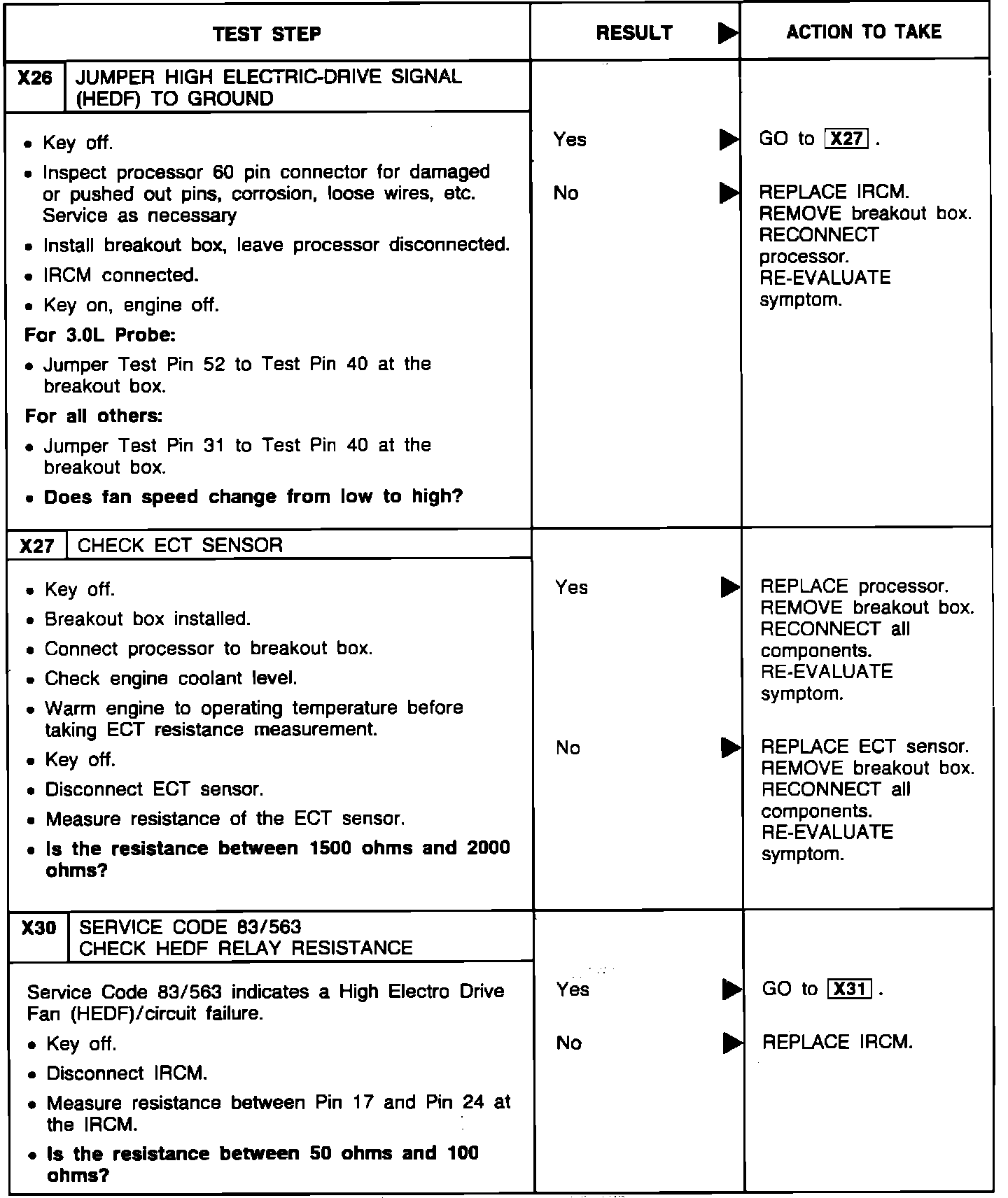

Fig. 23 Integrated Controller Pinpoint Tests X26, X27 & X30 (Part 10 Of 26):
