Test Steps X18 - X21

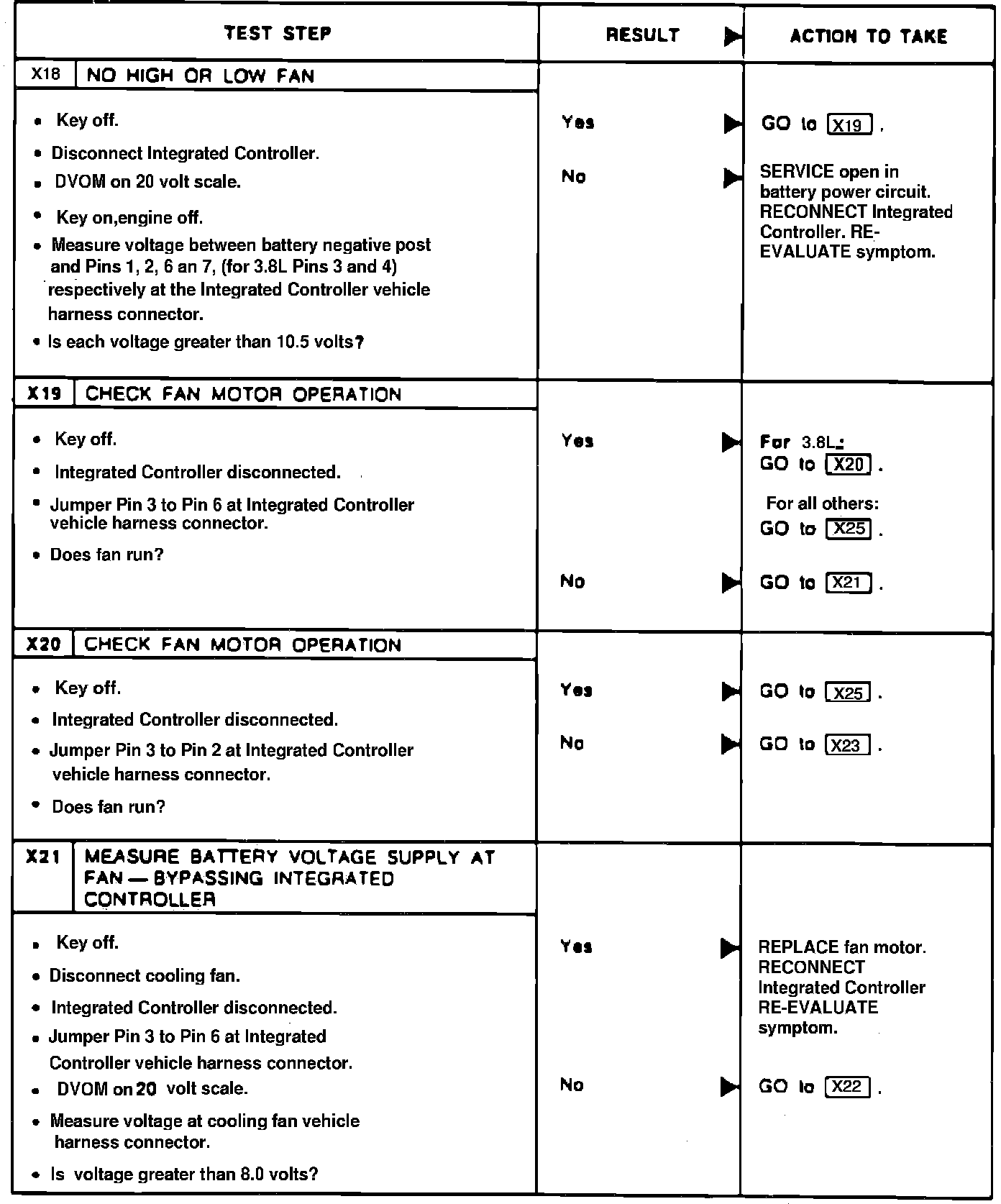

Fig. 23 Integrated Controller Pinpoint Tests X18, X19, X20 & X21 (Part 7 Of 26):
