Mercury
>>
1989
>>
Cougar/XR7 V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Fuel Delivery and Air Induction
>>
Fuel Pump Relay
>>
Testing and Inspection
>>
Test Steps X100 - X101
Test Steps X100 - X101

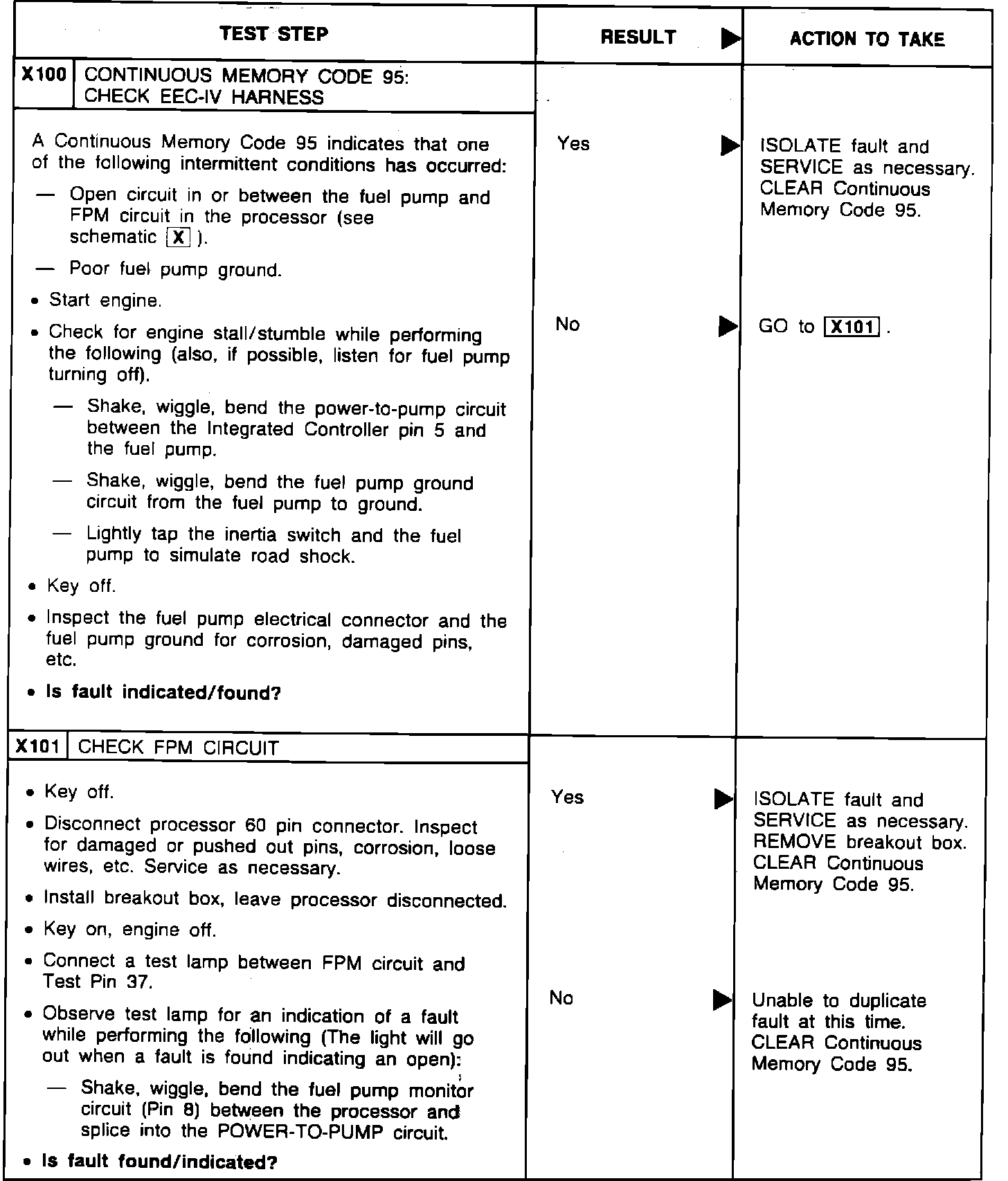

Fig. 23 Integrated Controller Pinpoint Tests X100 & X101 (Part 24 Of 26):
