Home >> Mercury >> 1989 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Code Descriptions

Code Descriptions

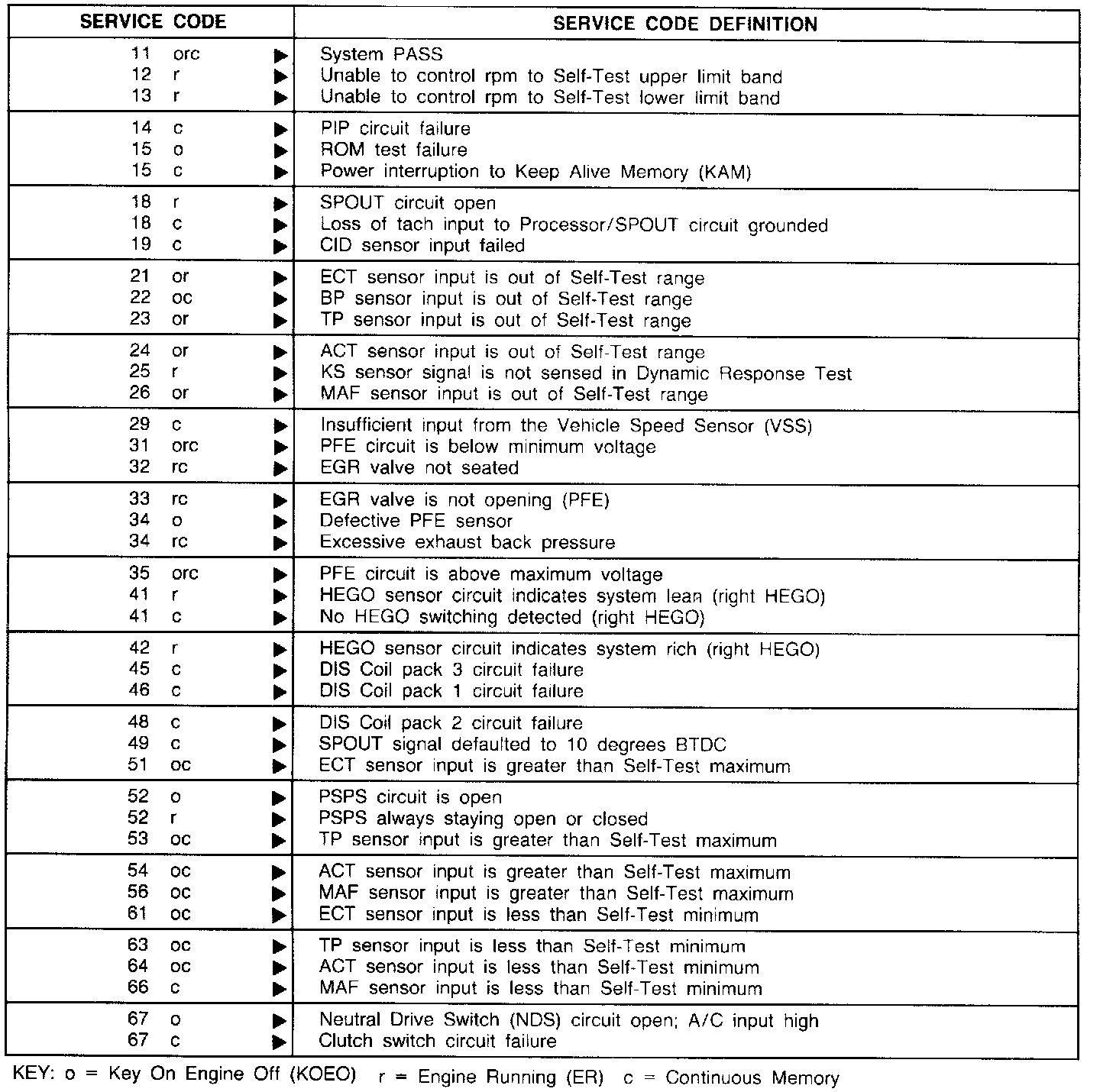

Quick Test Code Descriptions:

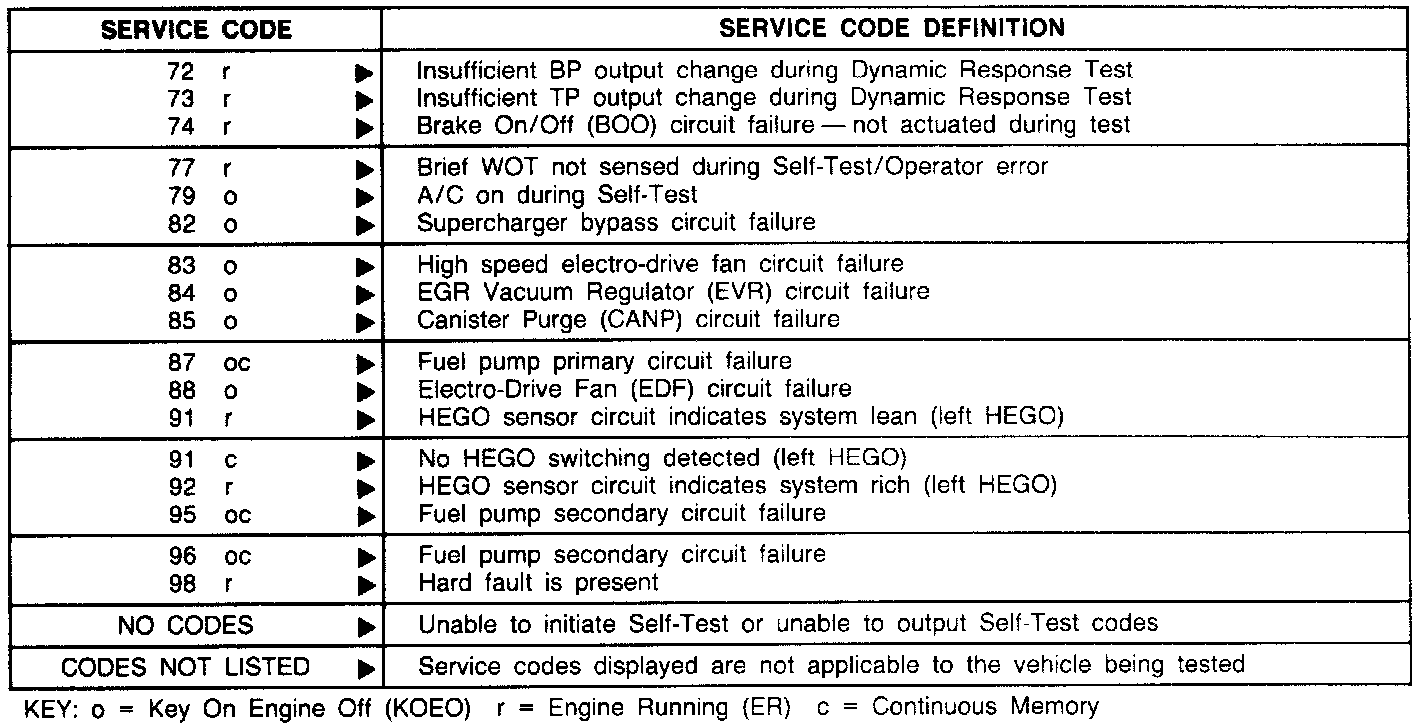

Quick Test Code Descriptions (Continued):
