Code 18 (Continuous Memory)
***THIS ARTICLE INCLUDES UPDATES MADE BY TSB #89-5A-13, DATED MARCH 1989***Supplemental Testing Information (scroll down to find Diagnostic Test Charts):
Block Diagram:
Wiring Schematic:
Wiring Diagram - Ignition (Supercharged Engine):
Abbreviations for the Schematic, Pinpoint Tests, and Breakout Box Overlay:
DIS Module and Pin-out:
DIS Component Location:
DIS Waveforms:

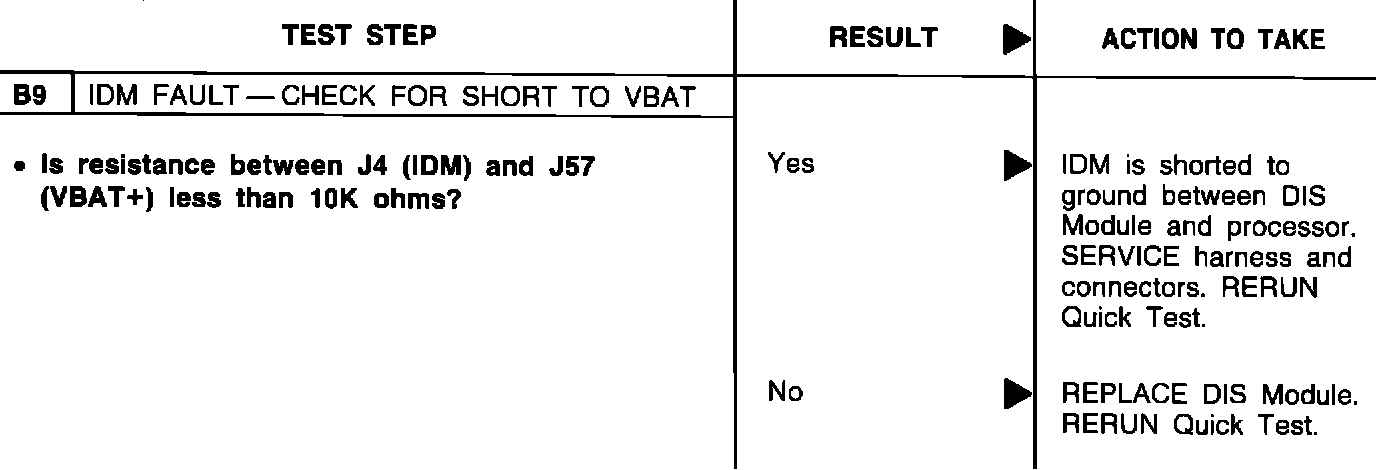

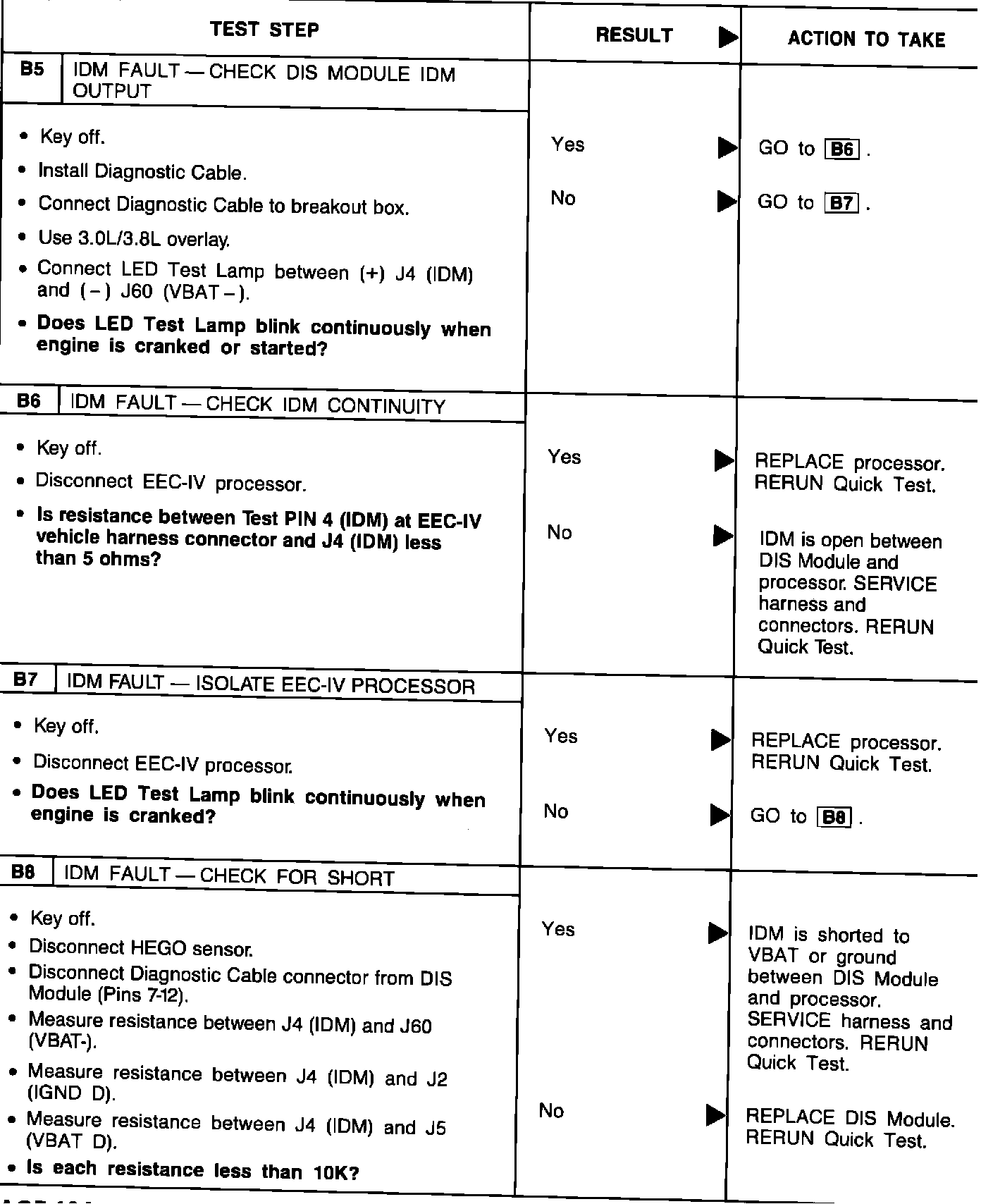

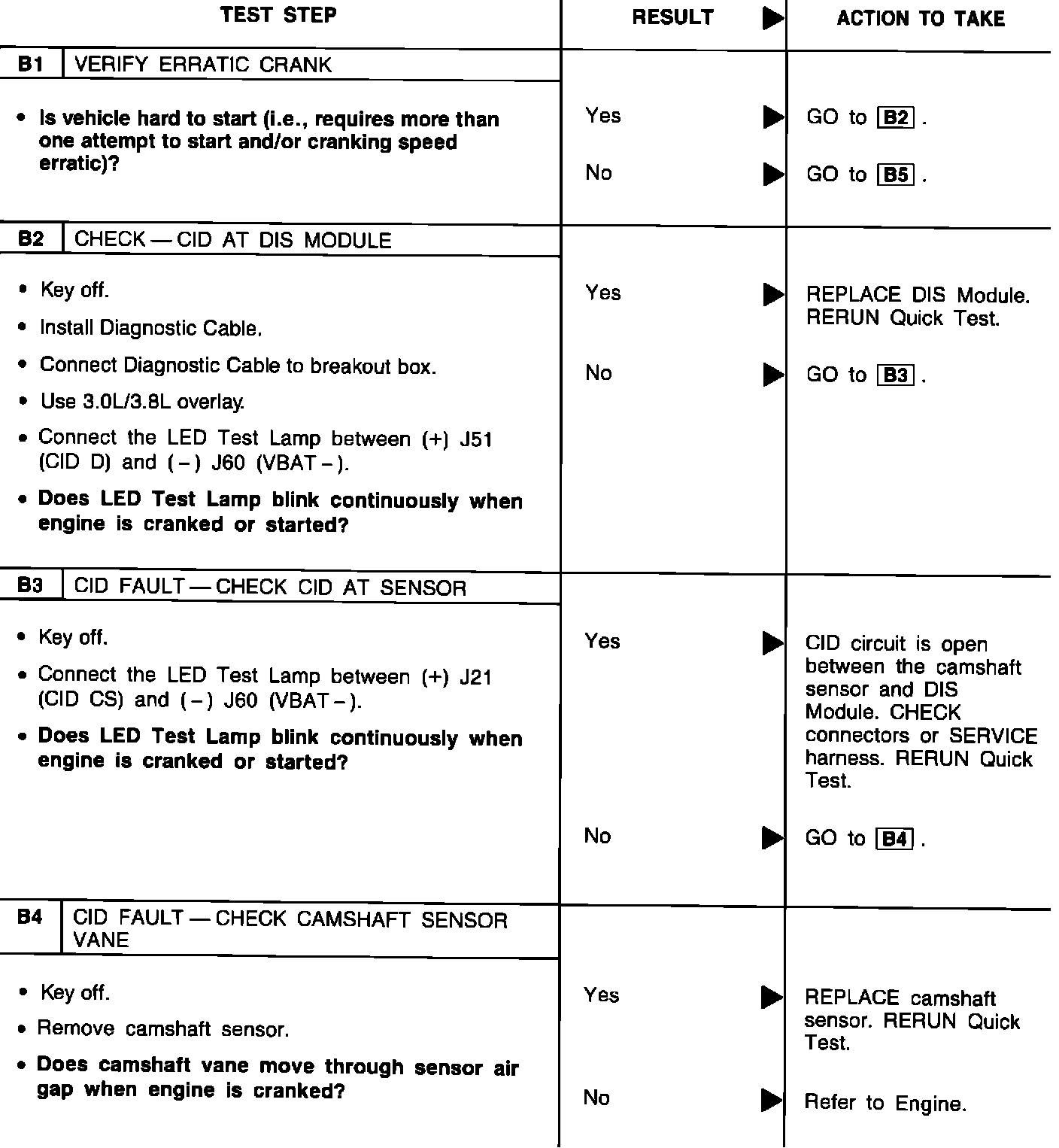

Diagnostic Test Charts:
Ignition Symptoms and Trouble Codes Index:
