Octane Shorting Bar - Manual Revision
>>
Engine RPM Sensor (Diesel) Pinpoint Test DI
Engine RPM Sensor (Diesel) Pinpoint Test DI
EEC-IV - Pinpoint Tests - All Vehicles 17-93
1989

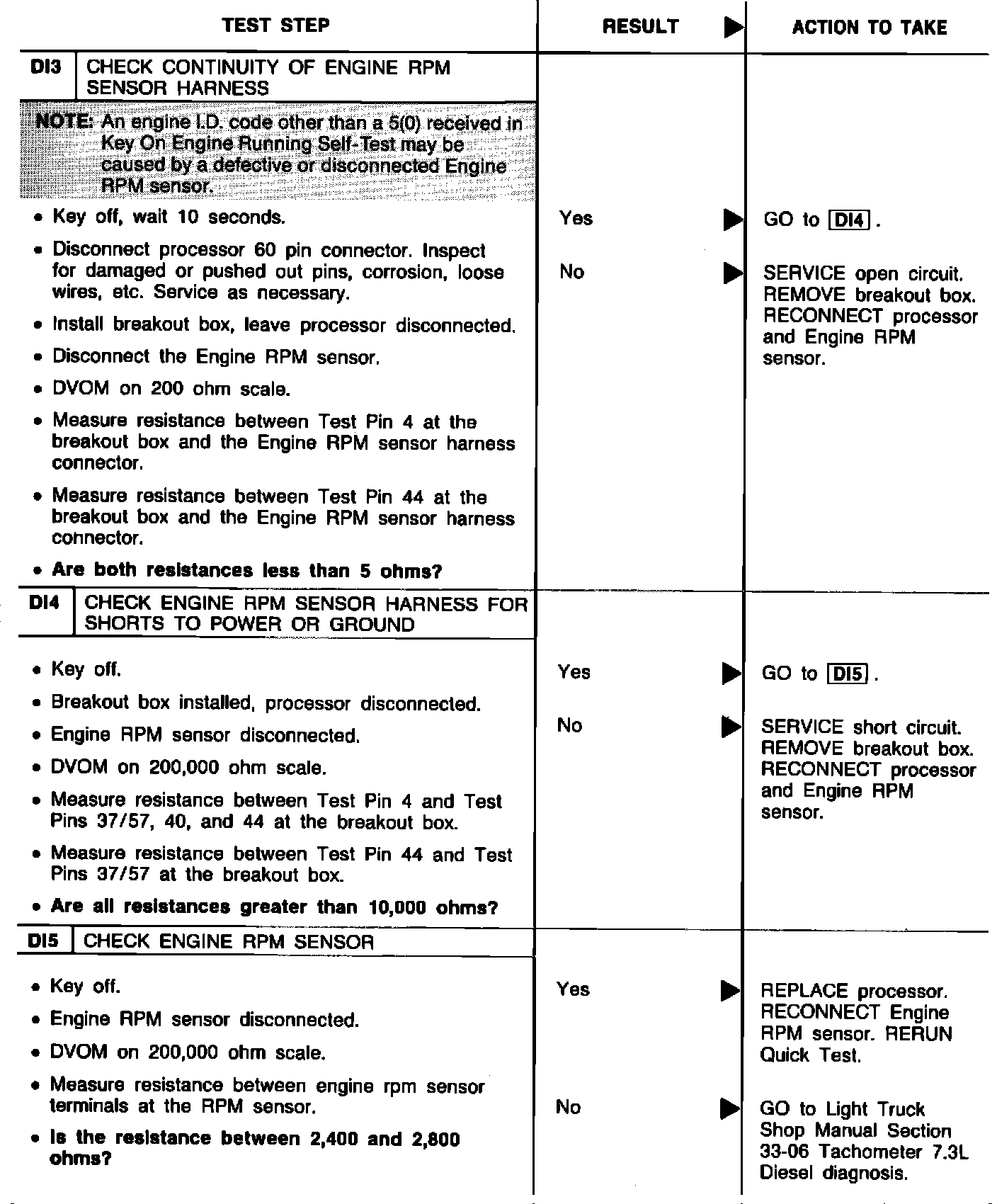

Engine RPM Sensor (Diesel)
Pinpoint Test DI
