Ignition/Erratic Diagnostic Monitor (IDM)


EEC-IV - Pinpoint Tests - All Vehicles 1989 17-309


Ignition/Erratic Pinpoint

N

Diagnostic Monitor (IDM) Test

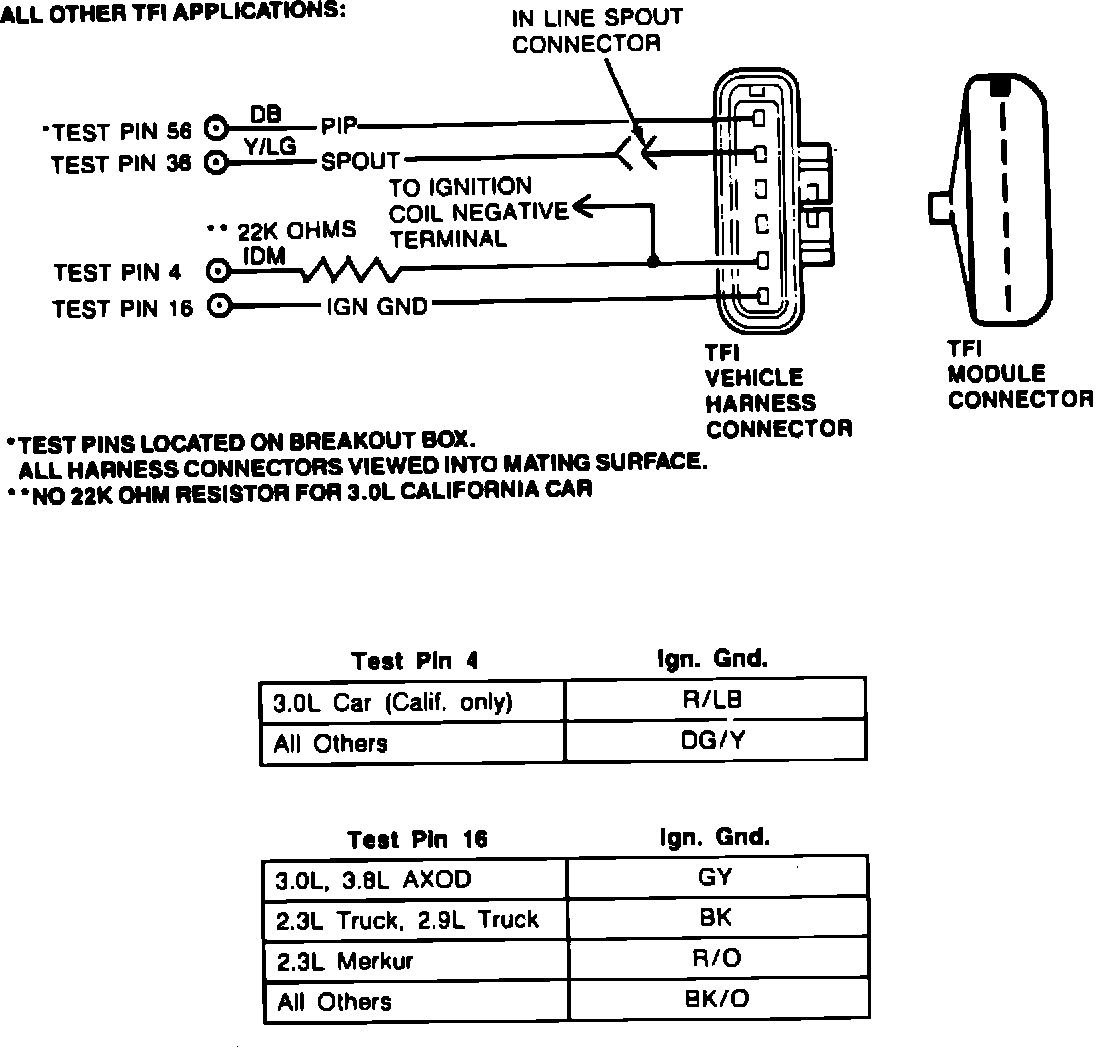

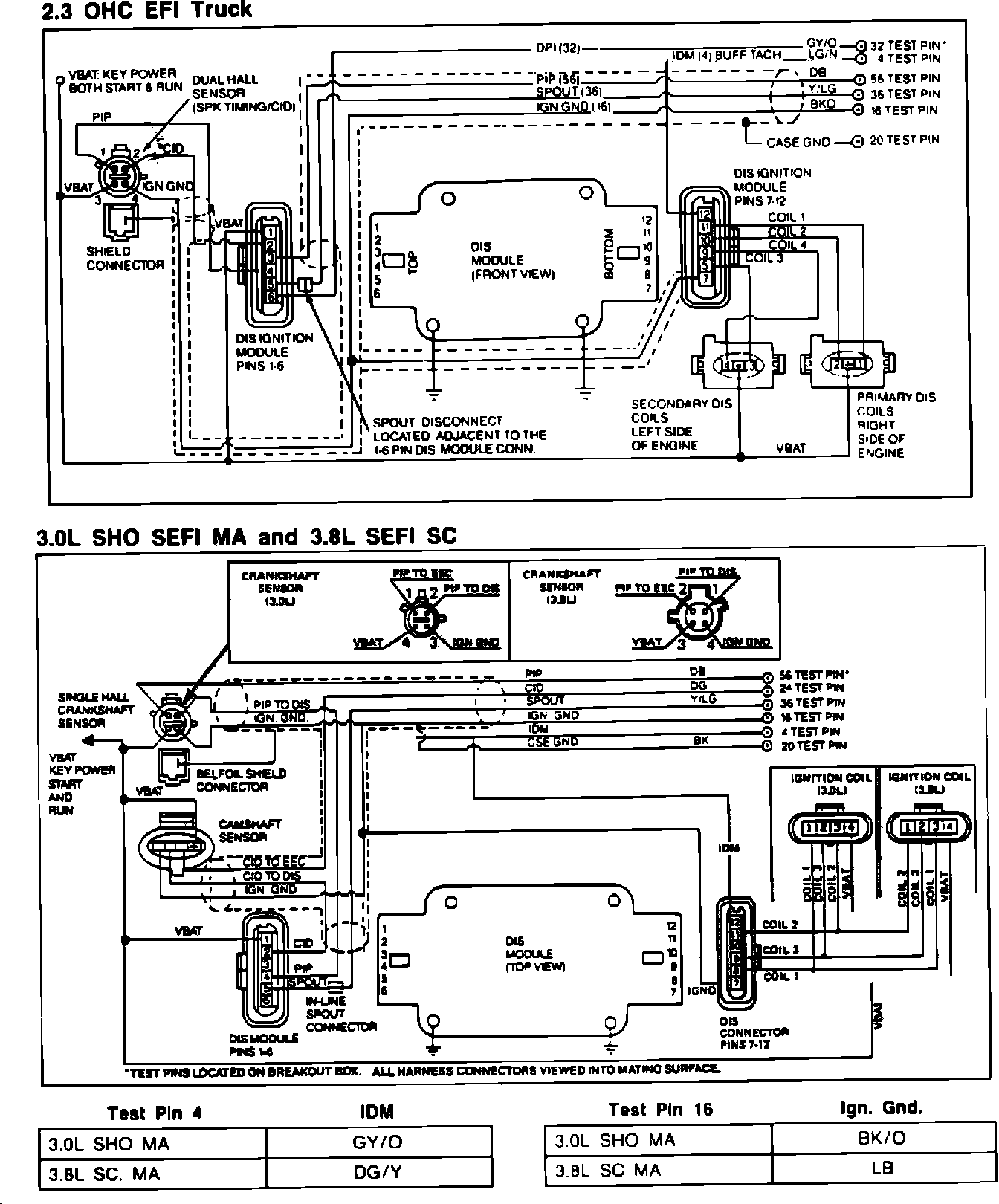

Pinpoint Test Schematic
17-310 1989 EEC-IV - Pinpoint Tests - All Vehicles


Ignition/Erratic Pinpoint

N

Diagnostic Monitor (IDM) Test
