EEC IV - Octane Adjust Shorting Bar Correction

Article No.
89-1-10

01/11/89

EEC IV - Octane Adjusting Shorting Bar - 2.3L EFI, 3.0L "SHO" And 3.8L
"Supercharged". Shop Manual Correction

FORD:
1989 TAURUS, THUNDERBIRD

LINCOLN-MERCURY:
1989 COUGAR

LIGHT TRUCK:
1989 RANGER

ISSUE:

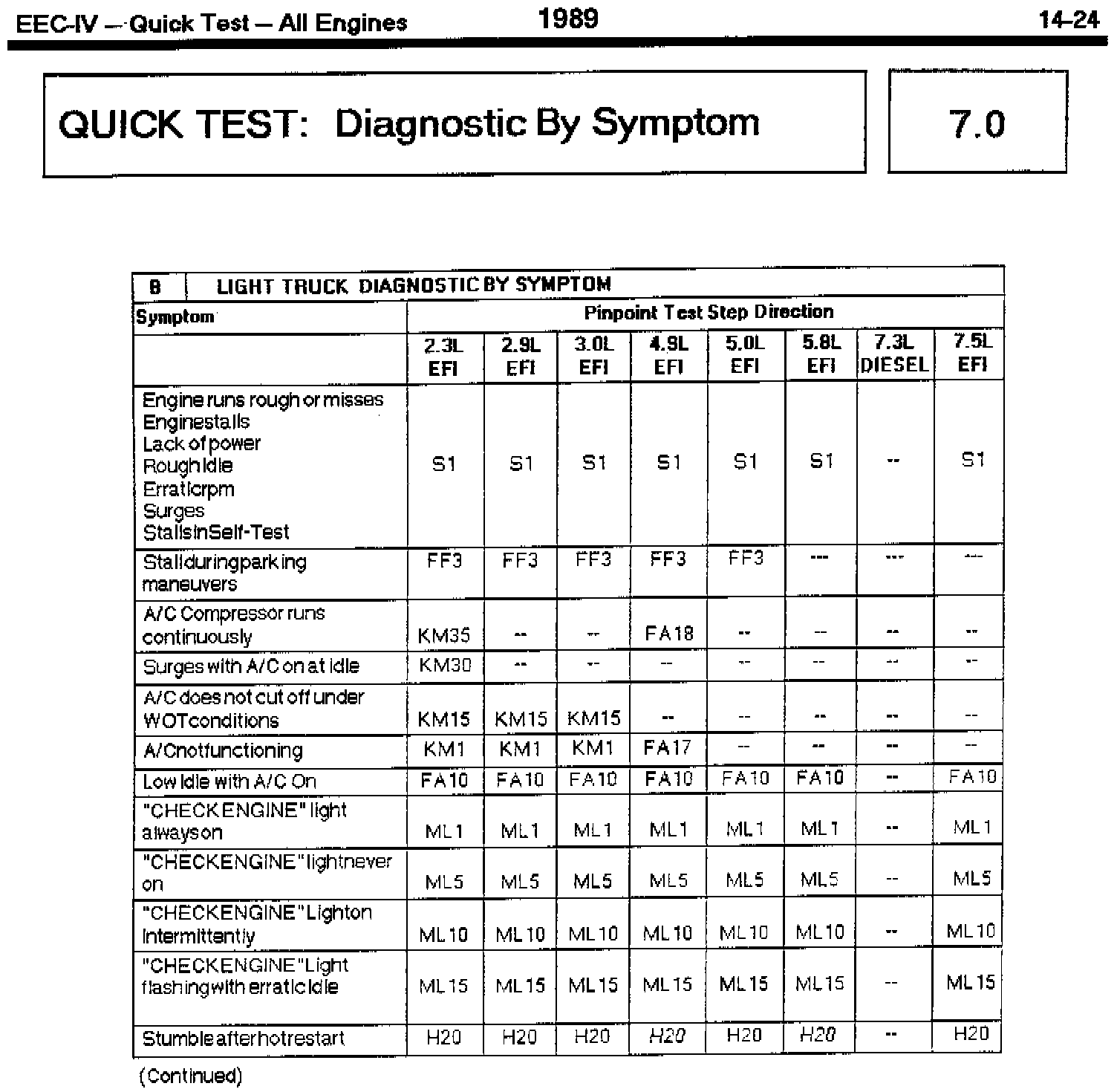

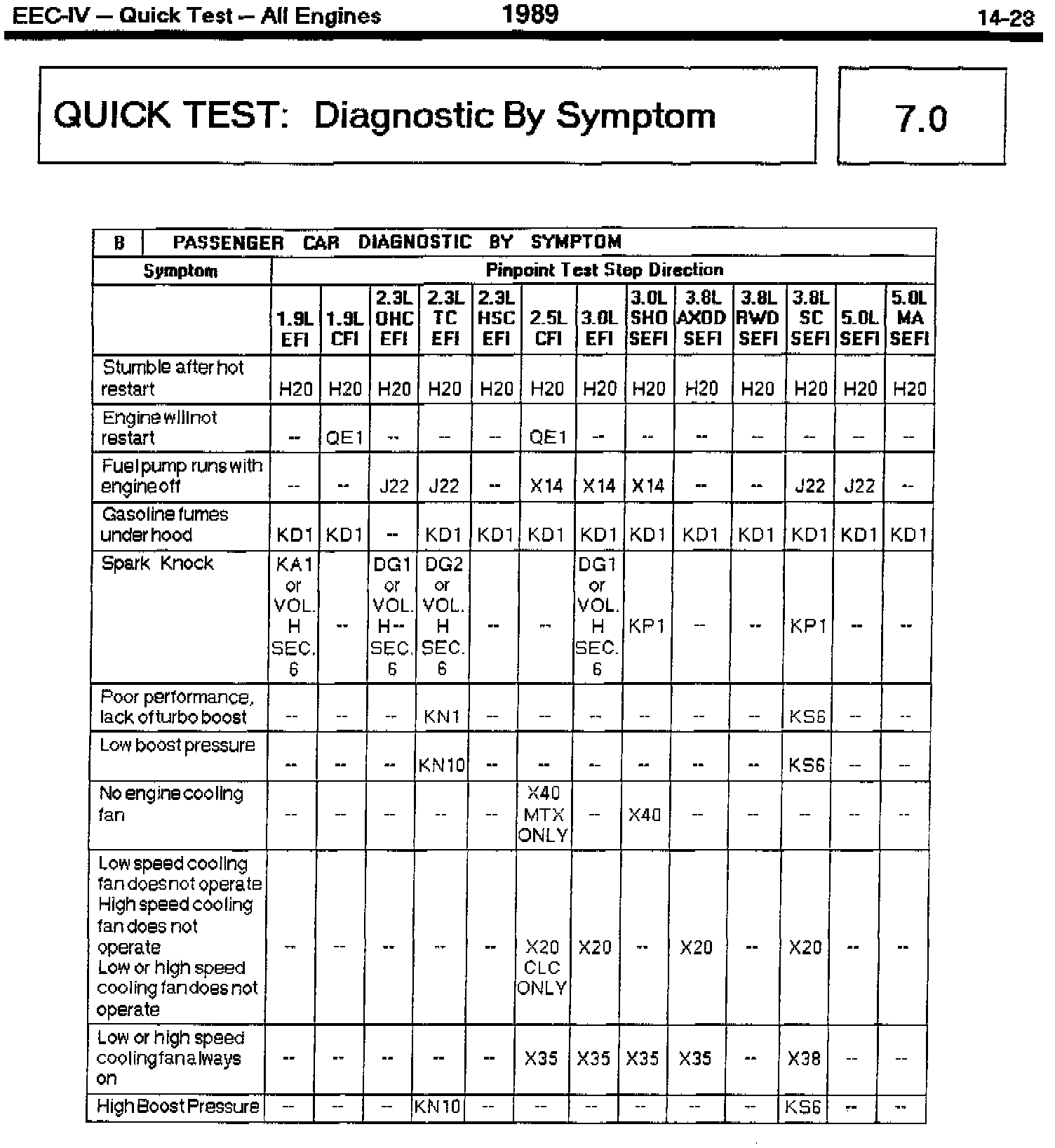

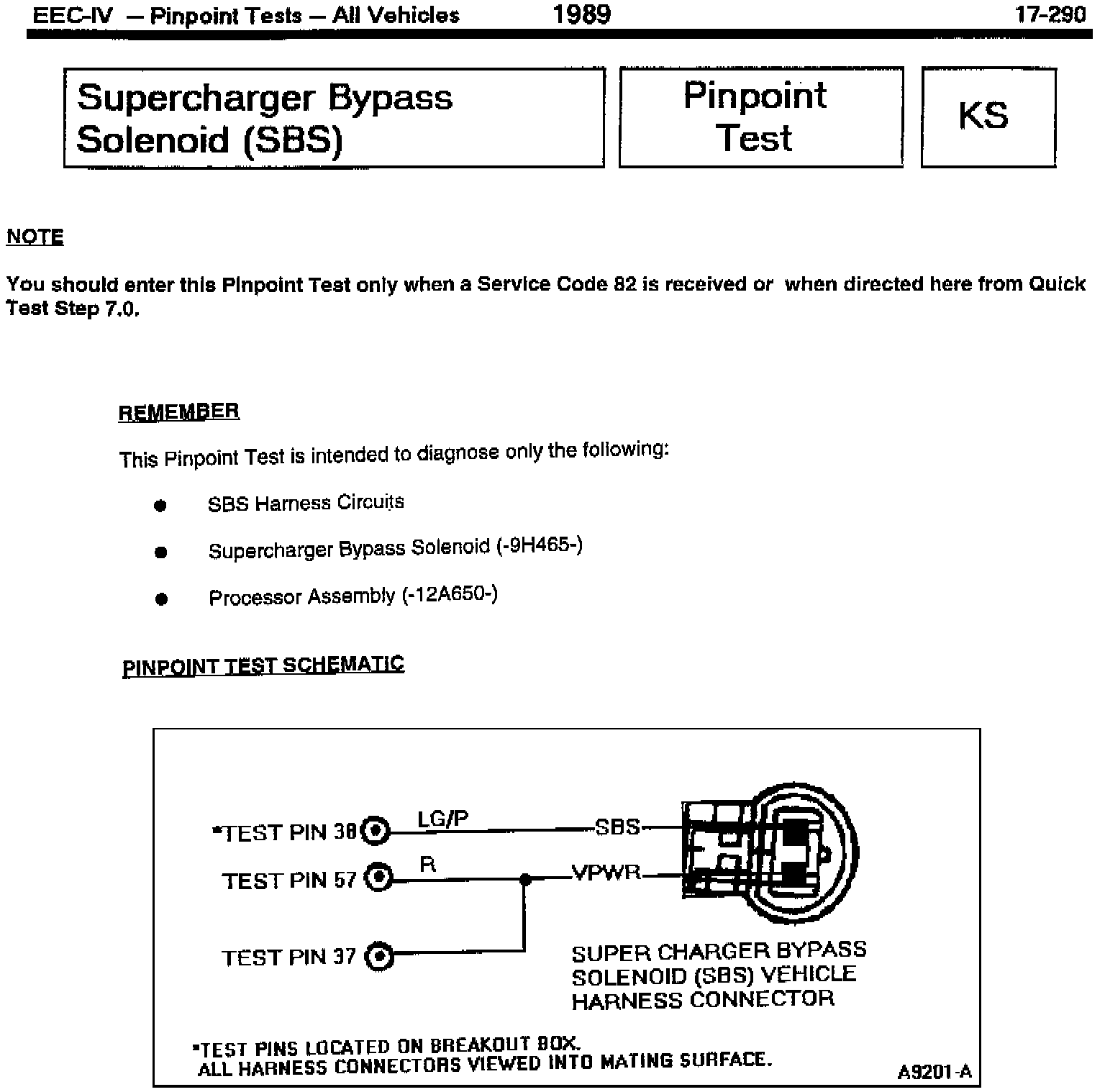

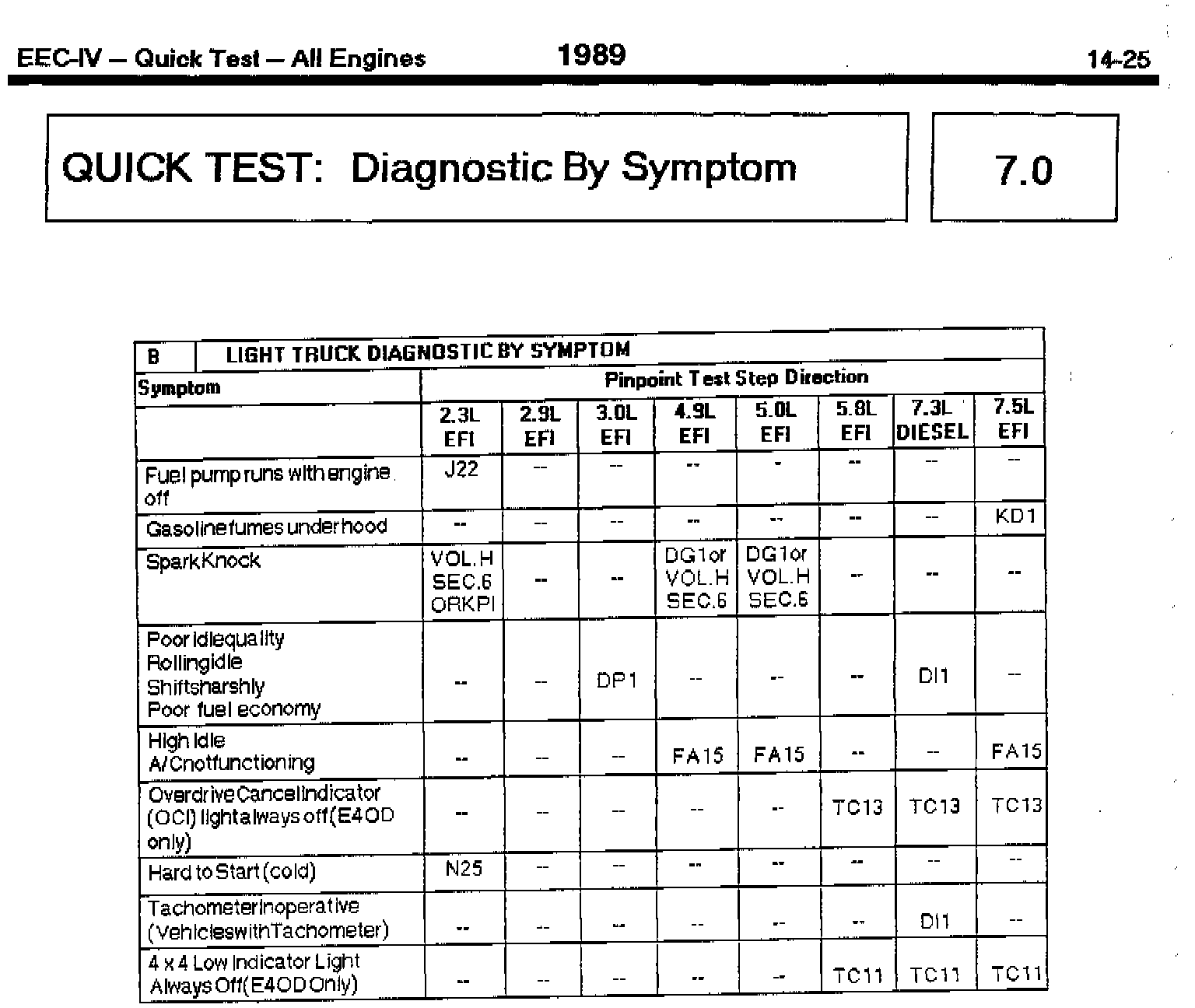

The octane adjust shorting bar diagnostic procedures are incorrect as published in the 1989 Engine/Emissions Diagnosis Manual, Volume H, Sections 14-23, 14-25 and 17-289. The affected vehicles are the 1989 Ranger 2.3L EFI, 1989 Taurus "SHO" 3.0L SEFI and 1989 Thunderbird "SC"/Cougar XR7 3.8L SEFI Supercharged.

ACTION:




















Use the information to service octane adjust shorting bar concerns. This information should be inserted into your 1989 Engine/Emissions Diagnosis Manual, Volume H, Sections 14-23, 14-25 and 17-289 for future reference.

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: INFORMATION ONLY

OASIS CODES: 680000
