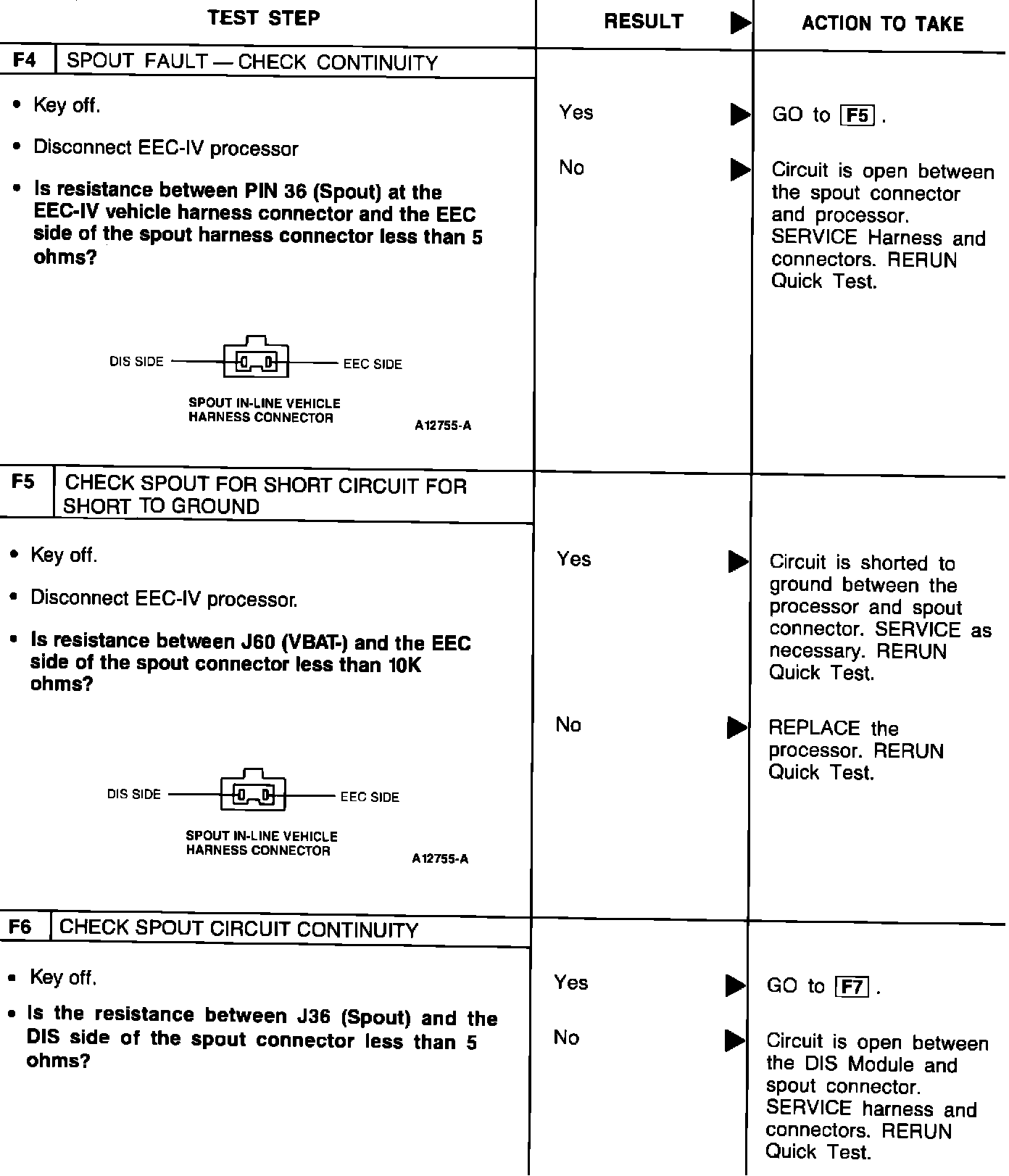

Pinpoint Test F4 --> F6





Ignition Systems, Timing Procedures and Diagnostics 13-113


2.3L EFI Truck (Dual Plug) DIS

Pinpoint

Engine Running Code 18/ F
No Codes and Lack of Power Test
