Autolamps/Delayed Exit - Manual Correction

89Ford12

AUTOLAMPS/DELAYED EXIT - VACUUM TROUBLESHOOTING MANUAL (EVTM) CORRECTION

Article No. 89-5A-15







FORD: 1989 THUNDERBIRD

LINCOLN-MERCURY: 1989 COUGAR

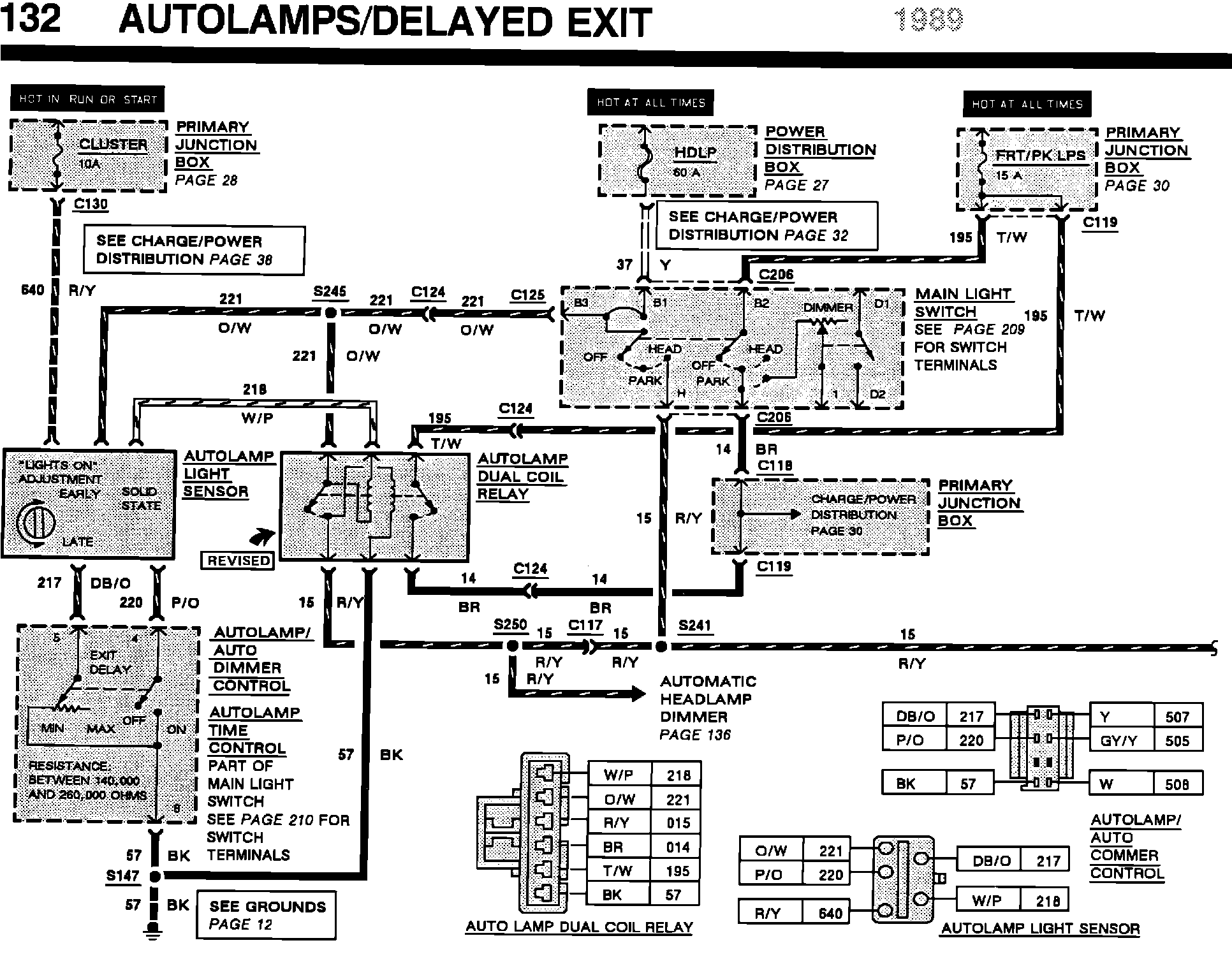

ISSUE: The internal schematic of the dual coil relay shown in the Autolamps/Delayed Exit wiring diagram on page 132 of the 1989 Thunderbird/Cougar EVTM is incorrect.

ACTION: If service is required, refer to this TSB. This information should be inserted into your 1989 Thunderbird/Cougar EVTM, page 132.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
OASIS CODES: 2800
