A/C - Service Replacement Kits
89ford23AIR CONDITIONING - SERVICE REPLACEMENT KITS
Article No. 89-17-13
FORD: 1989 THUNDERBIRD
LINCOLN-MERCURY: 1989 COUGAR
ISSUE: Service replacement kits for evaporator cores and evaporator cases, including case covers, are now available. An evaporator core cover must be used to seal the opening made in the top of the case when a core is replaced.
ACTION: If service is required, refer to the 1989 Thunderbird/Cougar Shop Manual, Section 36-45. Also use the following supplemental service procedure.
NOTE: WHENEVER THE EVAPORATOR CORE IS REPLACED, THE A/C ACCUMULATOR MUST ALSO BE REPLACED.
Figure 1:
1. Remove the evaporator assembly from the vehicle.

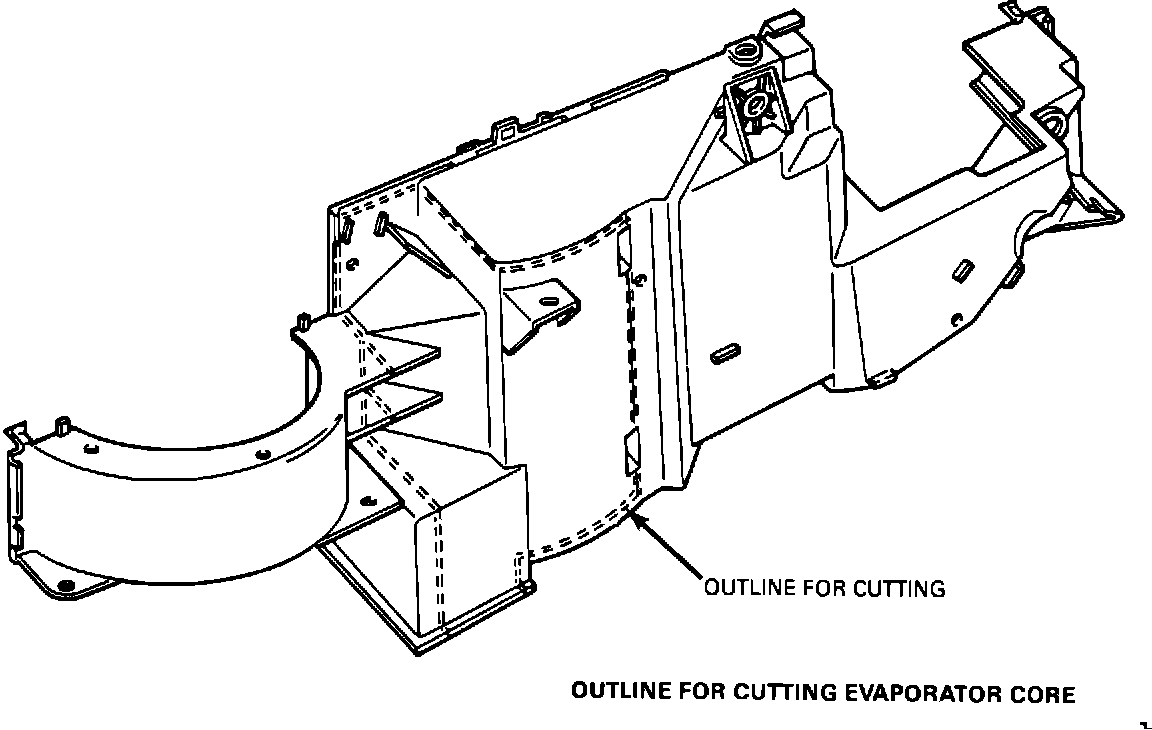

2. Cut the top out of the evaporator case. Use a small saw to cut between the dotted lines as shown in Figure 1. If a new evaporator case and cover kit is being installed, cut the top out of the new evaporator case by using the same method.
3. Remove the old evaporator core from the case.
Figure 2:
4. Remove all burrs from the sawed edges of the evaporator case.
5. Position the new cover on the case.
6. Hold the cover in place and drill five 3/16" (7.938 mm) diameter holes for the attaching screws.
7. Install the new evaporator core in the evaporator case. If a new evaporator case and cover kit is being installed, transfer all hardware (evaporator core, heater core, vacuum motors, etc.) from the old evaporator case to the new case.
8. Run a bead of caulking cord rope sealer (D6AZ-19560-A), or equivalent, around the sawed edges of the evaporator case for a tight seal between the cover and the case.

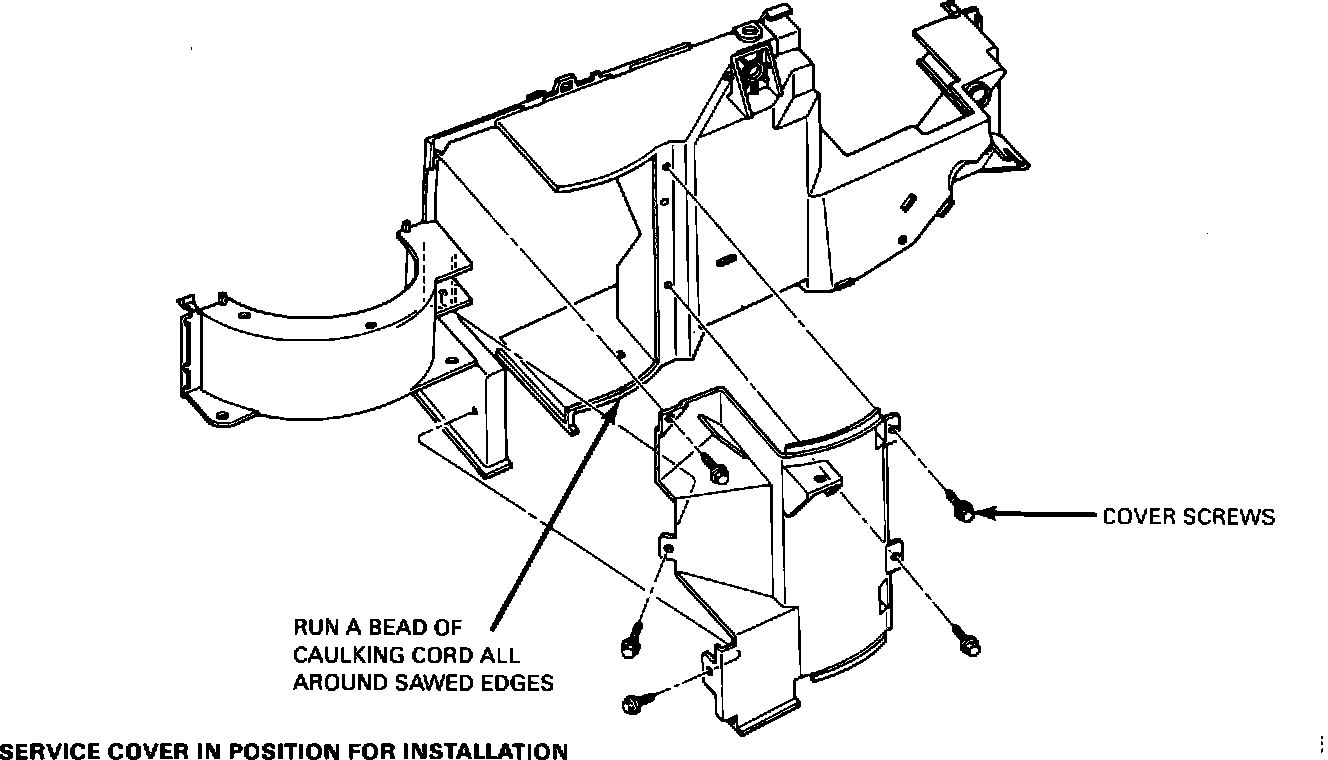

9. Install the service cover on the evaporator case as shown in Figure 2.
10. Tighten the five attaching screws.
11. Install the evaporator case in the vehicle.
PART NUMBER PART NAME CLASS
E9SZ-19860-B Evaporator Core And Cover Kit B
E9SZ-19850-B Evaporator Case And Cover Kit C
E9SZ-19B735-A Evaporator Cover B
D6AZ-19560-A Caulking Cord Rope Sealer - AG
Pkg. of 8
E9SZ-19C836-A Accumulator - 3.8L Base C
E9SZ-19C836-B Accumulator - 3.8L C
Supercharged
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2600, 2610, 2800
