Charging System

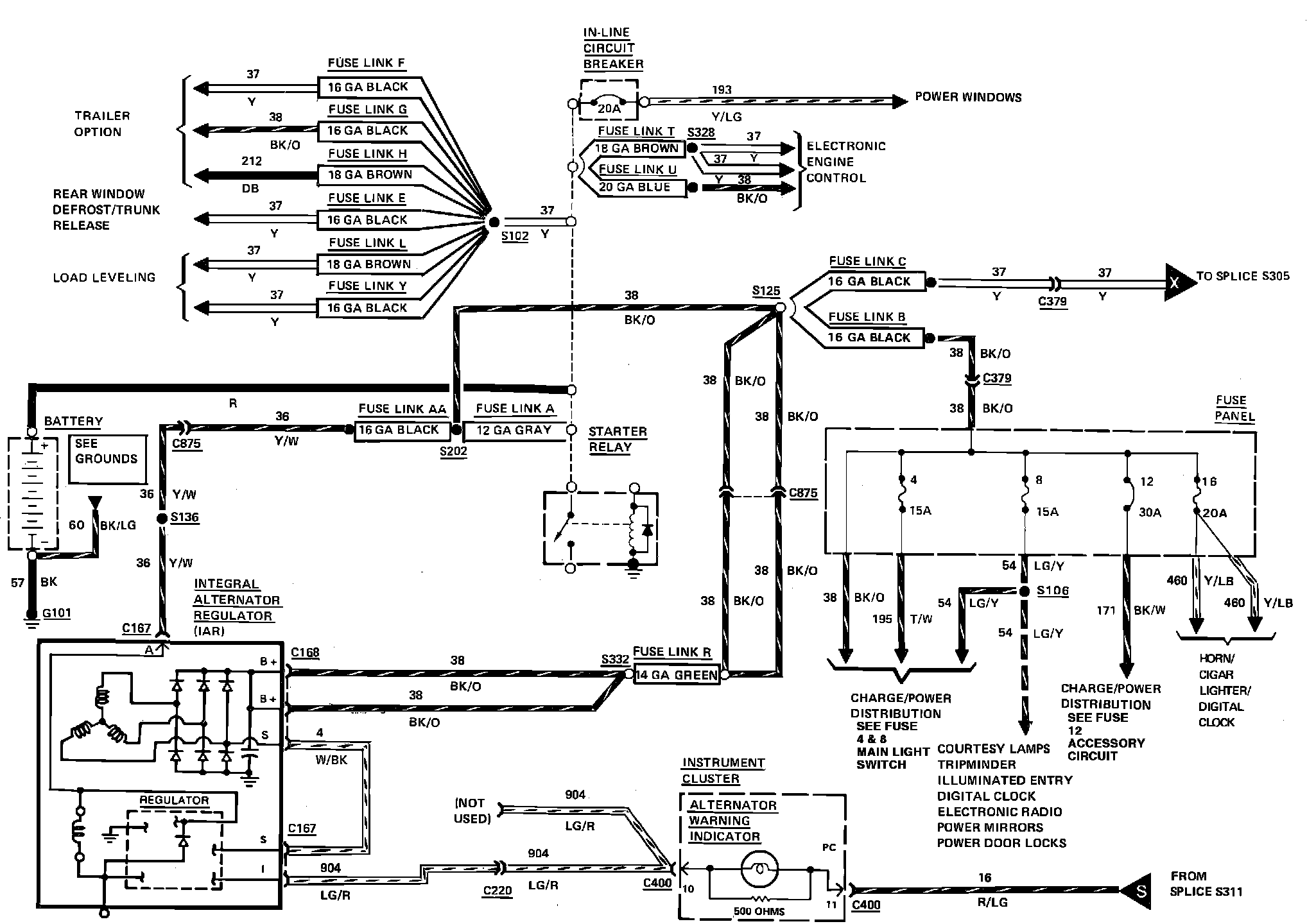

Charge & Power Distribution.With 65 Amp Alternator:



Charge & Power Distribution. All Alternators:
