Home >> Mercury >> 1989 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

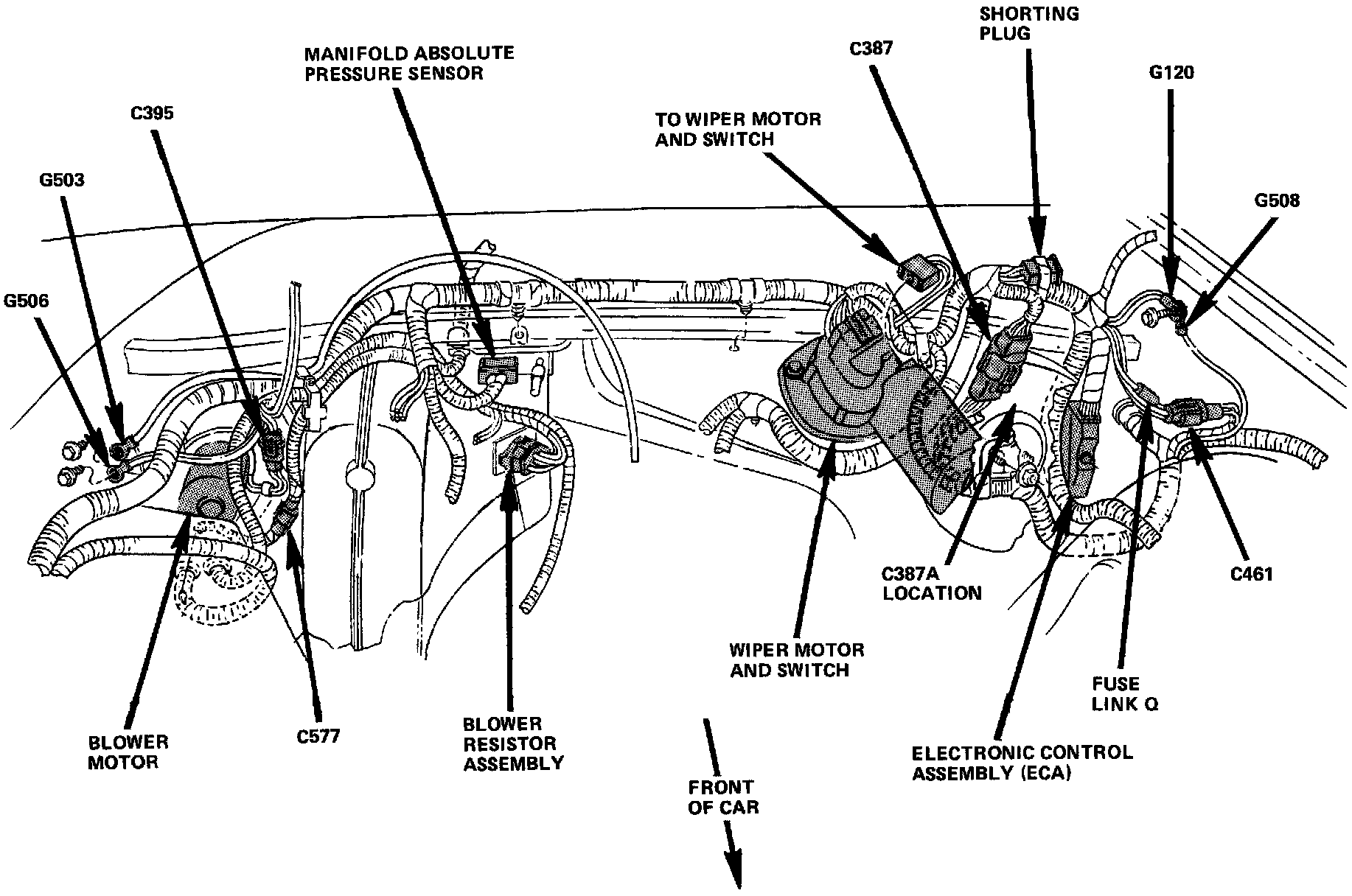

The Cruise Control Module or Electronic Control Assembly (ECA) is located in the Front Left Hand side of the Dash Panel.
